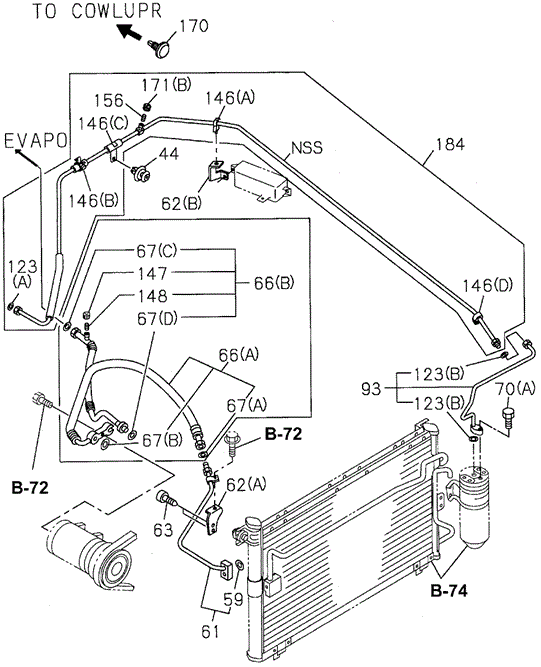

PIPE, AIR CONDITIONER in BODY / AIR CONDITIONING/A/C PIPING (DX) for 1996 Honda PASSPORT

PIPE, AIR CONDITIONER in BODY / AIR CONDITIONING/A/C PIPING (DX) for 1996 Honda PASSPORT #1
156
  • VALVE, PIPE - $5.42
184
  • PIPE, AIR CONDITIONER - $228.54
63
  • SCREW (6X14) - $1.07
148
  • VALVE, PIPE - $5.42
147
  • CAP, PIPE - $1.59
93
  • PIPE, RECEIVER TANK (R-134A) - $40.06
61
  • PIPE, FLEXIBLE HOSE - $76.06
170
  • PLUG, HOLE - $1.26
44
  • CLIP, FLEXIBLE HOSE (D6.8X12) - $1.29
59
  • GASKET (ID=10.8) - $0.67
  • GASKET, EVAPORATOR - $0.67
No. Part # Part # / Description Qty Req. List Price Price
44 8-94198-687-0 8-94198-687-0 / CLIP, FLEXIBLE HOSE (D6.8X12)

1 $1.82 $1.29
N/A 8-94481-717-0 8-94481-717-0 / GASKET (ID=10.8)

1 $0.95 $0.67
N/A 8-94481-717-0 8-94481-717-0 / GASKET, EVAPORATOR

1 $0.95 $0.67
61 8-97165-081-0 8-97165-081-0 / PIPE, FLEXIBLE HOSE

1 $107.43 $76.06
N/A 8-94462-279-2 8-94462-279-2 / BRACKET, PIPE HIGH PRESSURE

1 $6.08 $4.31
N/A 8-94462-279-2 8-94462-279-2 / BRKT PIPE HIGH PRES

1 $6.08 $4.31
N/A 8-94337-681-0 8-94337-681-0 / BRACKET, PIPE HIGH PRESSURE

1 $4.59 $3.26
63 9-09629-040-0 9-09629-040-0 / SCREW (6X14)

2 $1.52 $1.07
N/A 8-97086-212-4 8-97086-212-4 / HOSE, FLEXIBLE

1 $179.43 $127.04
N/A 8-97022-191-1 8-97022-191-1 / HOSE, FLEXIBLE

1 $178.26 $126.20
N/A 1-09623-515-0 1-09623-515-0 / GASKET, EVAP

1 $1.20 $0.85
N/A 8-94113-530-0 8-94113-530-0 / GASKET (ID=13.9)

1 $1.08 $0.77
N/A 8-94113-530-0 8-94113-530-0 / GASKET

1 $1.08 $0.77
N/A 1-09623-514-0 1-09623-514-0 / GASKET, FLANGE

1 $1.05 $0.74
N/A 8-94113-530-0 8-94113-530-0 / GASKET, PIPE AIR CONDITIONER

1 $1.08 $0.77
N/A 0-28080-625-0 0-28080-625-0 / BOLT (6X25)

1 $1.20 $0.85
93 8-97085-865-1 8-97085-865-1 / PIPE, RECEIVER TANK (R-134A)

1 $56.58 $40.06
N/A 8-94461-902-0 8-94461-902-0 / GASKET, RECEIVER PIPE (ID=6.07)

1 $0.82 $0.58
N/A 8-97064-672-0 8-97064-672-0 / CLIP, RECEIVER PIPE (ID=17) (T=1.6)(L=26.5)

1 $3.32 $2.35
N/A 8-94457-162-0 8-94457-162-0 / CLIP, RECEIVER PIPE (ID=7.5/5.4) (GRAY)

1 $1.20 $0.85
N/A 8-97087-079-0 8-97087-079-0 / CLIP, RECEIVER PIPE

1 $1.50 $1.06
N/A 8-97064-671-0 8-97064-671-0 / CLIP, RECEIVER PIPE (IN. D=17)(HIGH=13.9)

1 $1.82 $1.29
147 8-97113-884-0 8-97113-884-0 / CAP, PIPE

1 $2.25 $1.59
156 8-97094-695-0 8-97094-695-0 / VALVE, PIPE

1 $7.65 $5.42
170 8-94279-922-0 8-94279-922-0 / PLUG, HOLE

1 $1.78 $1.26
N/A 8-97113-883-0 8-97113-883-0 / CAP, PIPE

1 $3.83 $2.71
184 8-97085-866-1 8-97085-866-1 / PIPE, AIR CONDITIONER

1 $322.80 $228.54
