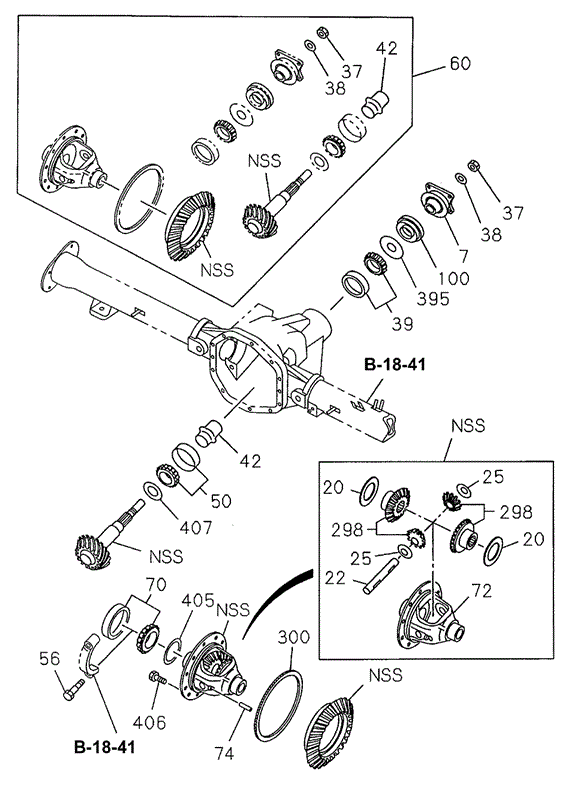

GEAR SET, FINAL DRIVE in CHASSIS/REAR FINAL DRIVE (2) for 1996 Honda PASSPORT

GEAR SET, FINAL DRIVE in CHASSIS/REAR FINAL DRIVE (2) for 1996 Honda PASSPORT #1
42
  • COLLAR, DIST COLLAPSIBLE - $7.42
20
  • WASHER, THRUST - $3.07
39
  • BEARING, FINAL PINION - $39.32
22
  • PIN, CROSS DIFFERENTIAL PINION - $18.76
  • PIN, CROSS DIFFERENTIAL PINION - $18.76
60
  • GEAR SET, FINAL DRIVE - $589.40
25
  • WASHER, THRUST PINION - $2.28
38
  • WASHER, PLAIN DRIVING PINION - $1.32
405
  • SHIM, DIFFERENTIAL SIDE BEARIN - $11.10
42
  • COLLAR, DIST COLLAPSIBLE - $7.42
407
  • SHIM, PINION FINAL DRIVE - $18.54
298
  • GEAR KIT, RR. DIFFERENTIAL AXLE - $139.87
74
  • PIN, LOCK - $1.20
38
  • WASHER, PLAIN DRIVING PINION - $1.32
72
  • CAGE ASSY., DIFFERENTIAL FINALDRIVE - $109.96
298
  • GEAR KIT, RR. DIFFERENTIAL AXLE - $139.87
70
  • BEARING, DIFFERENTIAL CAGE - $76.88
37
  • NUT, DRIVING PINION - $2.35
300
  • RING, EXCITER - $23.65
50
  • BEARING, FINAL PINION - $40.06
395
  • CUP, BEARING - $4.21
56
  • BOLT, BEARING CAP - $0.99
100
  • OIL SEAL, FINAL PINION - $14.29
25
  • WASHER, THRUST PINION - $2.28
37
  • NUT, DRIVING PINION - $2.35
7
  • FLANGE, FINAL PINION - $46.37
406
  • BOLT, FINAL DRIVE GEAR - $3.34
20
  • WASHER, THRUST - $3.07
No. Part # Part # / Description Qty Req. List Price Price
7 8-97084-473-0 8-97084-473-0 / FLANGE, FINAL PINION

1 $65.50 $46.37
20 8-97084-418-0 8-97084-418-0 / WASHER, THRUST

2 $4.33 $3.07
22 8-97200-973-0 8-97200-973-0 / PIN, CROSS DIFFERENTIAL PINION

1 $26.50 $18.76
22 8-97200-973-0 8-97200-973-0 / PIN, CROSS DIFFERENTIAL PINION

1 $26.50 $18.76
25 8-97084-419-0 8-97084-419-0 / WASHER, THRUST PINION

2 $3.22 $2.28
37 8-97084-445-0 8-97084-445-0 / NUT, DRIVING PINION

1 $3.32 $2.35
38 8-97084-446-0 8-97084-446-0 / WASHER, PLAIN DRIVING PINION

1 $1.87 $1.32
39 8-97084-468-0 8-97084-468-0 / BEARING, FINAL PINION

1 $55.53 $39.32
42 8-97084-447-0 8-97084-447-0 / COLLAR, DIST COLLAPSIBLE

1 $10.48 $7.42
50 8-97084-467-0 8-97084-467-0 / BEARING, FINAL PINION

1 $56.58 $40.06
56 8-97084-397-0 8-97084-397-0 / BOLT, BEARING CAP

4 $1.40 $0.99
60 8-97134-270-0 8-97134-270-0 / GEAR SET, FINAL DRIVE

1 $832.48 $589.40
70 8-97084-429-0 8-97084-429-0 / BEARING, DIFFERENTIAL CAGE

2 $108.58 $76.88
72 8-97084-414-0 8-97084-414-0 / CAGE ASSY., DIFFERENTIAL FINALDRIVE

1 $155.32 $109.96
74 8-97084-421-0 8-97084-421-0 / PIN, LOCK

1 $1.70 $1.20
100 8-97084-466-0 8-97084-466-0 / OIL SEAL, FINAL PINION

1 $20.18 $14.29
298 8-97084-415-0 8-97084-415-0 / GEAR KIT, RR. DIFFERENTIAL AXLE

1 $197.55 $139.87
300 8-97084-474-0 8-97084-474-0 / RING, EXCITER

1 $33.40 $23.65
395 8-97084-465-0 8-97084-465-0 / CUP, BEARING

1 $5.95 $4.21
405 8-97084-424-0 8-97084-424-0 / SHIM, DIFFERENTIAL SIDE BEARIN

1 $15.68 $11.10
406 8-97084-422-0 8-97084-422-0 / BOLT, FINAL DRIVE GEAR

1 $4.72 $3.34
407 8-97084-453-0 8-97084-453-0 / SHIM, PINION FINAL DRIVE

1 $26.18 $18.54
