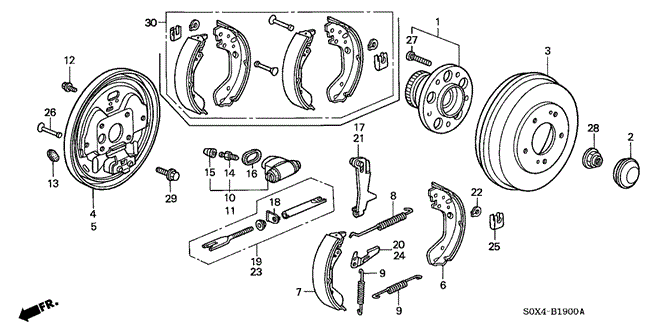

PLATE, L. RR. BRAKE BACK in CHASSIS/REAR BRAKE (DRUM) (KA)(KC) for 2000 Honda ODYSSEY

PLATE, L. RR. BRAKE BACK in CHASSIS/REAR BRAKE (DRUM) (KA)(KC) for 2000 Honda ODYSSEY #1
10
  • CYLINDER ASSY., R. RR. WHEEL - $26.64
27
  • BOLT, WHEEL (ROCKNEL FASTENER) - $0.96
  • BOLT, WHEEL (SAGA) - $0.96
15
  • CAP, BLEEDER SCREW - $7.10
5
  • PLATE, L. RR. BRAKE BACK - $197.74
18
  • CLIP, THERMAL - $3.03
23
  • ADJUSTER ASSY., L. RR. BRAKE - $22.60
14
  • SCREW, BLEEDER - $9.00
24
  • LEVER, L. ADJUSTER - $41.69
21
  • LEVER, L. PARKING BRAKE - $6.61
2
  • CAP, HUB UNIT - $3.30
12
  • BOLT, FLANGE (6MM) - $1.97
19
  • ADJUSTER ASSY., R. RR. BRAKE - $12.61
4
  • PLATE, R. RR. BRAKE BACK - $197.74
30
  • SHOE SET, RR. BRAKE - $78.91
11
  • CYLINDER ASSY., L. RR. WHEEL - $26.64
13
  • PLUG, INSPECTION - $1.68
17
  • LEVER, R. PARKING BRAKE - $46.00
29
  • BOLT, FLANGE (10X18) - $0.83
28
  • NUT, SPINDLE (24MM) - $8.85
9
  • SPRING B, BRAKE - $1.98
9
  • SPRING B, BRAKE - $1.98
8
  • SPRING A, BRAKE - $2.04
20
  • LEVER, R. ADJUSTER - $41.69
3
  • DRUM,REAR BRAKE - $92.56
1
  • BEARING ASSY., RR. HUB UNIT - $153.25
16
  • SEAL - $2.42
No. Part # Part # / Description Qty Req. List Price Price
1 42200-S0X-A52 42200-S0X-A52 / BEARING ASSY., RR. HUB UNIT

2 $216.45 $153.25
2 42326-SLJ-000 42326-SLJ-000 / CAP, HUB UNIT

2 $4.67 $3.30
3 42610-S0X-305 42610-S0X-305 / DRUM,REAR BRAKE

2 $130.73 $92.56
4 43110-S0X-013 43110-S0X-013 / PLATE, R. RR. BRAKE BACK

1 $279.30 $197.74
5 43120-S0X-013 43120-S0X-013 / PLATE, L. RR. BRAKE BACK

1 $279.30 $197.74
8 43171-S0X-003 43171-S0X-003 / SPRING A, BRAKE

2 $2.88 $2.04
9 43172-S0X-003 43172-S0X-003 / SPRING B, BRAKE

4 $2.80 $1.98
10 43300-S0X-003 43300-S0X-003 / CYLINDER ASSY., R. RR. WHEEL

1 $37.63 $26.64
11 43301-S0X-003 43301-S0X-003 / CYLINDER ASSY., L. RR. WHEEL

1 $37.63 $26.64
12 43305-S0X-003 43305-S0X-003 / BOLT, FLANGE (6MM)

4 $2.78 $1.97
13 43345-S0X-003 43345-S0X-003 / PLUG, INSPECTION

4 $2.37 $1.68
14 43352-S0X-A01 43352-S0X-A01 / SCREW, BLEEDER

2 $12.72 $9.00
15 43353-S0X-003 43353-S0X-003 / CAP, BLEEDER SCREW

2 $10.03 $7.10
16 43354-S0X-003 43354-S0X-003 / SEAL

2 $3.42 $2.42
17 43360-S0X-003 43360-S0X-003 / LEVER, R. PARKING BRAKE

1 $64.97 $46.00
18 43365-S0X-003 43365-S0X-003 / CLIP, THERMAL

2 $4.28 $3.03
19 43367-S0X-003 43367-S0X-003 / ADJUSTER ASSY., R. RR. BRAKE

1 $17.82 $12.61
20 43368-S0X-003 43368-S0X-003 / LEVER, R. ADJUSTER

1 $58.88 $41.69
21 43370-S0X-003 43370-S0X-003 / LEVER, L. PARKING BRAKE

1 $9.33 $6.61
23 43377-S0X-003 43377-S0X-003 / ADJUSTER ASSY., L. RR. BRAKE

1 $31.92 $22.60
24 43378-S0X-003 43378-S0X-003 / LEVER, L. ADJUSTER

1 $58.88 $41.69
27 90113-S84-901 90113-S84-901 / BOLT, WHEEL (ROCKNEL FASTENER)

10 $1.35 $0.96
27 90113-S84-901 90113-S84-901 / BOLT, WHEEL (SAGA)

10 $1.35 $0.96
28 90305-S0X-003 90305-S0X-003 / NUT, SPINDLE (24MM)

2 $12.50 $8.85
29 91770-S0X-000 91770-S0X-000 / BOLT, FLANGE (10X18)

8 $1.17 $0.83
30 43053-S0X-000 43053-S0X-000 / SHOE SET, RR. BRAKE

1 $111.45 $78.91
