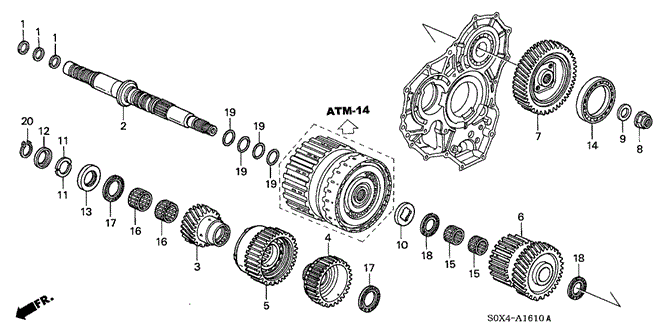

TRANSMISSION - AUTOMATIC/AT SECONDARY SHAFT (5AT) for 2002 Honda ODYSSEY

Select AT SECONDARY SHAFT (5AT) Part

2002 Honda ODYSSEY

Change vehicle

No. Part # Part # / Description List Price Price
1 22816-P6H-003 22816-P6H-003 / RING, SEAL (35MM)

$9.35 $6.62
2 23230-RAY-010 23230-RAY-010 / SHAFT, SECONDARY

$194.38 $137.62
3 23411-P7W-000 23411-P7W-000 / GEAR, SECONDARY SHAFT LOW

$108.98 $77.16
4 23418-RAY-000 23418-RAY-000 / HUB, CLUTCH (L-H)

$87.45 $61.91
5 23420-RAY-005 23420-RAY-005 / HUB, SECONDARY SHAFT LOW CLUTCH

$161.37 $114.25
6 23431-RAY-A00 23431-RAY-A00 / GEAR, SECONDARY SHAFT SECOND

$160.88 $113.91
7 23495-P7W-000 23495-P7W-000 / GEAR, SECONDARY IDLE

$94.35 $66.80
8 90203-P0Z-000 90203-P0Z-000 / NUT, FLANGE (24MM) (LEFT HAND THREAD)

$12.20 $8.64
9 90402-P0Z-000 90402-P0Z-000 / WASHER, SPRING (24MM)

$11.12 $7.87
10 90412-P0Z-000 90412-P0Z-000 / WASHER, THRUST (37X55X5.20)

$16.55 $11.72
10 90406-P0Z-000 90406-P0Z-000 / WASHER, THRUST (37X55X4.90)

$16.55 $11.72
10 90411-P0Z-000 90411-P0Z-000 / WASHER, THRUST (37X55X5.15)

$16.55 $11.72
10 90409-P0Z-000 90409-P0Z-000 / WASHER, THRUST (37X55X5.05)

$16.55 $11.72
10 90410-P0Z-000 90410-P0Z-000 / WASHER, THRUST (37X55X5.10)

$16.55 $11.72
10 90407-P0Z-000 90407-P0Z-000 / WASHER, THRUST (37X55X4.95)

$16.55 $11.72
10 90408-P0Z-000 90408-P0Z-000 / WASHER, THRUST (37X55X5.00)

$16.55 $11.72
11 90431-P0Z-000 90431-P0Z-000 / COTTER (32MM)

$3.70 $2.62
12 90432-P0Z-000 90432-P0Z-000 / RETAINER, COTTER

$3.60 $2.55
13 90504-RAY-A00 90504-RAY-A00 / WASHER, SPLINE (38X56.5X6.95)

$18.00 $12.74
13 90506-P0Z-000 90506-P0Z-000 / WASHER, SPLINE (38X56.5X7.05)

$18.00 $12.74
13 90502-P0Z-000 90502-P0Z-000 / WASHER, SPLINE (38X56.5X6.85)

$18.00 $12.74
13 90507-P0Z-000 90507-P0Z-000 / WASHER, SPLINE (38X56.5X7.10)

$18.00 $12.74
13 90505-P0Z-000 90505-P0Z-000 / WASHER, SPLINE (38X56.5X7.00)

$18.00 $12.74
13 90503-RAY-A00 90503-RAY-A00 / WASHER, SPLINE (38X56.5X6.90)

$18.00 $12.74
14 91005-P7Z-003 91005-P7Z-003 / BEARING, BALL (65X88.5X10)

$79.23 $56.10
15 91011-P7W-003 91011-P7W-003 / BEARING, NEEDLE (34X40X20)

$10.13 $7.17
16 91012-P7W-003 91012-P7W-003 / BEARING, NEEDLE (38X44X20)

$12.67 $8.97
17 91019-P7Z-003 91019-P7Z-003 / BEARING, THRUST NEEDLE (38X57X2.5)

$14.63 $10.36
18 91023-P7T-013 91023-P7T-013 / BEARING, THRUST NEEDLE (34X55.5X2.5)

$13.18 $9.33
19 91316-PR9-003 91316-PR9-003 / O-RING (33X1.9) (ARAI)

$2.37 $1.68
20 94510-35000 94510-35000 / CIRCLIP (OUTER) (35MM)

$1.12 $0.79
