CHASSIS/REAR DIFFERENTIAL (1) for 2003 Honda PILOT

Select REAR DIFFERENTIAL (1) Part

2003 Honda PILOT

Change vehicle

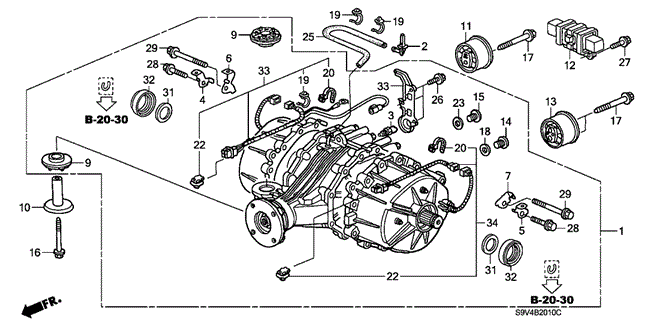

CHASSIS/REAR DIFFERENTIAL (1) for 2003 Honda PILOT #1
No. Part # Part # / Description List Price Price
1 41200-PGJ-315 41200-PGJ-315 / CARRIER ASSY., RR. DIFFERENTIAL

$3,072.07 $2,175.02
2 41935-PGJ-003 41935-PGJ-003 / JOINT, BREATHER TUBE

$6.37 $4.51
3 48160-PGJ-003 48160-PGJ-003 / SENSOR, OIL TEMPERATURE

$50.52 $35.77
4 48321-PGJ-020 48321-PGJ-020 / STAY A, RR. DIFFERENTIAL CABLE

$4.33 $3.07
5 48322-PGJ-020 48322-PGJ-020 / STAY B, RR. DIFFERENTIAL CABLE

$4.33 $3.07
6 48323-PGJ-000 48323-PGJ-000 / STAY C, RR. DIFFERENTIAL CABLE

$4.33 $3.07
7 48324-PGJ-000 48324-PGJ-000 / STAY D, RR. DIFFERENTIAL CABLE

$4.33 $3.07
9 50712-S3V-A01 50712-S3V-A01 / RUBBER A, RR. DIFFERENTIAL INSULATOR

$9.12 $6.45
10 50713-S3V-A01 50713-S3V-A01 / STOPPER A, RR. DIFFERENTIAL MOUNTING

$12.08 $8.56
11 50721-S3V-A01 50721-S3V-A01 / RUBBER B, RR. DIFFERENTIAL INSULATOR

$48.50 $34.34
12 50726-S9V-A01 50726-S9V-A01 / DAMPER, RR. DIFFERENTIAL MASS

$44.08 $31.21
13 50728-S3V-A01 50728-S3V-A01 / RUBBER C, RR. DIFFERENTIAL INSULATOR

$39.48 $27.95
14 90081-PVH-003 90081-PVH-003 / BOLT, PLUG (18MM)

$9.77 $6.91
15 90081-PWT-000 90081-PWT-000 / BOLT, DRAIN PLUG (20MM)

$10.13 $7.17
16 90161-S3V-A01 90161-S3V-A01 / BOLT, FLANGE (10X107)

$1.82 $1.29
17 90162-S9V-A00 90162-S9V-A00 / BOLT, FLANGE (14X92)

$2.10 $1.49
18 90471-PX4-000 90471-PX4-000 / WASHER, DRAIN PLUG (18MM)

$2.42 $1.71
19 91507-P01-003 91507-P01-003 / CLIP B, HARNESS BAND (129.4MM)(DARK BROWN)

$4.05 $2.87
20 91558-ST5-003 91558-ST5-003 / CLIP, HARNESS BAND (135MM) (7MM HOLE) (NATURAL)

$4.27 $3.02
22 91565-S0X-003 91565-S0X-003 / CLIP, CONNECTOR (DARK GREEN)

$2.10 $1.49
23 94109-20000 94109-20000 / WASHER, DRAIN PLUG (20MM)

$0.77 $0.54
25 95005-45001-20M 95005-45001-20M / BULK HOSE, VACUUM (4.5X1000)

$23.08 $16.34
26 95701-06016-00 95701-06016-00 / BOLT, FLANGE (6X16)

$0.92 $0.65
27 95701-08016-08 95701-08016-08 / BOLT, FLANGE (8X16)

$1.02 $0.72
28 95701-08035-00 95701-08035-00 / BOLT, FLANGE (8X35)

$1.33 $0.94
29 95701-08075-00 95701-08075-00 / BOLT, FLANGE (8X75)

$1.62 $1.14
31 48815-PVH-004 48815-PVH-004 / WASHER, THRUST

$4.92 $3.48
32 91206-PGJ-013 91206-PGJ-013 / DUST SEAL (40X55X7.5)

$14.95 $10.58
33 48320-PGJ-020 48320-PGJ-020 / SUB-CABLE ASSY., R. RR. DIFFERENTIAL

$46.68 $33.05
34 48330-PGJ-000 48330-PGJ-000 / SUB-CABLE ASSY., L. RR. DIFFERENTIAL

$21.42 $15.16
