WIRE, CONTROL in CHASSIS/SELECT LEVER for 2005 Honda CR-V

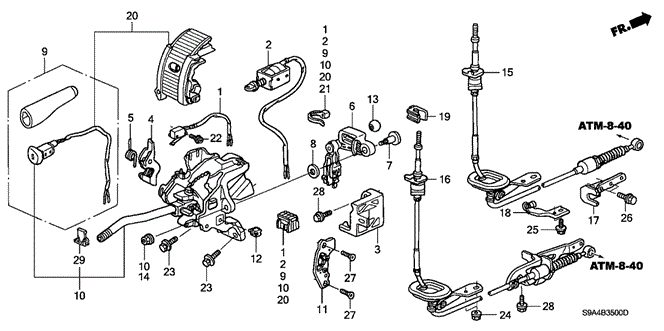

WIRE, CONTROL in CHASSIS/SELECT LEVER for 2005 Honda CR-V #1
1
  • SWITCH ASSY., PARKING - $23.67
10
  • BRACKET SET, SELECT LEVER - $138.41
23
  • BOLT-WASHER (8X25) - $0.17
16
  • WIRE, CONTROL - $152.53
11
  • CHECKER SET, SELECT - $24.06
21
  • STRAP, CABLE - $1.71
20
  • ESCUTCHEON SET, CONSOLE - $68.10
9
  • KNOB SET, SELECT *NH167L* (GRAPHITE BLACK) - $57.64
1
  • SWITCH ASSY., PARKING - $23.67
5
  • SPRING, RELEASE - $2.32
13
  • BUSH C, CHANGE LEVER - $6.68
27
  • SCREW, BIND (6X14) - $1.26
2
  • SOLENOID SET, SELECT - $64.10
29
  • COVER, WIRE ADJUSTER - $4.68
4
  • RELEASE, SHIFT LOCK - $3.12
2
  • SOLENOID SET, SELECT - $64.10
28
  • BOLT, FLANGE (6X16) - $0.63
14
  • NUT, SELF-LOCK (6MM) - $2.03
20
  • ESCUTCHEON SET, CONSOLE - $68.10
22
  • SCREW-WASHER (3X12) - $1.17
9
  • KNOB SET, SELECT *NH167L* (GRAPHITE BLACK) - $57.64
8
  • WASHER, PLAIN - $1.77
2
  • SOLENOID SET, SELECT - $64.10
19
  • PIECE, WIRE ADJUST LOCK - $2.09
3
  • BRACKET, CONTROL WIRE - $11.22
12
  • CLAMP, HARNESS - $1.83
10
  • BRACKET SET, SELECT LEVER - $138.41
24
  • NUT, PAINT CUTTING (6MM) - $1.18
28
  • BOLT, FLANGE (6X16) - $0.63
9
  • KNOB SET, SELECT *NH167L* (GRAPHITE BLACK) - $57.64
27
  • SCREW, BIND (6X14) - $1.26
10
  • BRACKET SET, SELECT LEVER - $138.41
10
  • BRACKET SET, SELECT LEVER - $138.41
23
  • BOLT-WASHER (8X25) - $0.17
1
  • SWITCH ASSY., PARKING - $23.67
6
  • LINK SET, SELECT - $20.21
7
  • PIN, LINK PIVOT - $4.64
20
  • ESCUTCHEON SET, CONSOLE - $68.10
No. Part # Part # / Description Qty Req. List Price Price
1 35740-S9A-A61 35740-S9A-A61 / SWITCH ASSY., PARKING

1 $33.43 $23.67
2 39550-S9A-961 39550-S9A-961 / SOLENOID SET, SELECT

1 $90.53 $64.10
3 54020-S9A-A81 54020-S9A-A81 / BRACKET, CONTROL WIRE

1 $15.85 $11.22
4 54030-S9A-A81 54030-S9A-A81 / RELEASE, SHIFT LOCK

1 $4.40 $3.12
5 54031-S9A-981 54031-S9A-981 / SPRING, RELEASE

1 $3.28 $2.32
6 54060-S9A-A81 54060-S9A-A81 / LINK SET, SELECT

1 $28.55 $20.21
7 54062-S9A-981 54062-S9A-981 / PIN, LINK PIVOT

1 $6.55 $4.64
8 54113-S9A-981 54113-S9A-981 / WASHER, PLAIN

1 $2.50 $1.77
9 54130-S9A-A83ZB 54130-S9A-A83ZB / KNOB SET, SELECT *NH167L* (GRAPHITE BLACK)

1 $81.42 $57.64
10 54200-S9A-A84 54200-S9A-A84 / BRACKET SET, SELECT LEVER

1 $195.50 $138.41
11 54203-S9A-A83 54203-S9A-A83 / CHECKER SET, SELECT

1 $33.98 $24.06
12 54205-S9A-981 54205-S9A-981 / CLAMP, HARNESS

1 $2.58 $1.83
13 54210-S0X-A82 54210-S0X-A82 / BUSH C, CHANGE LEVER

1 $9.43 $6.68
14 54217-S10-A81 54217-S10-A81 / NUT, SELF-LOCK (6MM)

2 $2.87 $2.03
16 54315-S9B-A83 54315-S9B-A83 / WIRE, CONTROL

1 $215.43 $152.53
19 54361-S6A-981 54361-S6A-981 / PIECE, WIRE ADJUST LOCK

1 $2.95 $2.09
20 54710-S9A-A84 54710-S9A-A84 / ESCUTCHEON SET, CONSOLE

1 $96.18 $68.10
21 54722-S9A-981 54722-S9A-981 / STRAP, CABLE

1 $2.42 $1.71
22 90126-S9A-981 90126-S9A-981 / SCREW-WASHER (3X12)

1 $1.65 $1.17
23 90157-SA0-000 90157-SA0-000 / BOLT-WASHER (8X25)

3 $0.23 $0.17
24 90361-SV4-003 90361-SV4-003 / NUT, PAINT CUTTING (6MM)

2 $1.67 $1.18
27 54206-S9A-981 54206-S9A-981 / SCREW, BIND (6X14)

2 $1.78 $1.26
28 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

4 $0.88 $0.63
29 54366-S6A-981 54366-S6A-981 / COVER, WIRE ADJUSTER

1 $6.62 $4.68
