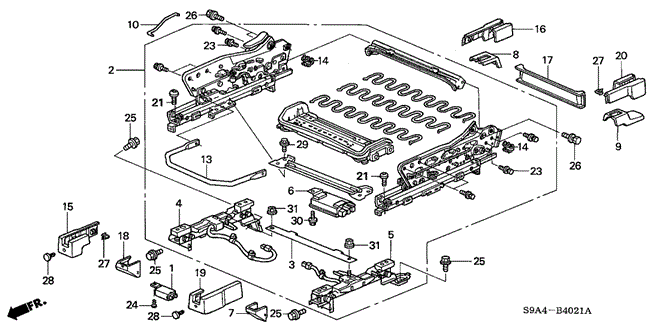

FRAME, R. FR. SEAT CUSHION in INTERIOR / BUMPER/FRONT SEAT COMPONENTS (R.) (2) for 2005 Honda CR-V

FRAME, R. FR. SEAT CUSHION in INTERIOR / BUMPER/FRONT SEAT COMPONENTS (R.) (2) for 2005 Honda CR-V #1
2
  • FRAME, R. FR. SEAT CUSHION - $585.10
14
  • CAP, SLIDE ADJUSTER END (UPPER) - $6.64
23
  • BOLT-WASHER (8X25) - $1.97
31
  • NUT, FLANGE (6MM) - $0.17
3
  • BRACKET, SEAT WEIGHT SENSOR COVER - $9.71
14
  • CAP, SLIDE ADJUSTER END (UPPER) - $6.64
21
  • BOLT (6X22) - $4.61
28
  • CLIP, TRIM (5MM) *YR239L* (IVORY) - $1.62
  • CLIP, TRIM (5MM) *NH167L* (GRAPHITE BLACK) - $2.90
6
  • SWS UNIT - $159.67
27
  • CLIP, GARNISH - $6.25
25
  • BOLT-WASHER (10X25) - $2.03
  • BOLT-WASHER (10X28) - $2.03
17
  • COVER, SEAT WEIGHT SENSOR *YR239L* (IVORY) - $33.96
  • COVER, SEAT WEIGHT SENSOR *NH167L* (GRAPHITE BLACK) - $33.96
18
  • COVER, FR. FOOT (OUTER) *YR239L* (IVORY) - $5.48
  • COVER, FR. FOOT (OUTER) *NH167L* (GRAPHITE BLACK) - $5.48
28
  • CLIP, TRIM (5MM) *YR239L* (IVORY) - $1.62
  • CLIP, TRIM (5MM) *NH167L* (GRAPHITE BLACK) - $2.90
25
  • BOLT-WASHER (10X25) - $2.03
  • BOLT-WASHER (10X28) - $2.03
26
  • BOLT-WASHER (10X22) - $3.62
26
  • BOLT-WASHER (10X22) - $3.62
25
  • BOLT-WASHER (10X25) - $2.03
  • BOLT-WASHER (10X28) - $2.03
31
  • NUT, FLANGE (6MM) - $0.17
20
  • COVER, RR. RAIL (INNER) *YR239L* (IVORY) - $38.75
  • COVER, RR. RAIL (INNER) *NH167L* (GRAPHITE BLACK) - $38.75
5
  • SENSOR ASSY., WEIGHT - $218.44
25
  • BOLT-WASHER (10X25) - $2.03
  • BOLT-WASHER (10X28) - $2.03
13
  • LEVER - $15.58
30
  • BOLT-WASHER (6X12) - $0.63
10
  • ROD - $5.23
15
  • COVER, FR. RAIL (OUTER) *YR239L* (IVORY) - $9.10
  • COVER, FR. RAIL (OUTER) *NH167L* (GRAPHITE BLACK) - $9.10
27
  • CLIP, GARNISH - $6.25
7
  • COVER, FR. FOOT (INNER) *YR239L* (IVORY) - $5.56
  • COVER, FR. FOOT (INNER) *NH167L* (GRAPHITE BLACK) - $5.56
9
  • COVER, RR. FOOT (INNER) *YR239L* (IVORY) - $6.43
  • COVER, RR. FOOT (INNER) *NH167L* (GRAPHITE BLACK) - $6.43
16
  • COVER, RR. RAIL (OUTER) *YR239L* (IVORY) - $9.10
  • COVER, RR. RAIL (OUTER) *NH167L* (GRAPHITE BLACK) - $9.10
8
  • COVER, RR. FOOT (OUTER) *YR239L* (IVORY) - $4.96
  • COVER, RR. FOOT (OUTER) *NH167L* (GRAPHITE BLACK) - $4.96
19
  • COVER, FR. RAIL (INNER) *YR239L* (IVORY) - $39.61
  • COVER, FR. RAIL (INNER) *NH167L* (GRAPHITE BLACK) - $39.61
29
  • BOLT-WASHER (6X16) - $0.72
  • BOLT, HEX. (6X14) - $0.51
23
  • BOLT-WASHER (8X25) - $1.97
21
  • BOLT (6X22) - $4.61
4
  • SENSOR ASSY., WEIGHT - $218.44
No. Part # Part # / Description Qty Req. List Price Price
2 81136-S9A-A42 81136-S9A-A42 / FRAME, R. FR. SEAT CUSHION

1 $826.42 $585.10
3 81138-S9A-A01 81138-S9A-A01 / BRACKET, SEAT WEIGHT SENSOR COVER

1 $13.72 $9.71
4 81167-S9A-505 81167-S9A-505 / SENSOR ASSY., WEIGHT

1 $308.53 $218.44
5 81168-S9A-505 81168-S9A-505 / SENSOR ASSY., WEIGHT

1 $308.53 $218.44
6 81169-SDA-L01 81169-SDA-L01 / SWS UNIT

1 $225.52 $159.67
7 81192-S9A-A01ZB 81192-S9A-A01ZB / COVER, FR. FOOT (INNER) *YR239L* (IVORY)

1 $7.85 $5.56
7 81192-S9A-A01ZA 81192-S9A-A01ZA / COVER, FR. FOOT (INNER) *NH167L* (GRAPHITE BLACK)

1 $7.85 $5.56
8 81195-S9A-A01ZB 81195-S9A-A01ZB / COVER, RR. FOOT (OUTER) *YR239L* (IVORY)

1 $7.00 $4.96
8 81195-S9A-A01ZA 81195-S9A-A01ZA / COVER, RR. FOOT (OUTER) *NH167L* (GRAPHITE BLACK)

1 $7.00 $4.96
9 81196-S9A-A01ZB 81196-S9A-A01ZB / COVER, RR. FOOT (INNER) *YR239L* (IVORY)

1 $9.08 $6.43
9 81196-S9A-A01ZA 81196-S9A-A01ZA / COVER, RR. FOOT (INNER) *NH167L* (GRAPHITE BLACK)

1 $9.08 $6.43
10 81235-S9A-A01 81235-S9A-A01 / ROD

1 $7.38 $5.23
13 81271-S9A-A41 81271-S9A-A41 / LEVER

1 $22.00 $15.58
14 81272-S5A-J01 81272-S5A-J01 / CAP, SLIDE ADJUSTER END (UPPER)

2 $9.38 $6.64
15 81280-S9A-A01ZB 81280-S9A-A01ZB / COVER, FR. RAIL (OUTER) *YR239L* (IVORY)

1 $12.85 $9.10
15 81280-S9A-A01ZA 81280-S9A-A01ZA / COVER, FR. RAIL (OUTER) *NH167L* (GRAPHITE BLACK)

1 $12.85 $9.10
16 81281-S9A-A01ZB 81281-S9A-A01ZB / COVER, RR. RAIL (OUTER) *YR239L* (IVORY)

1 $12.85 $9.10
16 81281-S9A-A01ZA 81281-S9A-A01ZA / COVER, RR. RAIL (OUTER) *NH167L* (GRAPHITE BLACK)

1 $12.85 $9.10
17 81282-S9A-A01ZB 81282-S9A-A01ZB / COVER, SEAT WEIGHT SENSOR *YR239L* (IVORY)

1 $47.97 $33.96
17 81282-S9A-A01ZA 81282-S9A-A01ZA / COVER, SEAT WEIGHT SENSOR *NH167L* (GRAPHITE BLACK)

1 $47.97 $33.96
18 81284-S9A-A01ZB 81284-S9A-A01ZB / COVER, FR. FOOT (OUTER) *YR239L* (IVORY)

1 $7.73 $5.48
18 81284-S9A-A01ZA 81284-S9A-A01ZA / COVER, FR. FOOT (OUTER) *NH167L* (GRAPHITE BLACK)

1 $7.73 $5.48
19 81680-S9A-A01ZB 81680-S9A-A01ZB / COVER, FR. RAIL (INNER) *YR239L* (IVORY)

1 $55.95 $39.61
19 81680-S9A-A01ZA 81680-S9A-A01ZA / COVER, FR. RAIL (INNER) *NH167L* (GRAPHITE BLACK)

1 $55.95 $39.61
20 81682-S9A-A01ZB 81682-S9A-A01ZB / COVER, RR. RAIL (INNER) *YR239L* (IVORY)

1 $54.73 $38.75
20 81682-S9A-A01ZA 81682-S9A-A01ZA / COVER, RR. RAIL (INNER) *NH167L* (GRAPHITE BLACK)

1 $54.73 $38.75
21 90101-SDA-L01 90101-SDA-L01 / BOLT (6X22)

6 $6.52 $4.61
23 90120-S9A-003 90120-S9A-003 / BOLT-WASHER (8X25)

2 $2.78 $1.97
25 90135-S7A-J50 90135-S7A-J50 / BOLT-WASHER (10X25)

4 $2.87 $2.03
25 90135-S7A-J80 90135-S7A-J80 / BOLT-WASHER (10X28)

4 $2.87 $2.03
26 90143-SR3-000 90143-SR3-000 / BOLT-WASHER (10X22)

4 $5.12 $3.62
27 90610-SDA-003 90610-SDA-003 / CLIP, GARNISH

14 $8.83 $6.25
28 90666-SA0-003F3 90666-SA0-003F3 / CLIP, TRIM (5MM) *YR239L* (IVORY)

2 $2.28 $1.62
28 90666-SA0-003A3 90666-SA0-003A3 / CLIP, TRIM (5MM) *NH167L* (GRAPHITE BLACK)

2 $4.10 $2.90
29 93403-06016-08 93403-06016-08 / BOLT-WASHER (6X16)

6 $1.02 $0.72
29 92201-06014-0A 92201-06014-0A / BOLT, HEX. (6X14)

6 $0.72 $0.51
30 93401-06012-08 93401-06012-08 / BOLT-WASHER (6X12)

2 $0.88 $0.63
31 94050-06080 94050-06080 / NUT, FLANGE (6MM)

2 $0.23 $0.17
