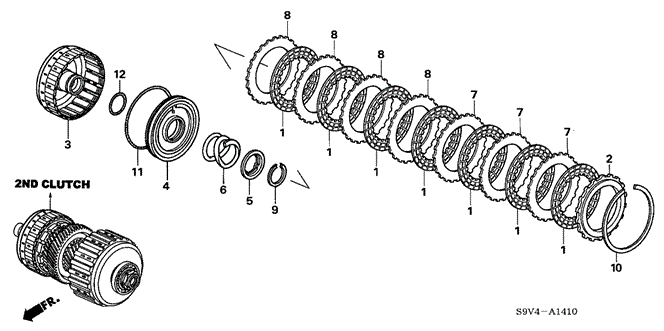

GUIDE, SECOND CLUTCH in TRANSMISSION - AUTOMATIC/AT CLUTCH (2ND) ('06-) for 2007 Honda PILOT

GUIDE, SECOND CLUTCH in TRANSMISSION - AUTOMATIC/AT CLUTCH (2ND) ('06-) for 2007 Honda PILOT #1
7
  • PLATE, CLUTCH WAVE (1.8MM) - $1.96
7
  • PLATE, CLUTCH WAVE (1.8MM) - $1.96
11
  • O-RING (114X2.2) (NOK) - $4.92
4
  • PISTON, SECOND CLUTCH - $78.73
8
  • PLATE, CLUTCH (1.8MM) - $6.84
2
  • PLATE, CLUTCH END (6) (2.6MM) - $13.77
  • PLATE, CLUTCH END (7) (2.7MM) - $13.77
  • PLATE, CLUTCH END (1) (2.1MM) - $13.77
  • PLATE, CLUTCH END (5) (2.5MM) - $13.77
  • PLATE, CLUTCH END (4) (2.4MM) - $14.43
  • PLATE, CLUTCH END (3) (2.3MM) - $13.77
  • PLATE, CLUTCH END (9) (2.9MM) - $13.77
  • PLATE, CLUTCH END (8) (2.8MM) - $13.77
  • PLATE, CLUTCH END (2) (2.2MM) - $13.77
8
  • PLATE, CLUTCH (1.8MM) - $6.84
7
  • PLATE, CLUTCH WAVE (1.8MM) - $1.96
8
  • PLATE, CLUTCH (1.8MM) - $6.84
1
  • DISK, CLUTCH - $16.84
1
  • DISK, CLUTCH - $16.84
6
  • SPRING, CLUTCH RETURN - $13.77
10
  • RING, SNAP (129MM) - $4.48
1
  • DISK, CLUTCH - $16.84
1
  • DISK, CLUTCH - $16.84
3
  • GUIDE, SECOND CLUTCH - $248.99
12
  • O-RING (42.8X2.2) (F.C.C.) - $2.24
1
  • DISK, CLUTCH - $16.84
5
  • SEAT, RETURN SPRING - $4.13
9
  • CIRCLIP (OUTER) (42MM) - $3.21
1
  • DISK, CLUTCH - $16.84
1
  • DISK, CLUTCH - $16.84
8
  • PLATE, CLUTCH (1.8MM) - $6.84
No. Part # Part # / Description Qty Req. List Price Price
1 22545-RJB-003 22545-RJB-003 / DISK, CLUTCH

7 $23.78 $16.84
2 22566-RDK-003 22566-RDK-003 / PLATE, CLUTCH END (6) (2.6MM)

1 $19.45 $13.77
2 22567-RDK-003 22567-RDK-003 / PLATE, CLUTCH END (7) (2.7MM)

1 $19.45 $13.77
2 22561-RDK-003 22561-RDK-003 / PLATE, CLUTCH END (1) (2.1MM)

1 $19.45 $13.77
2 22565-RDK-003 22565-RDK-003 / PLATE, CLUTCH END (5) (2.5MM)

1 $19.45 $13.77
2 22564-RDK-003 22564-RDK-003 / PLATE, CLUTCH END (4) (2.4MM)

1 $20.38 $14.43
2 22563-RDK-003 22563-RDK-003 / PLATE, CLUTCH END (3) (2.3MM)

1 $19.45 $13.77
2 22569-RDK-003 22569-RDK-003 / PLATE, CLUTCH END (9) (2.9MM)

1 $19.45 $13.77
2 22568-RDK-003 22568-RDK-003 / PLATE, CLUTCH END (8) (2.8MM)

1 $19.45 $13.77
2 22562-RDK-003 22562-RDK-003 / PLATE, CLUTCH END (2) (2.2MM)

1 $19.45 $13.77
3 22610-RDK-033 22610-RDK-033 / GUIDE, SECOND CLUTCH

1 $351.68 $248.99
4 22620-RDK-053 22620-RDK-053 / PISTON, SECOND CLUTCH

1 $111.20 $78.73
5 22633-RDK-003 22633-RDK-003 / SEAT, RETURN SPRING

1 $5.83 $4.13
6 22641-RDK-003 22641-RDK-003 / SPRING, CLUTCH RETURN

1 $19.45 $13.77
7 22643-PVL-003 22643-PVL-003 / PLATE, CLUTCH WAVE (1.8MM)

3 $2.77 $1.96
8 22643-RDK-013 22643-RDK-013 / PLATE, CLUTCH (1.8MM)

4 $9.67 $6.84
9 90603-P56-N00 90603-P56-N00 / CIRCLIP (OUTER) (42MM)

1 $4.53 $3.21
10 90605-PX4-000 90605-PX4-000 / RING, SNAP (129MM)

1 $6.33 $4.48
11 91303-PX4-004 91303-PX4-004 / O-RING (114X2.2) (NOK)

1 $6.95 $4.92
12 91305-RDK-003 91305-RDK-003 / O-RING (42.8X2.2) (F.C.C.)

1 $3.17 $2.24
