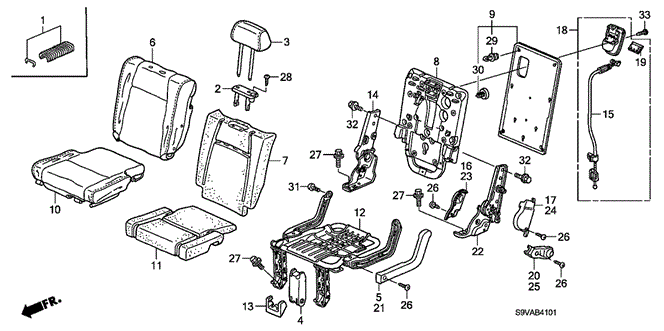

FRAME, R. RR. SEAT-BACK in INTERIOR / BUMPER/REAR SEAT (R.) for 2008 Honda PILOT

FRAME, R. RR. SEAT-BACK in INTERIOR / BUMPER/REAR SEAT (R.) for 2008 Honda PILOT #1
10
  • COVER, R. RR. SEAT CUSHION TRIM *G65L* (GREEN) - $72.32
  • COVER, R. RR. SEAT CUSHION TRIM *YR203L* (SADDLE) - $72.32
  • COVER, R. RR. SEAT CUSHION TRIM *NH361L* (GRAY) - $72.32
33
  • SCREW, TAPPING (4X12) - $0.39
28
  • SCREW, FLAT (4X16) - $1.91
26
  • SCREW, TAPPING (5X10) - $1.78
27
  • BOLT-WASHER (10X25) - $2.03
11
  • PAD, R. RR. SEAT CUSHION - $459.24
17
  • COVER A, R. RR. SEAT BRACKET *G65L* (GREEN) - $230.67
  • COVER A, R. RR. SEAT BRACKET *YR203L* (SADDLE) - $230.67
  • COVER A, R. RR. SEAT BRACKET *NH361L* (GRAY) - $230.67
32
  • BOLT (8X25) - $15.98
26
  • SCREW, TAPPING (5X10) - $1.78
12
  • FRAME, R. RR. SEAT CUSHION - $197.86
16
  • COVER B, R. RR. SEAT BRACKET *G65L* (GREEN) - $15.53
  • COVER B, R. RR. SEAT BRACKET *YR203L* (SADDLE) - $15.53
  • COVER B, R. RR. SEAT BRACKET *NH361L* (GRAY) - $15.53
30
  • CLIP, RR. SEAT (LOWER) - $14.82
25
  • COVER, L. RR. SEAT BELT STAY *G65L* (GREEN) - $22.46
  • COVER, L. RR. SEAT BELT STAY *YR203L* (SADDLE) - $22.46
  • COVER, L. RR. SEAT BELT STAY *NH361L* (GRAY) - $22.46
2
  • GUIDE, HEADREST *G65L* (GREEN) - $27.39
  • GUIDE, HEADREST *YR203L* (SADDLE) - $27.39
  • GUIDE, HEADREST *NH361L* (GRAY) - $27.39
8
  • FRAME, R. RR. SEAT-BACK - $856.28
13
  • COVER, RR. SEAT FOOT *G65L* (FR) (GREEN) - $1.97
  • COVER, RR. SEAT FOOT *YR203L* (FR) (SADDLE) - $1.97
  • COVER, RR. SEAT FOOT *NH361L* (FR) (GRAY) - $1.97
27
  • BOLT-WASHER (10X25) - $2.03
9
  • COVER, R. RR. SEAT-BACK BACK *G65L* (GREEN) - $248.92
  • COVER, R. RR. SEAT-BACK BACK *YR203L* (SADDLE) - $248.92
  • COVER, R. RR. SEAT-BACK BACK *NH361L* (GRAY) - $248.92
21
  • COVER, L. RR. SEAT *G65L* (BANANA) (GREEN) - $14.66
  • COVER, L. RR. SEAT *YR203L* (BANANA) (SADDLE) - $14.66
  • COVER, L. RR. SEAT *NH361L* (BANANA) (GRAY) - $14.66
24
  • COVER A, L. RR. SEAT BRACKET *G65L* (GREEN) - $16.02
  • COVER A, L. RR. SEAT BRACKET *YR203L* (SADDLE) - $16.02
  • COVER A, L. RR. SEAT BRACKET *NH361L* (GRAY) - $16.02
19
  • CAP, RECLINING LEVER *G65L* (GREEN) - $27.28
  • CAP, RECLINING LEVER *YR203L* (SADDLE) - $27.28
  • CAP, RECLINING LEVER *NH361L* (GRAY) - $27.28
3
  • HEADREST ASSY., MIDDLE *G65L* (GREEN) - $255.71
  • HEADREST ASSY., MIDDLE *YR203L* (SADDLE) - $255.71
  • HEADREST ASSY., MIDDLE *NH361L* (GRAY) - $255.71
26
  • SCREW, TAPPING (5X10) - $1.78
32
  • BOLT (8X25) - $15.98
27
  • BOLT-WASHER (10X25) - $2.03
4
  • COVER, RR. SEAT LINK *G65L* (FR) (GREEN) - $14.84
  • COVER, RR. SEAT LINK *YR203L* (FR) (SADDLE) - $14.84
  • COVER, RR. SEAT LINK *NH361L* (FR) (GRAY) - $14.84
20
  • COVER, R. RR. SEAT BELT STAY *G65L* (GREEN) - $21.85
  • COVER, R. RR. SEAT BELT STAY *YR203L* (SADDLE) - $21.75
  • COVER, R. RR. SEAT BELT STAY *NH361L* (GRAY) - $21.75
1
  • C-CLIP SET, TRIM FASTENER (30 PIECES) - $4.51
29
  • CLIP, RR. SEAT (UPPER) - $5.43
7
  • PAD, R. RR. SEAT-BACK - $372.12
6
  • COVER, R. RR. SEAT-BACK TRIM *G65L* (GREEN) - $76.49
  • COVER, R. RR. SEAT-BACK TRIM *YR203L* (SADDLE) - $76.49
  • COVER, R. RR. SEAT-BACK TRIM *NH361L* (GRAY) - $76.49
31
  • BOLT (6X12.6) - $8.45
23
  • COVER B, L. RR. SEAT BRACKET *G65L* (GREEN) - $15.00
  • COVER B, L. RR. SEAT BRACKET *YR203L* (SADDLE) - $15.00
  • COVER B, L. RR. SEAT BRACKET *NH361L* (GRAY) - $15.00
22
  • ADJUSTER, R. RR. SEAT RECLINING - $131.28
18
  • LEVER, R. RR. SEAT RECLINING *G65L* (GREEN) - $389.86
  • LEVER, R. RR. SEAT RECLINING *YR203L* (SADDLE) - $109.17
  • LEVER, R. RR. SEAT RECLINING *NH361L* (GRAY) - $109.17
15
  • CABLE A, R. RR. SEAT RECLININGLEVER - $76.02
5
  • COVER, R. RR. SEAT *G65L* (BANANA) (GREEN) - $14.68
  • COVER, R. RR. SEAT *YR203L* (BANANA) (SADDLE) - $14.68
  • COVER, R. RR. SEAT *NH361L* (BANANA) (GRAY) - $14.68
14
  • PIVOT ASSY., R. RR. SEAT (OUTER) - $663.18
26
  • SCREW, TAPPING (5X10) - $1.78
No. Part # Part # / Description Qty Req. List Price Price
1 04810-SB3-000 04810-SB3-000 / C-CLIP SET, TRIM FASTENER (30 PIECES)

1 $6.37 $4.51
2 81144-SH3-003YM 81144-SH3-003YM / GUIDE, HEADREST *G65L* (GREEN)

1 $38.69 $27.39
2 81144-SH3-003YG 81144-SH3-003YG / GUIDE, HEADREST *YR203L* (SADDLE)

1 $38.69 $27.39
2 81144-SH3-003YH 81144-SH3-003YH / GUIDE, HEADREST *NH361L* (GRAY)

1 $38.69 $27.39
3 81340-S9V-L21ZC 81340-S9V-L21ZC / HEADREST ASSY., MIDDLE *G65L* (GREEN)

1 $361.17 $255.71
3 81340-S9V-L21ZB 81340-S9V-L21ZB / HEADREST ASSY., MIDDLE *YR203L* (SADDLE)

1 $361.17 $255.71
3 81340-S9V-L21ZA 81340-S9V-L21ZA / HEADREST ASSY., MIDDLE *NH361L* (GRAY)

1 $361.17 $255.71
4 82115-S9V-A01ZE 82115-S9V-A01ZE / COVER, RR. SEAT LINK *G65L* (FR) (GREEN)

2 $20.97 $14.84
4 82115-S9V-A01ZC 82115-S9V-A01ZC / COVER, RR. SEAT LINK *YR203L* (FR) (SADDLE)

2 $20.97 $14.84
4 82115-S9V-A01ZB 82115-S9V-A01ZB / COVER, RR. SEAT LINK *NH361L* (FR) (GRAY)

2 $20.97 $14.84
5 82116-S9V-A01ZD 82116-S9V-A01ZD / COVER, R. RR. SEAT *G65L* (BANANA) (GREEN)

1 $20.73 $14.68
5 82116-S9V-A01ZC 82116-S9V-A01ZC / COVER, R. RR. SEAT *YR203L* (BANANA) (SADDLE)

1 $20.73 $14.68
5 82116-S9V-A01ZB 82116-S9V-A01ZB / COVER, R. RR. SEAT *NH361L* (BANANA) (GRAY)

1 $20.73 $14.68
6 82121-S9V-A22ZD 82121-S9V-A22ZD / COVER, R. RR. SEAT-BACK TRIM *G65L* (GREEN)

1 $108.03 $76.49
6 82121-S9V-A22ZC 82121-S9V-A22ZC / COVER, R. RR. SEAT-BACK TRIM *YR203L* (SADDLE)

1 $108.03 $76.49
6 82121-S9V-A22ZB 82121-S9V-A22ZB / COVER, R. RR. SEAT-BACK TRIM *NH361L* (GRAY)

1 $108.03 $76.49
7 82122-S9V-A01 82122-S9V-A01 / PAD, R. RR. SEAT-BACK

1 $525.60 $372.12
8 82126-S9V-A01 82126-S9V-A01 / FRAME, R. RR. SEAT-BACK

1 $1,209.43 $856.28
9 82127-S9V-A01ZD 82127-S9V-A01ZD / COVER, R. RR. SEAT-BACK BACK *G65L* (GREEN)

1 $351.58 $248.92
9 82127-S9V-A01ZC 82127-S9V-A01ZC / COVER, R. RR. SEAT-BACK BACK *YR203L* (SADDLE)

1 $351.58 $248.92
9 82127-S9V-A01ZB 82127-S9V-A01ZB / COVER, R. RR. SEAT-BACK BACK *NH361L* (GRAY)

1 $351.58 $248.92
10 82131-S9V-A22ZD 82131-S9V-A22ZD / COVER, R. RR. SEAT CUSHION TRIM *G65L* (GREEN)

1 $102.15 $72.32
10 82131-S9V-A22ZC 82131-S9V-A22ZC / COVER, R. RR. SEAT CUSHION TRIM *YR203L* (SADDLE)

1 $102.15 $72.32
10 82131-S9V-A22ZB 82131-S9V-A22ZB / COVER, R. RR. SEAT CUSHION TRIM *NH361L* (GRAY)

1 $102.15 $72.32
11 82132-S9V-A01 82132-S9V-A01 / PAD, R. RR. SEAT CUSHION

1 $648.65 $459.24
12 82136-S9V-A01 82136-S9V-A01 / FRAME, R. RR. SEAT CUSHION

1 $279.47 $197.86
13 82195-S3V-A00ZG 82195-S3V-A00ZG / COVER, RR. SEAT FOOT *G65L* (FR) (GREEN)

2 $2.78 $1.97
13 82195-S3V-A00ZB 82195-S3V-A00ZB / COVER, RR. SEAT FOOT *YR203L* (FR) (SADDLE)

2 $2.78 $1.97
13 82195-S3V-A00ZD 82195-S3V-A00ZD / COVER, RR. SEAT FOOT *NH361L* (FR) (GRAY)

2 $2.78 $1.97
14 82230-S9V-A01 82230-S9V-A01 / PIVOT ASSY., R. RR. SEAT (OUTER)

1 $936.70 $663.18
15 82234-S9V-A01 82234-S9V-A01 / CABLE A, R. RR. SEAT RECLININGLEVER

1 $107.37 $76.02
16 82238-S9V-A01ZD 82238-S9V-A01ZD / COVER B, R. RR. SEAT BRACKET *G65L* (GREEN)

1 $21.93 $15.53
16 82238-S9V-A01ZC 82238-S9V-A01ZC / COVER B, R. RR. SEAT BRACKET *YR203L* (SADDLE)

1 $21.93 $15.53
16 82238-S9V-A01ZB 82238-S9V-A01ZB / COVER B, R. RR. SEAT BRACKET *NH361L* (GRAY)

1 $21.93 $15.53
17 82239-S9V-A01ZD 82239-S9V-A01ZD / COVER A, R. RR. SEAT BRACKET *G65L* (GREEN)

1 $325.80 $230.67
17 82239-S9V-A01ZC 82239-S9V-A01ZC / COVER A, R. RR. SEAT BRACKET *YR203L* (SADDLE)

1 $325.80 $230.67
17 82239-S9V-A01ZB 82239-S9V-A01ZB / COVER A, R. RR. SEAT BRACKET *NH361L* (GRAY)

1 $325.80 $230.67
18 82243-S9V-A01ZD 82243-S9V-A01ZD / LEVER, R. RR. SEAT RECLINING *G65L* (GREEN)

1 $550.65 $389.86
18 82243-S9V-A01ZC 82243-S9V-A01ZC / LEVER, R. RR. SEAT RECLINING *YR203L* (SADDLE)

1 $154.20 $109.17
18 82243-S9V-A01ZB 82243-S9V-A01ZB / LEVER, R. RR. SEAT RECLINING *NH361L* (GRAY)

1 $154.20 $109.17
19 82244-S9V-A01ZD 82244-S9V-A01ZD / CAP, RECLINING LEVER *G65L* (GREEN)

1 $38.53 $27.28
19 82244-S9V-A01ZC 82244-S9V-A01ZC / CAP, RECLINING LEVER *YR203L* (SADDLE)

1 $38.53 $27.28
19 82244-S9V-A01ZB 82244-S9V-A01ZB / CAP, RECLINING LEVER *NH361L* (GRAY)

1 $38.53 $27.28
20 82457-S9V-A01ZD 82457-S9V-A01ZD / COVER, R. RR. SEAT BELT STAY *G65L* (GREEN)

1 $30.87 $21.85
20 82457-S9V-A01ZC 82457-S9V-A01ZC / COVER, R. RR. SEAT BELT STAY *YR203L* (SADDLE)

1 $30.72 $21.75
20 82457-S9V-A01ZB 82457-S9V-A01ZB / COVER, R. RR. SEAT BELT STAY *NH361L* (GRAY)

1 $30.72 $21.75
21 82516-S3V-A11ZG 82516-S3V-A11ZG / COVER, L. RR. SEAT *G65L* (BANANA) (GREEN)

1 $20.70 $14.66
21 82516-S3V-A11ZB 82516-S3V-A11ZB / COVER, L. RR. SEAT *YR203L* (BANANA) (SADDLE)

1 $20.70 $14.66
21 82516-S3V-A11ZD 82516-S3V-A11ZD / COVER, L. RR. SEAT *NH361L* (BANANA) (GRAY)

1 $20.70 $14.66
22 82631-S9V-A01 82631-S9V-A01 / ADJUSTER, R. RR. SEAT RECLINING

1 $185.42 $131.28
23 82638-S9V-A01ZD 82638-S9V-A01ZD / COVER B, L. RR. SEAT BRACKET *G65L* (GREEN)

1 $21.18 $15.00
23 82638-S9V-A01ZC 82638-S9V-A01ZC / COVER B, L. RR. SEAT BRACKET *YR203L* (SADDLE)

1 $21.18 $15.00
23 82638-S9V-A01ZB 82638-S9V-A01ZB / COVER B, L. RR. SEAT BRACKET *NH361L* (GRAY)

1 $21.18 $15.00
24 82639-S9V-A01ZD 82639-S9V-A01ZD / COVER A, L. RR. SEAT BRACKET *G65L* (GREEN)

1 $22.63 $16.02
24 82639-S9V-A01ZC 82639-S9V-A01ZC / COVER A, L. RR. SEAT BRACKET *YR203L* (SADDLE)

1 $22.63 $16.02
24 82639-S9V-A01ZB 82639-S9V-A01ZB / COVER A, L. RR. SEAT BRACKET *NH361L* (GRAY)

1 $22.63 $16.02
25 82857-S9V-A01ZD 82857-S9V-A01ZD / COVER, L. RR. SEAT BELT STAY *G65L* (GREEN)

1 $31.72 $22.46
25 82857-S9V-A01ZC 82857-S9V-A01ZC / COVER, L. RR. SEAT BELT STAY *YR203L* (SADDLE)

1 $31.72 $22.46
25 82857-S9V-A01ZB 82857-S9V-A01ZB / COVER, L. RR. SEAT BELT STAY *NH361L* (GRAY)

1 $31.72 $22.46
26 90134-SE3-003 90134-SE3-003 / SCREW, TAPPING (5X10)

8 $2.52 $1.78
27 90135-S7A-J51 90135-S7A-J51 / BOLT-WASHER (10X25)

6 $2.87 $2.03
28 90161-SB4-003 90161-SB4-003 / SCREW, FLAT (4X16)

1 $2.70 $1.91
29 90600-S3V-A11 90600-S3V-A11 / CLIP, RR. SEAT (UPPER)

6 $7.67 $5.43
30 90670-S3V-A12 90670-S3V-A12 / CLIP, RR. SEAT (LOWER)

3 $20.93 $14.82
31 91906-S3V-A11 91906-S3V-A11 / BOLT (6X12.6)

2 $11.93 $8.45
32 91908-S3V-A11 91908-S3V-A11 / BOLT (8X25)

4 $22.57 $15.98
33 93901-44320 93901-44320 / SCREW, TAPPING (4X12)

2 $0.55 $0.39
