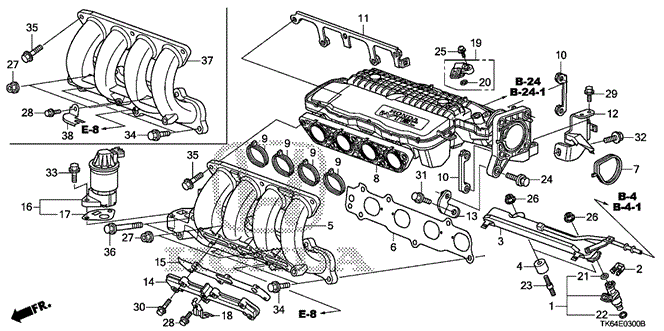

ENGINE/INTAKE MANIFOLD for 2009 Honda FIT

Select INTAKE MANIFOLD Part

2009 Honda FIT

Change vehicle

No. Part # Part # / Description List Price Price
1 16450-RNA-A01 16450-RNA-A01 / INJECTOR ASSY., FUEL

$61.50 $43.54
2 16451-PLC-000 16451-PLC-000 / CLIP, INJECTOR

$0.93 $0.66
3 16620-RB0-003 16620-RB0-003 / PIPE, FUEL

$93.45 $66.16
4 16638-PT2-000 16638-PT2-000 / INSULATOR, FUEL PIPE

$6.75 $4.78
5 17100-RB1-000 17100-RB1-000 / MANIFOLD, IN.

$295.43 $209.17
6 17105-RB0-004 17105-RB0-004 / GASKET, IN. MANIFOLD

$16.13 $11.42
7 17107-RB0-007 17107-RB0-007 / GASKET, THROTTLE BODY

$33.90 $24.00
8 17110-RB1-000 17110-RB1-000 / CHAMBER, IN. MANIFOLD

$180.97 $128.12
9 17115-RB0-007 17115-RB0-007 / GASKET, IN. PORT

$8.18 $5.79
10 17116-RB0-000 17116-RB0-000 / PLATE, THROTTLE FLANGE

$5.73 $4.06
11 17117-RB0-000 17117-RB0-000 / PLATE, IN. MANIFOLD FLANGE

$8.80 $6.23
12 17132-RB0-000 17132-RB0-000 / STAY A, IN. MANIFOLD

$12.13 $8.59
13 17134-RB1-000 17134-RB1-000 / STAY B, IN. MANIFOLD

$3.43 $2.43
14 17145-RB0-000 17145-RB0-000 / COVER, EGR CHAMBER

$29.68 $21.02
15 17146-RB0-004 17146-RB0-004 / GASKET, EGR CHAMBER COVER

$13.63 $9.65
16 18011-RB0-000 18011-RB0-000 / VALVE SET, EGR

$272.31 $192.80
17 18715-PB2-000 18715-PB2-000 / GASKET, EGR VALVE (ISHINO GASKET)

$7.03 $4.98
18 32741-RB0-000 32741-RB0-000 / STAY, EGR COVER

$0.95 $0.67
19 37830-RNA-A01 37830-RNA-A01 / SENSOR ASSY., MAP

$57.07 $40.40
20 37835-PGK-A01 37835-PGK-A01 / O-RING

$6.35 $4.50
21 91301-PLC-000 91301-PLC-000 / O-RING (7.47X3.6)

$2.03 $1.44
22 91302-PNA-003 91302-PNA-003 / O-RING (7.45X3.61) (NOK)

$1.47 $1.04
23 92900-06032-0E 92900-06032-0E / BOLT 2, STUD (6X32)

$1.45 $1.03
24 93404-08030-08 93404-08030-08 / BOLT-WASHER (8X30)

$1.27 $0.90
25 93892-05020-08 93892-05020-08 / SCREW-WASHER (5X20)

$0.67 $0.47
26 94050-06080 94050-06080 / NUT, FLANGE (6MM)

$0.23 $0.17
27 94050-08080 94050-08080 / NUT, FLANGE (8MM)

$0.25 $0.18
28 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

$1.00 $0.71
29 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

$0.88 $0.63
30 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

$0.98 $0.70
31 95701-08016-08 95701-08016-08 / BOLT, FLANGE (8X16)

$0.98 $0.70
32 95701-08020-08 95701-08020-08 / BOLT, FLANGE (8X20)

$0.88 $0.63
33 95701-08025-08 95701-08025-08 / BOLT, FLANGE (8X25)

$0.43 $0.31
34 95701-08030-08 95701-08030-08 / BOLT, FLANGE (8X30)

$0.85 $0.60
35 95701-08040-08 95701-08040-08 / BOLT, FLANGE (8X40)

$1.28 $0.91
36 95701-08100-08 95701-08100-08 / BOLT, FLANGE (8X100)

$1.63 $1.16
