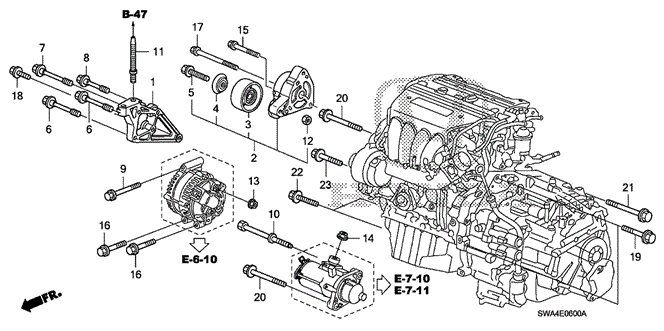

TENSIONER ASSY., AUTO in ENGINE/ENGINE MOUNTING BRACKET for 2011 Honda CR-V

TENSIONER ASSY., AUTO in ENGINE/ENGINE MOUNTING BRACKET for 2011 Honda CR-V #1
13
  • NUT, FLANGE (6MM) - $0.17
1
  • BRACKET, ENGINE SIDE MOUNTING - $36.31
14
  • NUT-WASHER (8MM) - $0.31
8
  • BOLT (10X65) - $2.01
5
  • BOLT, SPECIAL (10X28) - $1.52
  • BOLT, SPECIAL (10X28) - $1.85
3
  • PULLEY, IDLER - $16.26
  • PULLEY, IDLER - $28.58
22
  • BOLT, FLANGE (10X50) - $1.06
10
  • BOLT, SPECIAL (10X50) - $2.73
6
  • BOLT (10X75) - $2.71
19
  • BOLT, FLANGE (12X60) - $1.27
12
  • NUT - $0.58
  • NUT (10MM) - $1.60
2
  • TENSIONER ASSY., AUTO - $63.47
  • TENSIONER ASSY., AUTO - $95.32
4
  • COVER, BEARING - $1.37
  • COVER, BEARING - $4.54
16
  • BOLT, FLANGE (8X55) - $0.97
20
  • BOLT, FLANGE (12X85) - $1.76
11
  • BOLT, STUD (14X90) - $4.12
6
  • BOLT (10X75) - $2.71
15
  • BOLT, FLANGE (8X45) - $0.91
17
  • BOLT, FLANGE (8X70) - $1.10
23
  • BOLT, FLANGE (12X60) - $1.27
  • BOLT, FLANGE (12X60) - $1.27
21
  • BOLT, FLANGE (12X95) - $1.76
20
  • BOLT, FLANGE (12X85) - $1.76
9
  • BOLT, SPECIAL (8X105) - $3.33
16
  • BOLT, FLANGE (8X55) - $0.97
7
  • BOLT (10X85) - $3.58
18
  • BOLT, FLANGE (10X35) - $0.92
No. Part # Part # / Description Qty Req. List Price Price
1 11910-REZ-A00 11910-REZ-A00 / BRACKET, ENGINE SIDE MOUNTING

1 $51.28 $36.31
2 31170-RAA-A02 31170-RAA-A02 / TENSIONER ASSY., AUTO

1 $89.65 $63.47
2 31170-PNA-023 31170-PNA-023 / TENSIONER ASSY., AUTO

1 $134.63 $95.32
3 31180-RAA-A01 31180-RAA-A01 / PULLEY, IDLER

1 $22.97 $16.26
3 31180-PNA-J01 31180-PNA-J01 / PULLEY, IDLER

1 $40.37 $28.58
4 31185-RAA-A01 31185-RAA-A01 / COVER, BEARING

1 $1.93 $1.37
4 31185-PNA-003 31185-PNA-003 / COVER, BEARING

1 $6.42 $4.54
5 90002-RAA-A00 90002-RAA-A00 / BOLT, SPECIAL (10X28)

1 $2.15 $1.52
5 90002-PNA-000 90002-PNA-000 / BOLT, SPECIAL (10X28)

1 $2.62 $1.85
6 90008-PNA-000 90008-PNA-000 / BOLT (10X75)

2 $3.83 $2.71
7 90008-PPA-000 90008-PPA-000 / BOLT (10X85)

1 $5.05 $3.58
8 90008-RWC-A00 90008-RWC-A00 / BOLT (10X65)

1 $2.83 $2.01
9 90025-PNA-000 90025-PNA-000 / BOLT, SPECIAL (8X105)

1 $4.70 $3.33
10 90027-PND-A00 90027-PND-A00 / BOLT, SPECIAL (10X50)

1 $3.85 $2.73
11 90041-RRA-A00 90041-RRA-A00 / BOLT, STUD (14X90)

1 $5.82 $4.12
12 90202-RAA-A01 90202-RAA-A01 / NUT

1 $0.82 $0.58
12 90202-PNA-003 90202-PNA-003 / NUT (10MM)

1 $2.27 $1.60
13 94050-06080 94050-06080 / NUT, FLANGE (6MM)

1 $0.23 $0.17
14 94070-08080 94070-08080 / NUT-WASHER (8MM)

1 $0.43 $0.31
15 95701-08045-08 95701-08045-08 / BOLT, FLANGE (8X45)

2 $1.28 $0.91
16 95701-08055-08 95701-08055-08 / BOLT, FLANGE (8X55)

2 $1.37 $0.97
17 95701-08070-08 95701-08070-08 / BOLT, FLANGE (8X70)

1 $1.55 $1.10
18 95701-10035-08 95701-10035-08 / BOLT, FLANGE (10X35)

1 $1.30 $0.92
23 95701-12060-08 95701-12060-08 / BOLT, FLANGE (12X60)

1 $1.80 $1.27
20 95701-12085-08 95701-12085-08 / BOLT, FLANGE (12X85)

2 $2.48 $1.76
21 95701-12095-08 95701-12095-08 / BOLT, FLANGE (12X95)

1 $2.48 $1.76
22 95701-10050-08 95701-10050-08 / BOLT, FLANGE (10X50)

2 $1.50 $1.06
23 95701-12060-07 95701-12060-07 / BOLT, FLANGE (12X60)

1 $1.80 $1.27
