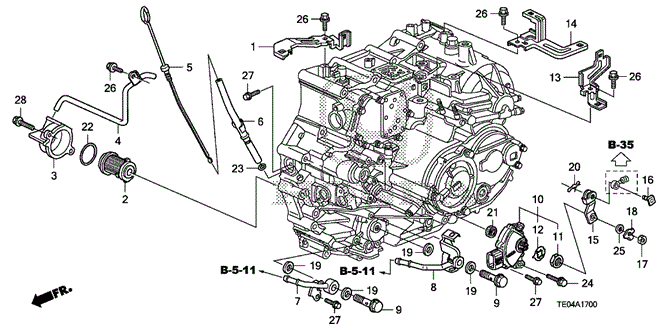

SENSOR ASSY., POSITION in TRANSMISSION - AUTOMATIC/AT OIL LEVEL GAUGE - ATF PIPE (V6) for 2008 Honda ACCORD COUPE

SENSOR ASSY., POSITION in TRANSMISSION - AUTOMATIC/AT OIL LEVEL GAUGE - ATF PIPE (V6) for 2008 Honda ACCORD COUPE #1
7
  • PIPE A (ATF) - $13.26
22
  • O-RING (37.7X3.5) (ARAI) - $2.23
17
  • NUT, HEX. (8MM) - $0.97
18
  • WASHER, LOCK (8MM) - $1.55
9
  • BOLT, JOINT - $5.88
19
  • WASHER, DRAIN PLUG (12MM) - $1.24
4
  • PIPE, RETURN (ATF) - $21.83
19
  • WASHER, DRAIN PLUG (12MM) - $1.24
26
  • BOLT, FLANGE (6X12) - $0.71
12
  • WASHER, LOCK (16MM) - $2.09
27
  • BOLT, FLANGE (6X14) - $0.63
27
  • BOLT, FLANGE (6X14) - $0.63
2
  • FILTER - $11.97
13
  • STAY B, ENGINE WIRE HARNESS - $3.23
26
  • BOLT, FLANGE (6X12) - $0.71
19
  • WASHER, DRAIN PLUG (12MM) - $1.24
21
  • OIL SEAL (12X22X7) (ARAI) - $4.41
26
  • BOLT, FLANGE (6X12) - $0.71
14
  • STAY D, ENGINE HARNESS - $5.72
27
  • BOLT, FLANGE (6X14) - $0.63
15
  • LEVER, CONTROL - $12.59
10
  • SENSOR ASSY., POSITION - $55.60
23
  • O-RING (8.5X1.9) (NOK) - $1.66
25
  • WASHER, SPRING (8MM) - $0.38
16
  • PIN, CONTROL WIRE - $2.49
28
  • BOLT, FLANGE (6X20) - $0.15
24
  • BOLT-WASHER (6X25) - $0.85
9
  • BOLT, JOINT - $5.88
19
  • WASHER, DRAIN PLUG (12MM) - $1.24
1
  • BRACKET, WATER HOSE - $7.15
5
  • DIPSTICK (ATF) - $9.25
3
  • COVER, ELEMENT - $14.34
20
  • PIN, SNAP (8MM) - $1.44
11
  • NUT, HEX. SPECIAL (16MM) - $2.40
26
  • BOLT, FLANGE (6X12) - $0.71
6
  • PIPE, GAUGE (ATF) - $11.53
8
  • PIPE B (ATF) - $10.89
No. Part # Part # / Description Qty Req. List Price Price
1 19518-R70-A00 19518-R70-A00 / BRACKET, WATER HOSE

1 $10.10 $7.15
2 25450-P4V-013 25450-P4V-013 / FILTER

1 $16.90 $11.97
3 25471-RJB-000 25471-RJB-000 / COVER, ELEMENT

1 $20.25 $14.34
4 25475-RJF-T00 25475-RJF-T00 / PIPE, RETURN (ATF)

1 $30.83 $21.83
5 25610-R36-003 25610-R36-003 / DIPSTICK (ATF)

1 $13.07 $9.25
6 25613-RDH-000 25613-RDH-000 / PIPE, GAUGE (ATF)

1 $16.28 $11.53
7 25910-RDH-000 25910-RDH-000 / PIPE A (ATF)

1 $18.73 $13.26
8 25920-R97-000 25920-R97-000 / PIPE B (ATF)

1 $15.38 $10.89
9 25951-RGR-000 25951-RGR-000 / BOLT, JOINT

2 $8.30 $5.88
10 28900-RYF-023 28900-RYF-023 / SENSOR ASSY., POSITION

1 $78.53 $55.60
11 28921-P5H-003 28921-P5H-003 / NUT, HEX. SPECIAL (16MM)

1 $3.38 $2.40
12 28922-RJB-003 28922-RJB-003 / WASHER, LOCK (16MM)

1 $2.95 $2.09
13 32742-R70-A50 32742-R70-A50 / STAY B, ENGINE WIRE HARNESS

1 $4.57 $3.23
14 32744-R70-A50 32744-R70-A50 / STAY D, ENGINE HARNESS

1 $8.08 $5.72
15 54313-STK-A81 54313-STK-A81 / LEVER, CONTROL

1 $17.78 $12.59
16 54314-SDA-A81 54314-SDA-A81 / PIN, CONTROL WIRE

1 $3.52 $2.49
17 90002-RDK-000 90002-RDK-000 / NUT, HEX. (8MM)

1 $1.37 $0.97
18 90439-RDK-000 90439-RDK-000 / WASHER, LOCK (8MM)

1 $2.18 $1.55
19 90471-RGR-000 90471-RGR-000 / WASHER, DRAIN PLUG (12MM)

4 $1.75 $1.24
20 90715-SDA-000 90715-SDA-000 / PIN, SNAP (8MM)

1 $2.03 $1.44
21 91209-612-003 91209-612-003 / OIL SEAL (12X22X7) (ARAI)

1 $6.23 $4.41
22 91305-PN4-003 91305-PN4-003 / O-RING (37.7X3.5) (ARAI)

1 $3.15 $2.23
23 91314-PC9-004 91314-PC9-004 / O-RING (8.5X1.9) (NOK)

1 $2.35 $1.66
24 93403-06025-08 93403-06025-08 / BOLT-WASHER (6X25)

2 $1.20 $0.85
25 94111-08800 94111-08800 / WASHER, SPRING (8MM)

1 $0.53 $0.38
26 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

4 $1.00 $0.71
27 95701-06014-08 95701-06014-08 / BOLT, FLANGE (6X14)

3 $0.88 $0.63
28 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

2 $0.22 $0.15
