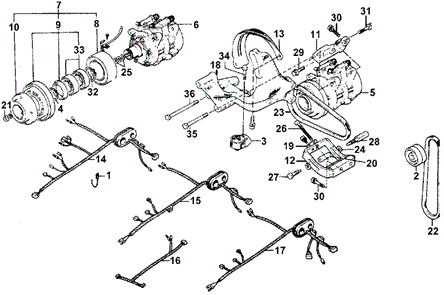

COMPRESSOR ASSY. in BODY / AIR CONDITIONING/A/C COMPRESSOR - CLUTCH - WIRE HARNESS for 1977 Honda ACCORD HATCHBACK

COMPRESSOR ASSY. in BODY / AIR CONDITIONING/A/C COMPRESSOR - CLUTCH - WIRE HARNESS for 1977 Honda ACCORD HATCHBACK #1
16
  • SUB-WIRE HARNESS
20
  • PIPE, ADJUSTING - $1.33
28
  • BOLT, HEX. (10X28) - $2.42
35
  • BOLT, FLANGE (10X80) - $1.27
36
  • BOLT, FLANGE (10X125) - $1.96
31
  • BOLT, HEX. (10X50)
23
  • BELT, COMPRESSOR - $9.44
18
  • BRACKET, ALTERNATOR
26
  • BOLT, HEX. (6X80)
29
  • BOLT, HEX. (10X35)
30
  • BOLT, HEX. (10X28) - $2.44
21
  • NUT
8
  • STATOR
10
  • PLATE, PRESSURE
12
  • MOUNT, COMPRESSOR
33
  • BEARING, BALL
24
  • WASHER, PLATE (4MM) - $0.24
6
  • COMPRESSOR ASSY.
1
  • CLAMP, HARNESS
5
  • COMPRESSOR ASSY.
34
  • BOLT, ALTERNATOR
15
  • WIRE HARNESS, AIR CONDITIONER
30
  • BOLT, HEX. (10X28) - $2.44
22
  • BELT, ALTERNATOR - $7.20
17
  • WIRE HARNESS, AIR CONDITIONER
2
  • PULLEY, ALTERNATOR - $10.99
4
  • RING A, SNAP - $4.19
25
  • WASHER, ADJUSTER (0.5MM)
  • WASHER A, PLATE
  • WASHER, ADJUSTER (1.5MM)
  • WASHER, ADJUSTER (2.0MM)
  • WASHER, ADJUSTER (2.5MM)
  • WASHER, ADJUSTER (0.8MM)
  • WASHER, ADJUSTER (1.0MM)
3
  • RUBBER, ENGINE SIDE MOUNTING - $10.41
32
  • RING, SNAP
19
  • PLATE, LOCK - $0.35
27
  • BOLT, HEX. (10X28) - $2.42
9
  • ROTOR ASSY.
7
  • CLUTCH, MAGNETIC - $104.75
11
  • MOUNT, COMPRESSOR
13
  • COVER, ALTERNATOR FAN - $5.76
No. Part # Part # / Description Qty Req. List Price Price
1 N016361-0670 N016361-0670 / CLAMP, HARNESS

5 - -
2 N021041-2310 N021041-2310 / PULLEY, ALTERNATOR

1 $15.52 $10.99
3 N040111-0150 N040111-0150 / RUBBER, ENGINE SIDE MOUNTING

1 $14.70 $10.41
4 38812-671-003 38812-671-003 / RING A, SNAP

1 $5.92 $4.19
5 N047100-5040 N047100-5040 / COMPRESSOR ASSY.

1 - -
6 N047200-0600 N047200-0600 / COMPRESSOR ASSY.

1 - -
7 N047300-2140 N047300-2140 / CLUTCH, MAGNETIC

1 $147.96 $104.75
8 N047310-0480 N047310-0480 / STATOR

1 - -
9 N047350-0371 N047350-0371 / ROTOR ASSY.

1 - -
10 N047410-0540 N047410-0540 / PLATE, PRESSURE

1 - -
11 N146260-1770 N146260-1770 / MOUNT, COMPRESSOR

1 - -
12 N146263-1130 N146263-1130 / MOUNT, COMPRESSOR

1 - -
13 N146371-0700 N146371-0700 / COVER, ALTERNATOR FAN

1 $8.13 $5.76
15 N146410-3710 N146410-3710 / WIRE HARNESS, AIR CONDITIONER

1 - -
16 N146410-3720 N146410-3720 / SUB-WIRE HARNESS

1 - -
17 N146410-4630 N146410-4630 / WIRE HARNESS, AIR CONDITIONER

1 - -
18 N146610-0950 N146610-0950 / BRACKET, ALTERNATOR

1 - -
19 N146641-3400 N146641-3400 / PLATE, LOCK

1 $0.50 $0.35
20 N146651-0460 N146651-0460 / PIPE, ADJUSTING

1 $1.89 $1.33
21 N90180-08651 N90180-08651 / NUT

1 - -
22 N908601-0601 N908601-0601 / BELT, ALTERNATOR

1 $10.17 $7.20
23 N90871-08101 N90871-08101 / BELT, COMPRESSOR

1 $13.30 $9.44
24 N949011-6890 N949011-6890 / WASHER, PLATE (4MM)

2 $0.33 $0.24
25 N949011-2750 N949011-2750 / WASHER, ADJUSTER (0.5MM)

0 - -
25 N949013-2610 N949013-2610 / WASHER A, PLATE

0 - -
25 N949011-2780 N949011-2780 / WASHER, ADJUSTER (1.5MM)

0 - -
25 N949011-2790 N949011-2790 / WASHER, ADJUSTER (2.0MM)

0 - -
25 N949011-2800 N949011-2800 / WASHER, ADJUSTER (2.5MM)

0 - -
25 N949011-2760 N949011-2760 / WASHER, ADJUSTER (0.8MM)

0 - -
25 N949011-2770 N949011-2770 / WASHER, ADJUSTER (1.0MM)

0 - -
26 N949040-4200 N949040-4200 / BOLT, HEX. (6X80)

1 - -
27 N9490-404-630 N9490-404-630 / BOLT, HEX. (10X28)

1 $3.41 $2.42
28 N949040-4640 N949040-4640 / BOLT, HEX. (10X28)

1 $3.41 $2.42
29 N949040-4731 N949040-4731 / BOLT, HEX. (10X35)

1 - -
30 N949040-4740 N949040-4740 / BOLT, HEX. (10X28)

2 $3.45 $2.44
31 N949040-4751 N949040-4751 / BOLT, HEX. (10X50)

1 - -
32 N949070-0310 N949070-0310 / RING, SNAP

1 - -
33 N949100-2550 N949100-2550 / BEARING, BALL

2 - -
34 38767-657-810 38767-657-810 / BOLT, ALTERNATOR

2 - -
35 95701-10080-08 95701-10080-08 / BOLT, FLANGE (10X80)

1 $1.80 $1.27
36 95701-10125-08 95701-10125-08 / BOLT, FLANGE (10X125)

1 $2.77 $1.96
