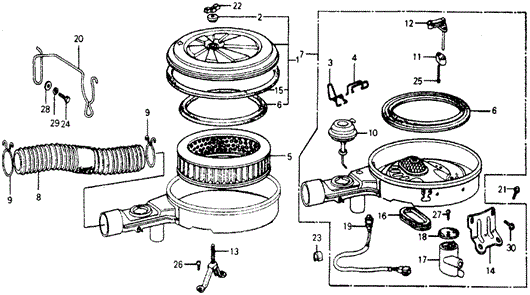

CASE ASSY., CLEANER in ELECTRICAL / EXHAUST / HEATER / FUEL/AIR CLEANER for 1977 Honda ACCORD HATCHBACK

CASE ASSY., CLEANER in ELECTRICAL / EXHAUST / HEATER / FUEL/AIR CLEANER for 1977 Honda ACCORD HATCHBACK #1
2
  • WASHER, AIR CLEANER - $4.35
24
  • BOLT, HEX. (6X10) - $0.54
13
  • BOLT, AIR CLEANER
9
  • CLIP, AIR IN. TUBE
9
  • CLIP, AIR IN. TUBE
1
  • COVER, AIR CLEANER
20
  • STAY, AIR HOSE
18
  • GASKET, BREATHER
10
  • DIAPHRAGM, CONTROL VALVE
12
  • SENSOR, AIR IN.
25
  • SCREW, PAN (4X20) - $0.39
28
  • WASHER, PLAIN (6MM) - $0.25
15
  • GASKET, CLEANER COVER
27
  • SCREW, TAPPING (6X16)
4
  • CLIP B, WIRE
11
  • INSULATOR, SENSOR - $2.83
6
  • GASKET, ELEMENT
17
  • CHAMBER, BREATHER
21
  • BOLT, FLANGE (6X10) - $2.15
5
  • ELEMENT, AIR CLEANER
  • ELEMENT, AIR CLEANER
3
  • CLIP A, WIRE (DACRO COATING) - $3.47
6
  • GASKET, ELEMENT
29
  • WASHER, SPRING (6MM) - $0.35
22
  • NUT, AIR CLEANER COVER (DACRO COATING) - $2.96
8
  • PIPE, AIR IN.
26
  • SCREW, PAN (6X12) - $0.42
30
  • BOLT, FLANGE (6X10) - $0.61
  • BOLT, FLANGE (6X10) - $0.61
16
  • INSULATOR, CLEANER CASE
14
  • STAY, CLEANER CASE
  • STAY, CLEANER CASE
7
  • CASE ASSY., CLEANER
No. Part # Part # / Description Qty Req. List Price Price
1 17210-671-010 17210-671-010 / COVER, AIR CLEANER

1 - -
2 17212-611-000 17212-611-000 / WASHER, AIR CLEANER

1 $6.15 $4.35
3 17216-671-000 17216-671-000 / CLIP A, WIRE (DACRO COATING)

3 $4.91 $3.47
4 17217-671-000 17217-671-000 / CLIP B, WIRE

3 - -
5 17220-PA6-023 17220-PA6-023 / ELEMENT, AIR CLEANER

1 - -
5 17220-PA6-023 17220-PA6-023 / ELEMENT, AIR CLEANER

1 - -
6 17221-657-310 17221-657-310 / GASKET, ELEMENT

2 - -
7 17240-671-661 17240-671-661 / CASE ASSY., CLEANER

1 - -
8 17242-671-000 17242-671-000 / PIPE, AIR IN.

1 - -
9 17243-671-000 17243-671-000 / CLIP, AIR IN. TUBE

2 - -
10 17245-PG6-000 17245-PG6-000 / DIAPHRAGM, CONTROL VALVE

1 - -
11 17247-611-000 17247-611-000 / INSULATOR, SENSOR

1 $4.00 $2.83
12 17250-657-000 17250-657-000 / SENSOR, AIR IN.

1 - -
13 17254-671-000 17254-671-000 / BOLT, AIR CLEANER

1 - -
14 17255-671-010 17255-671-010 / STAY, CLEANER CASE

1 - -
14 17255-676-000 17255-676-000 / STAY, CLEANER CASE

1 - -
15 17258-671-000 17258-671-000 / GASKET, CLEANER COVER

1 - -
16 17266-657-010 17266-657-010 / INSULATOR, CLEANER CASE

1 - -
17 17271-657-310 17271-657-310 / CHAMBER, BREATHER

1 - -
18 17272-657-000 17272-657-000 / GASKET, BREATHER

1 - -
20 60542-671-000 60542-671-000 / STAY, AIR HOSE

1 - -
21 90083-657-000 90083-657-000 / BOLT, FLANGE (6X10)

2 $3.03 $2.15
22 90203-PB2-000 90203-PB2-000 / NUT, AIR CLEANER COVER (DACRO COATING)

1 $4.18 $2.96
24 92101-06010-0A 92101-06010-0A / BOLT, HEX. (6X10)

1 $0.77 $0.54
25 93500-04020-0H 93500-04020-0H / SCREW, PAN (4X20)

1 $0.55 $0.39
26 93500-06012-0A 93500-06012-0A / SCREW, PAN (6X12)

2 $0.60 $0.42
27 93901-36210 93901-36210 / SCREW, TAPPING (6X16)

1 - -
28 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

1 $0.35 $0.25
29 94111-06000 94111-06000 / WASHER, SPRING (6MM)

1 $0.50 $0.35
30 95701-06010-08 95701-06010-08 / BOLT, FLANGE (6X10)

2 $0.87 $0.61
30 95700-06010-08 95700-06010-08 / BOLT, FLANGE (6X10)

2 $0.87 $0.61
