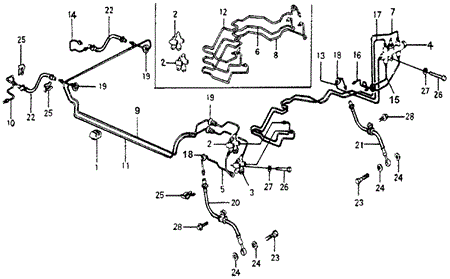

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE HOSE - BRAKE PIPE for 1978 Honda ACCORD HATCHBACK

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE HOSE - BRAKE PIPE for 1978 Honda ACCORD HATCHBACK #1
25
  • CLIP, BRAKE HOSE - $3.25
9
  • PIPE C, BRAKE
26
  • BOLT, HEX. (6X40) - $0.71
2
  • VALVE ASSY., PROPORTIONING
24
  • WASHER, OIL BOLT - $1.84
  • GASKET, OIL BOLT - $2.23
10
  • PIPE E, R. BRAKE
26
  • BOLT, HEX. (6X40) - $0.71
21
  • HOSE, L. FR. BRAKE (NICHIRIN) - $28.26
6
  • PIPE B, BRAKE
1
  • RUBBER, PIPE PROTECTOR
22
  • HOSE, RR. BRAKE (MEIJI)
  • HOSE, RR. BRAKE (MEIJI)
  • HOSE, RR. BRAKE (NICHIRIN)
  • HOSE, RR. BRAKE (MEIJI)
  • HOSE, RR. BRAKE (NICHIRIN)
  • HOSE, RR. BRAKE (MEIJI)
22
  • HOSE, RR. BRAKE (MEIJI)
  • HOSE, RR. BRAKE (MEIJI)
  • HOSE, RR. BRAKE (NICHIRIN)
  • HOSE, RR. BRAKE (MEIJI)
  • HOSE, RR. BRAKE (NICHIRIN)
  • HOSE, RR. BRAKE (MEIJI)
11
  • PIPE D, BRAKE
23
  • BOLT, OIL - $3.91
25
  • CLIP, BRAKE HOSE - $3.25
8
  • PIPE H, BRAKE
27
  • WASHER, SPRING (6MM) - $0.42
2
  • VALVE ASSY., PROPORTIONING
19
  • GROMMET, BRAKE PIPE
24
  • WASHER, OIL BOLT - $1.84
  • GASKET, OIL BOLT - $2.23
24
  • WASHER, OIL BOLT - $1.84
  • GASKET, OIL BOLT - $2.23
18
  • GROMMET A, BRAKE PIPE
5
  • PIPE A, BRAKE
19
  • GROMMET, BRAKE PIPE
12
  • PIPE F, BRAKE
24
  • WASHER, OIL BOLT - $1.84
  • GASKET, OIL BOLT - $2.23
28
  • BOLT, FLANGE (6X10) - $0.61
  • BOLT, FLANGE (6X10) - $0.61
19
  • GROMMET, BRAKE PIPE
2
  • VALVE ASSY., PROPORTIONING
20
  • HOSE, R. FR. BRAKE - $29.56
14
  • PIPE E, L. BRAKE
27
  • WASHER, SPRING (6MM) - $0.42
18
  • GROMMET A, BRAKE PIPE
28
  • BOLT, FLANGE (6X10) - $0.61
  • BOLT, FLANGE (6X10) - $0.61
25
  • CLIP, BRAKE HOSE - $3.25
23
  • BOLT, OIL - $3.91
No. Part # Part # / Description Qty Req. List Price Price
1 17705-671-010 17705-671-010 / RUBBER, PIPE PROTECTOR

2 - -
2 46210-671-003 46210-671-003 / VALVE ASSY., PROPORTIONING

2 - -
5 46310-671-620 46310-671-620 / PIPE A, BRAKE

1 - -
6 46320-671-641 46320-671-641 / PIPE B, BRAKE

1 - -
8 46321-671-641 46321-671-641 / PIPE H, BRAKE

1 - -
9 46330-671-000 46330-671-000 / PIPE C, BRAKE

1 - -
10 46331-671-620 46331-671-620 / PIPE E, R. BRAKE

1 - -
11 46340-671-010 46340-671-010 / PIPE D, BRAKE

1 - -
12 46360-671-641 46360-671-641 / PIPE F, BRAKE

1 - -
14 46361-671-620 46361-671-620 / PIPE E, L. BRAKE

1 - -
18 46380-579-300 46380-579-300 / GROMMET A, BRAKE PIPE

2 - -
19 46381-594-300 46381-594-300 / GROMMET, BRAKE PIPE

4 - -
20 46410-671-003P 46410-671-003P / HOSE, R. FR. BRAKE

1 $41.75 $29.56
21 46414-671-315 46414-671-315 / HOSE, L. FR. BRAKE (NICHIRIN)

1 $39.92 $28.26
22 46430-671-003 46430-671-003 / HOSE, RR. BRAKE (MEIJI)

2 - -
22 46430-671-003 46430-671-003 / HOSE, RR. BRAKE (MEIJI)

2 - -
22 46430-671-003 46430-671-003 / HOSE, RR. BRAKE (NICHIRIN)

2 - -
22 46430-671-003 46430-671-003 / HOSE, RR. BRAKE (MEIJI)

2 - -
22 46430-671-003 46430-671-003 / HOSE, RR. BRAKE (NICHIRIN)

2 - -
22 46430-671-003 46430-671-003 / HOSE, RR. BRAKE (MEIJI)

2 - -
23 46462-SE0-000 46462-SE0-000 / BOLT, OIL

2 $5.52 $3.91
24 90545-300-000 90545-300-000 / WASHER, OIL BOLT

4 $2.60 $1.84
24 46472-568-000 46472-568-000 / GASKET, OIL BOLT

4 $3.15 $2.23
25 90651-538-000 90651-538-000 / CLIP, BRAKE HOSE

6 $4.58 $3.25
26 92101-06040-0H 92101-06040-0H / BOLT, HEX. (6X40)

2 $1.00 $0.71
27 94111-06800 94111-06800 / WASHER, SPRING (6MM)

2 $0.60 $0.42
28 95700-06010-08 95700-06010-08 / BOLT, FLANGE (6X10)

2 $0.87 $0.61
28 95701-06010-08 95701-06010-08 / BOLT, FLANGE (6X10)

2 $0.87 $0.61
