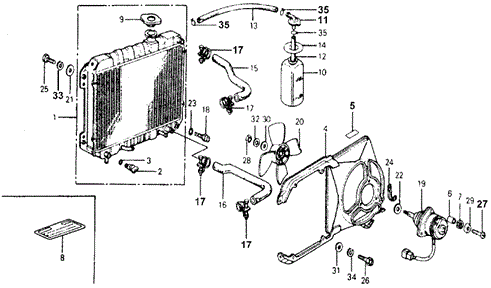

RADIATOR (DENSO) in ELECTRICAL / EXHAUST / HEATER / FUEL/RADIATOR for 1978 Honda ACCORD HATCHBACK

RADIATOR (DENSO) in ELECTRICAL / EXHAUST / HEATER / FUEL/RADIATOR for 1978 Honda ACCORD HATCHBACK #1
23
  • O-RING (13.5X1.4) - $1.31
27
  • SCREW, PAN (4X18) - $0.39
11
  • CAP, RESERVOIR TANK
30
  • WASHER, PLAIN (5MM) - $0.38
1
  • RADIATOR (DENSO)
8
  • LABEL, RADIATOR CAUTION
31
  • WASHER, PLAIN (6MM) - $0.25
25
  • BOLT, HEX. (6X16) - $0.53
23
  • O-RING (13.5X1.4) - $1.31
17
  • CLAMP, WATER HOSE
33
  • WASHER, SPRING (6MM) - $0.40
18
  • SWITCH ASSY., THERMOSTAT (A-90) (NIPPON THERMOSTAT) - $38.37
24
  • CLIP, WIRE - $3.80
35
  • CLIP, TUBE (C11) - $0.64
29
  • WASHER, PLAIN (4MM) - $0.38
4
  • SHROUD (DENSO)
20
  • FAN, COOLING
11
  • CAP, RESERVOIR TANK
25
  • BOLT, HEX. (6X16) - $0.53
10
  • TANK, RESERVE
2
  • BOLT, DRAIN (DENSO) - $4.66
9
  • CAP, RADIATOR (DENSO) - $17.84
22
  • WASHER, PLAIN (5MM) - $0.38
19
  • MOTOR, FAN
12
  • HOSE, RESERVE TANK
19
  • MOTOR, FAN
5
  • LABEL, FAN CAUTION
  • LABEL, FAN CAUTION
26
  • BOLT, HEX. (6X20) - $0.58
10
  • TANK, RESERVE
34
  • WASHER, SPRING (6MM) - $0.42
3
  • GASKET, DRAIN (DENSO) - $1.46
14
  • MARK, RESERVE TANK
34
  • WASHER, SPRING (6MM) - $0.42
3
  • GASKET, DRAIN (DENSO) - $1.46
9
  • CAP, RADIATOR (DENSO) - $17.84
35
  • CLIP, TUBE (C11) - $0.64
17
  • CLAMP, WATER HOSE
13
  • TUBE, RESERVOIR TANK
35
  • CLIP, TUBE (C11) - $0.64
1
  • RADIATOR (DENSO)
16
  • HOSE, WATER (LOWER)
17
  • CLAMP, WATER HOSE
8
  • LABEL, RADIATOR CAUTION
17
  • CLAMP, WATER HOSE
17
  • CLAMP, WATER HOSE
2
  • BOLT, DRAIN (DENSO) - $4.66
15
  • HOSE, WATER (UPPER)
33
  • WASHER, SPRING (6MM) - $0.40
32
  • WASHER, SPRING (5MM) - $0.42
18
  • SWITCH ASSY., THERMOSTAT (A-90) (NIPPON THERMOSTAT) - $38.37
35
  • CLIP, TUBE (C11) - $0.64
28
  • NUT, HEX. (5MM) - $0.41
17
  • CLAMP, WATER HOSE
5
  • LABEL, FAN CAUTION
  • LABEL, FAN CAUTION
4
  • SHROUD (DENSO)
29
  • WASHER, PLAIN (4MM) - $0.38
28
  • NUT, HEX. (5MM) - $0.41
15
  • HOSE, WATER (UPPER)
21
  • WASHER, SPECIAL (6MM) - $1.79
26
  • BOLT, HEX. (6X20) - $0.58
32
  • WASHER, SPRING (5MM) - $0.42
21
  • WASHER, SPECIAL (6MM) - $1.79
24
  • CLIP, WIRE - $3.80
17
  • CLAMP, WATER HOSE
35
  • CLIP, TUBE (C11) - $0.64
13
  • TUBE, RESERVOIR TANK
16
  • HOSE, WATER (LOWER)
17
  • CLAMP, WATER HOSE
31
  • WASHER, PLAIN (6MM) - $0.25
20
  • FAN, COOLING
27
  • SCREW, PAN (4X18) - $0.39
30
  • WASHER, PLAIN (5MM) - $0.38
35
  • CLIP, TUBE (C11) - $0.64
12
  • HOSE, RESERVE TANK
22
  • WASHER, PLAIN (5MM) - $0.38
No. Part # Part # / Description Qty Req. List Price Price
1 19010-671-902 19010-671-902 / RADIATOR (DENSO)

1 - -
2 19011-671-000 19011-671-000 / BOLT, DRAIN (DENSO)

1 $6.58 $4.66
3 19012-671-300 19012-671-300 / GASKET, DRAIN (DENSO)

1 $2.07 $1.46
4 19015-671-013 19015-671-013 / SHROUD (DENSO)

1 - -
5 19018-657-000 19018-657-000 / LABEL, FAN CAUTION

1 - -
5 19018-657-000 19018-657-000 / LABEL, FAN CAUTION

1 - -
8 19043-676-640 19043-676-640 / LABEL, RADIATOR CAUTION

1 - -
9 19045-692-003 19045-692-003 / CAP, RADIATOR (DENSO)

1 $25.20 $17.84
10 19101-671-000 19101-671-000 / TANK, RESERVE

1 - -
11 19102-611-000 19102-611-000 / CAP, RESERVOIR TANK

1 - -
12 19103-671-000 19103-671-000 / HOSE, RESERVE TANK

1 - -
13 19104-671-000 19104-671-000 / TUBE, RESERVOIR TANK

1 - -
14 19105-634-010 19105-634-010 / MARK, RESERVE TANK

1 - -
15 19501-671-000 19501-671-000 / HOSE, WATER (UPPER)

1 - -
16 19502-671-000 19502-671-000 / HOSE, WATER (LOWER)

1 - -
17 19511-634-010 19511-634-010 / CLAMP, WATER HOSE

4 - -
18 37760-PB2-003 37760-PB2-003 / SWITCH ASSY., THERMOSTAT (A-90) (NIPPON THERMOSTAT)

1 $54.20 $38.37
19 19030-679-003 19030-679-003 / MOTOR, FAN

1 - -
20 38617-634-811 38617-634-811 / FAN, COOLING

1 - -
21 90438-671-000 90438-671-000 / WASHER, SPECIAL (6MM)

4 $2.53 $1.79
22 94103-05800 94103-05800 / WASHER, PLAIN (5MM)

1 $0.53 $0.38
23 91307-PH7-660 91307-PH7-660 / O-RING (13.5X1.4)

1 $1.85 $1.31
24 91405-671-000 91405-671-000 / CLIP, WIRE

1 $5.37 $3.80
25 92101-06016-0G 92101-06016-0G / BOLT, HEX. (6X16)

4 $0.75 $0.53
26 92101-06020-0H 92101-06020-0H / BOLT, HEX. (6X20)

4 $0.82 $0.58
27 93500-04018-0H 93500-04018-0H / SCREW, PAN (4X18)

3 $0.55 $0.39
28 94001-05080-0S 94001-05080-0S / NUT, HEX. (5MM)

1 $0.58 $0.41
29 94101-04800 94101-04800 / WASHER, PLAIN (4MM)

3 $0.53 $0.38
30 94101-05800 94101-05800 / WASHER, PLAIN (5MM)

1 $0.53 $0.38
31 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

4 $0.35 $0.25
32 94111-05800 94111-05800 / WASHER, SPRING (5MM)

1 $0.60 $0.42
33 94111-06700 94111-06700 / WASHER, SPRING (6MM)

4 $0.57 $0.40
34 94111-06800 94111-06800 / WASHER, SPRING (6MM)

4 $0.60 $0.42
35 95002-70000 95002-70000 / CLIP, TUBE (C11)

3 $0.90 $0.64
