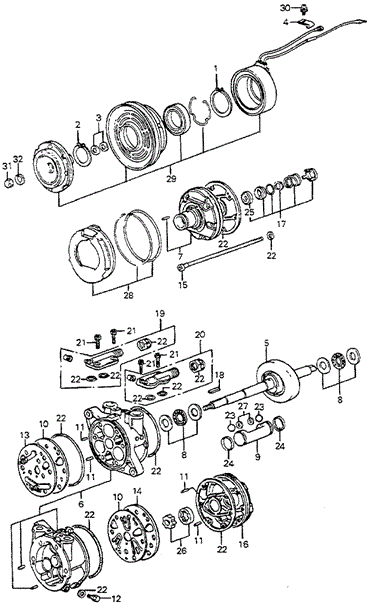

CYLINDER in BODY / AIR CONDITIONING/A/C COMPRESSOR COMPONENT (DENSO) for 1982 Honda ACCORD HATCHBACK

CYLINDER in BODY / AIR CONDITIONING/A/C COMPRESSOR COMPONENT (DENSO) for 1982 Honda ACCORD HATCHBACK #1
22
  • GASKET KIT
8
  • BEARING
21
  • BOLT B - $4.45
22
  • GASKET KIT
22
  • GASKET KIT
7
  • CYLINDER HEAD
19
  • VALVE, SUCTION
9
  • PISTON
21
  • BOLT B - $4.45
6
  • CYLINDER
5
  • MAINSHAFT
21
  • BOLT B - $4.45
32
  • WASHER, SPRING (8MM) - $0.38
22
  • GASKET KIT
21
  • BOLT B - $4.45
11
  • PIN, STRAIGHT
4
  • CLIP, LEAD WIRE - $2.29
22
  • GASKET KIT
10
  • LEAD, SUCTION VALVE
13
  • PLATE A, VALVE
22
  • GASKET KIT
1
  • CIRCLIP A (OUTER)
22
  • GASKET KIT
8
  • BEARING
3
  • WASHER B, PLATE
  • WASHER A, PLATE
  • WASHER C, PLATE
12
  • BOLT A
30
  • SCREW-WASHER (5X10) - $0.57
10
  • LEAD, SUCTION VALVE
14
  • PLATE B, VALVE
27
  • SHOE KIT
28
  • COVER
22
  • GASKET KIT
2
  • RING A, SNAP - $4.19
22
  • GASKET KIT
11
  • PIN, STRAIGHT
16
  • CYLINDER HEAD
24
  • RING, PISTON
17
  • SEAL, SHAFT
20
  • VALVE, DISCHARGE
25
  • OIL SEAL - $5.03
22
  • GASKET KIT
18
  • KEY
11
  • PIN, STRAIGHT
22
  • GASKET KIT
24
  • RING, PISTON
31
  • NUT, HEX. (8MM) - $0.42
11
  • PIN, STRAIGHT
26
  • PUMP, OIL
15
  • BOLT B
22
  • GASKET KIT
22
  • GASKET KIT
29
  • CLUTCH, MAGNETIC
23
  • BALL, PISTON
23
  • BALL, PISTON
No. Part # Part # / Description Qty Req. List Price Price
1 N949070-0310 N949070-0310 / CIRCLIP A (OUTER)

1 - -
2 38812-671-003 38812-671-003 / RING A, SNAP

1 $5.92 $4.19
3 N949013-2610 N949013-2610 / WASHER B, PLATE

1 - -
3 N949013-2610 N949013-2610 / WASHER A, PLATE

1 - -
3 N949011-2750 N949011-2750 / WASHER C, PLATE

1 - -
4 38816-689-003 38816-689-003 / CLIP, LEAD WIRE

1 $3.24 $2.29
5 38817-PC1-003 38817-PC1-003 / MAINSHAFT

1 - -
6 38818-PC1-003 38818-PC1-003 / CYLINDER

1 - -
7 38819-PC1-003 38819-PC1-003 / CYLINDER HEAD

1 - -
8 38822-PC1-003 38822-PC1-003 / BEARING

1 - -
9 38823-PC1-003 38823-PC1-003 / PISTON

3 - -
10 38824-PC1-003 38824-PC1-003 / LEAD, SUCTION VALVE

2 - -
11 38825-671-003 38825-671-003 / PIN, STRAIGHT

4 - -
12 38827-PC1-003 38827-PC1-003 / BOLT A

1 - -
13 38828-PC1-003 38828-PC1-003 / PLATE A, VALVE

1 - -
14 38829-PC1-003 38829-PC1-003 / PLATE B, VALVE

1 - -
15 38832-PC1-003 38832-PC1-003 / BOLT B

6 - -
16 38833-PC1-003 38833-PC1-003 / CYLINDER HEAD

1 - -
17 38834-PC1-003 38834-PC1-003 / SEAL, SHAFT

1 - -
18 38836-PC1-003 38836-PC1-003 / KEY

1 - -
19 38838-PC1-003 38838-PC1-003 / VALVE, SUCTION

1 - -
20 38839-PC1-003 38839-PC1-003 / VALVE, DISCHARGE

1 - -
21 38840-PC1-003 38840-PC1-003 / BOLT B

4 $6.28 $4.45
22 38842-PC1-003 38842-PC1-003 / GASKET KIT

1 - -
23 38843-PC1-003 38843-PC1-003 / BALL, PISTON

6 - -
24 38844-PC1-003 38844-PC1-003 / RING, PISTON

6 - -
25 38846-PC1-003 38846-PC1-003 / OIL SEAL

1 $7.10 $5.03
26 38848-PC1-003 38848-PC1-003 / PUMP, OIL

1 - -
27 38854-PC1-003 38854-PC1-003 / SHOE KIT

1 - -
28 38855-PC1-003 38855-PC1-003 / COVER

1 - -
29 38900-PC1-003 38900-PC1-003 / CLUTCH, MAGNETIC

1 - -
30 93893-05010-08 93893-05010-08 / SCREW-WASHER (5X10)

1 $0.80 $0.57
31 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

1 $0.60 $0.42
32 94111-08000 94111-08000 / WASHER, SPRING (8MM)

1 $0.53 $0.38
