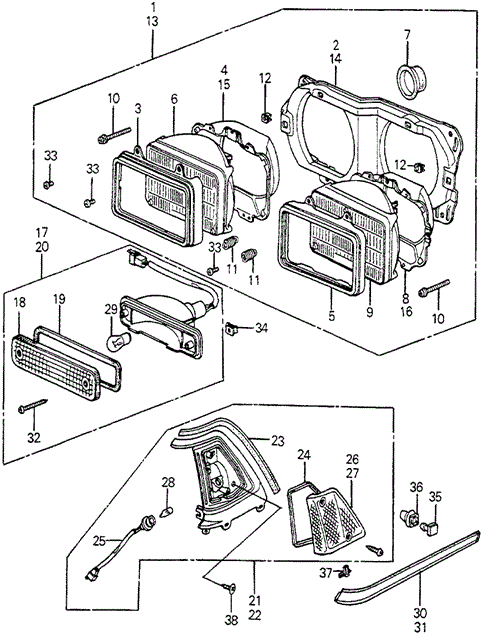

HEADLIGHT ASSY., L. (STANLEY) in ELECTRICAL / EXHAUST / HEATER / FUEL/HEADLIGHT - FRONT COMBINATION LIGHT for 1982 Honda ACCORD HATCHBACK

HEADLIGHT ASSY., L. (STANLEY) in ELECTRICAL / EXHAUST / HEATER / FUEL/HEADLIGHT - FRONT COMBINATION LIGHT for 1982 Honda ACCORD HATCHBACK #1
15
  • RING, L. SETTING (INNER) (TYPE1)
24
  • GASKET, LENS
25
  • WIRE
38
  • SCREW, TAPPING (5X12) - $0.73
13
  • HEADLIGHT ASSY., L. (STANLEY)
33
  • SCREW, TAPPING (4X8)
12
  • NUT, NYLON CAP - $3.12
20
  • LIGHT ASSY., L. FR. COMBINATION
35
  • CLIP, RR. APRON SIDE MOLDING
5
  • RING, RETAINING
22
  • LIGHT ASSY., L. FR. SIDE MARKER
14
  • CASE, L. HEADLIGHT
33
  • SCREW, TAPPING (4X8)
29
  • BULB, STOP & TAILLIGHT (12V 27/7W) - $2.07
9
  • SEALED BEAM UNIT (TYPE2A1) (GE)
33
  • SCREW, TAPPING (4X8)
16
  • RING, L. MOUNTING (OUTER) (TYPE2)
3
  • RING, RETAINING - $21.54
32
  • SCREW, PAN (4X35)
8
  • RING, R. MOUNTING (TYPE2)
7
  • COVER, RUBBER
30
  • MOLDING, R. FR. APRON SIDE
17
  • LIGHT ASSY., R. FR. COMBINATION
2
  • CASE, R. HEADLIGHT
6
  • SEALED BEAM UNIT (TYPE1) (STANLEY) - $5.45
  • SEALED BEAM UNIT (TYPE1A1) (GE) - $5.45
28
  • BULB (12V 2CP) - $1.37
10
  • SCREW, ADJUSTING - $3.67
10
  • SCREW, ADJUSTING - $3.67
21
  • LIGHT ASSY., R. FR. SIDE MARKER - $31.07
4
  • RING, R. SETTING (TYPE1)
11
  • SPRING, ADJUSTER (STANLEY) - $4.11
36
  • BUSH, RR. SIDE MOLDING - $3.01
19
  • GASKET
12
  • NUT, NYLON CAP - $3.12
26
  • LENS, R.
27
  • LENS, L.
37
  • GROMMET, FR. SIDE MOLDING
18
  • LENS, FR. COMBINATION LIGHT
11
  • SPRING, ADJUSTER (STANLEY) - $4.11
34
  • NUT, FR. COMBINATION LIGHT - $2.43
31
  • MOLDING, L. FR. APRON SIDE
1
  • HEADLIGHT ASSY., R. (STANLEY)
23
  • GASKET
No. Part # Part # / Description Qty Req. List Price Price
1 33100-SA6-772 33100-SA6-772 / HEADLIGHT ASSY., R. (STANLEY)

1 - -
2 33101-SA5-671 33101-SA5-671 / CASE, R. HEADLIGHT

1 - -
3 33102-SA5-671 33102-SA5-671 / RING, RETAINING

2 $30.42 $21.54
4 33103-SA5-671 33103-SA5-671 / RING, R. SETTING (TYPE1)

1 - -
5 33104-SA5-671 33104-SA5-671 / RING, RETAINING

2 - -
6 33110-SA5-771AH 33110-SA5-771AH / SEALED BEAM UNIT (TYPE1) (STANLEY)

2 $7.70 $5.45
6 33110-SA5-771AH 33110-SA5-771AH / SEALED BEAM UNIT (TYPE1A1) (GE)

2 $7.70 $5.45
7 33112-692-671 33112-692-671 / COVER, RUBBER

4 - -
8 33127-SA5-671 33127-SA5-671 / RING, R. MOUNTING (TYPE2)

1 - -
9 33135-SA5-771AH 33135-SA5-771AH / SEALED BEAM UNIT (TYPE2A1) (GE)

2 - -
10 33143-SA5-671 33143-SA5-671 / SCREW, ADJUSTING

8 $5.18 $3.67
11 33144-692-671 33144-692-671 / SPRING, ADJUSTER (STANLEY)

4 $5.80 $4.11
12 33145-657-671 33145-657-671 / NUT, NYLON CAP

8 $4.40 $3.12
13 33150-SA6-772 33150-SA6-772 / HEADLIGHT ASSY., L. (STANLEY)

1 - -
14 33151-SA5-671 33151-SA5-671 / CASE, L. HEADLIGHT

1 - -
15 33153-SA5-671 33153-SA5-671 / RING, L. SETTING (INNER) (TYPE1)

1 - -
16 33177-SA5-671 33177-SA5-671 / RING, L. MOUNTING (OUTER) (TYPE2)

1 - -
17 33300-SA5-673 33300-SA5-673 / LIGHT ASSY., R. FR. COMBINATION

1 - -
18 33302-SA5-671 33302-SA5-671 / LENS, FR. COMBINATION LIGHT

2 - -
19 33305-SA5-941 33305-SA5-941 / GASKET

2 - -
20 33350-SA5-673 33350-SA5-673 / LIGHT ASSY., L. FR. COMBINATION

1 - -
21 33800-SA5-673 33800-SA5-673 / LIGHT ASSY., R. FR. SIDE MARKER

1 $43.88 $31.07
22 33850-SA5-672 33850-SA5-672 / LIGHT ASSY., L. FR. SIDE MARKER

1 - -
23 34303-SA5-671 34303-SA5-671 / GASKET

2 - -
24 34304-SA5-671 34304-SA5-671 / GASKET, LENS

2 - -
25 34305-SA5-003 34305-SA5-003 / WIRE

2 - -
26 34801-SA5-671 34801-SA5-671 / LENS, R.

1 - -
27 34851-SA5-671 34851-SA5-671 / LENS, L.

1 - -
28 34901-671-671 34901-671-671 / BULB (12V 2CP)

2 $1.93 $1.37
29 34906-MG9-771 34906-MG9-771 / BULB, STOP & TAILLIGHT (12V 27/7W)

2 $2.92 $2.07
30 62324-SA5-000 62324-SA5-000 / MOLDING, R. FR. APRON SIDE

1 - -
31 62329-SA5-000 62329-SA5-000 / MOLDING, L. FR. APRON SIDE

1 - -
32 93901-448J0 93901-448J0 / SCREW, PAN (4X35)

4 - -
33 90160-688-003 90160-688-003 / SCREW, TAPPING (4X8)

16 - -
34 90303-SA5-003 90303-SA5-003 / NUT, FR. COMBINATION LIGHT

4 $3.43 $2.43
35 90663-SA5-003 90663-SA5-003 / CLIP, RR. APRON SIDE MOLDING

2 - -
36 90667-SA5-003 90667-SA5-003 / BUSH, RR. SIDE MOLDING

2 $4.25 $3.01
37 90678-SA5-000 90678-SA5-000 / GROMMET, FR. SIDE MOLDING

2 - -
38 93903-452J0 93903-452J0 / SCREW, TAPPING (5X12)

4 $1.03 $0.73
