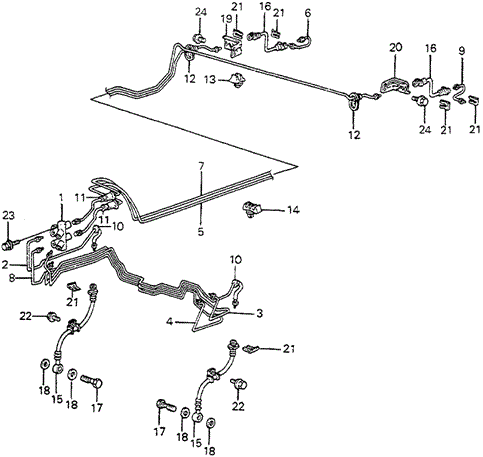

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE LINES for 1983 Honda ACCORD HATCHBACK

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE LINES for 1983 Honda ACCORD HATCHBACK #1
18
  • GASKET, OIL BOLT - $2.23
  • WASHER, OIL BOLT - $1.84
4
  • PIPE H, BRAKE
19
  • BRACKET, R. RR. BRAKE HOSE
21
  • CLIP, BRAKE HOSE - $3.25
7
  • PIPE D, BRAKE
10
  • GROMMET A, BRAKE PIPE
6
  • PIPE E, R. BRAKE
14
  • CLIP D, BRAKE PIPE (WHITE) - $4.86
18
  • GASKET, OIL BOLT - $2.23
  • WASHER, OIL BOLT - $1.84
12
  • GROMMET A, BRAKE PIPE
21
  • CLIP, BRAKE HOSE - $3.25
16
  • HOSE, RR. BRAKE (NICHIRIN)
21
  • CLIP, BRAKE HOSE - $3.25
21
  • CLIP, BRAKE HOSE - $3.25
17
  • BOLT, OIL - $3.91
20
  • BRACKET, L. RR. BRAKE HOSE
24
  • BOLT-WASHER (6X16) - $0.72
12
  • GROMMET A, BRAKE PIPE
17
  • BOLT, OIL - $3.91
18
  • GASKET, OIL BOLT - $2.23
  • WASHER, OIL BOLT - $1.84
5
  • PIPE C, BRAKE
15
  • SET,FR BRAKE HOSE - $27.40
22
  • BOLT-WASHER (6X16) - $0.63
11
  • GROMMET B, BRAKE PIPE
23
  • BOLT-WASHER (8X45) - $0.61
3
  • PIPE B, BRAKE
10
  • GROMMET A, BRAKE PIPE
21
  • CLIP, BRAKE HOSE - $3.25
1
  • VALVE ASSY., PROPORTIONING
11
  • GROMMET B, BRAKE PIPE
8
  • PIPE F, BRAKE
15
  • SET,FR BRAKE HOSE - $27.40
16
  • HOSE, RR. BRAKE (NICHIRIN)
24
  • BOLT-WASHER (6X16) - $0.72
9
  • PIPE E, L. BRAKE
2
  • PIPE A, BRAKE
22
  • BOLT-WASHER (6X16) - $0.63
21
  • CLIP, BRAKE HOSE - $3.25
18
  • GASKET, OIL BOLT - $2.23
  • WASHER, OIL BOLT - $1.84
No. Part # Part # / Description Qty Req. List Price Price
1 46210-SA5-025 46210-SA5-025 / VALVE ASSY., PROPORTIONING

1 - -
2 46310-SA5-671 46310-SA5-671 / PIPE A, BRAKE

1 - -
3 46320-SA5-670 46320-SA5-670 / PIPE B, BRAKE

1 - -
4 46321-SA5-670 46321-SA5-670 / PIPE H, BRAKE

1 - -
5 46330-SA5-000 46330-SA5-000 / PIPE C, BRAKE

1 - -
6 46331-SA5-670 46331-SA5-670 / PIPE E, R. BRAKE

1 - -
7 46340-SA5-000 46340-SA5-000 / PIPE D, BRAKE

1 - -
8 46360-SA5-671 46360-SA5-671 / PIPE F, BRAKE

1 - -
9 46361-SA5-670 46361-SA5-670 / PIPE E, L. BRAKE

1 - -
10 46380-579-300 46380-579-300 / GROMMET A, BRAKE PIPE

2 - -
11 46381-692-300 46381-692-300 / GROMMET B, BRAKE PIPE

2 - -
12 46382-SA0-300 46382-SA0-300 / GROMMET A, BRAKE PIPE

2 - -
14 46392-692-003 46392-692-003 / CLIP D, BRAKE PIPE (WHITE)

6 $6.87 $4.86
15 01464-SA5-305 01464-SA5-305 / SET,FR BRAKE HOSE

2 $38.70 $27.40
16 01466-SA5-305 01466-SA5-305 / HOSE, RR. BRAKE (NICHIRIN)

2 - -
17 46462-SE0-000 46462-SE0-000 / BOLT, OIL

2 $5.52 $3.91
18 46472-568-000 46472-568-000 / GASKET, OIL BOLT

4 $3.15 $2.23
18 90545-300-000 90545-300-000 / WASHER, OIL BOLT

4 $2.60 $1.84
19 70253-SA5-000 70253-SA5-000 / BRACKET, R. RR. BRAKE HOSE

1 - -
20 70263-SA5-000 70263-SA5-000 / BRACKET, L. RR. BRAKE HOSE

1 - -
21 90651-538-000 90651-538-000 / CLIP, BRAKE HOSE

6 $4.58 $3.25
22 93402-06016-08 93402-06016-08 / BOLT-WASHER (6X16)

2 $0.88 $0.63
23 93402-08045-08 93402-08045-08 / BOLT-WASHER (8X45)

1 $0.87 $0.61
24 93403-06016-08 93403-06016-08 / BOLT-WASHER (6X16)

2 $1.02 $0.72
