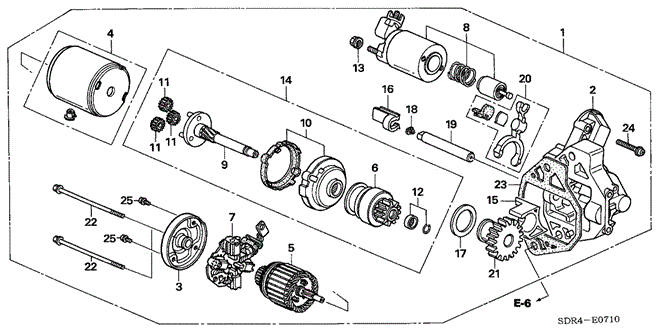

STARTER MOTOR ASSY. in ENGINE/STARTER MOTOR (MITSUBISHI) for 2006 Honda ACCORD HYBRID

STARTER MOTOR ASSY. in ENGINE/STARTER MOTOR (MITSUBISHI) for 2006 Honda ACCORD HYBRID #1
8
  • SWITCH ASSY., MAGNET - $192.93
14
  • SHAFT ASSY., CLUTCH - $401.31
11
  • GEAR ASSY., PLANETARY - $20.73
20
  • LEVER SET - $17.05
7
  • HOLDER, BRUSH - $31.79
12
  • STOPPER SET - $10.88
9
  • SHAFT ASSY., GEAR - $246.70
25
  • SCREW, FLANGE - $1.60
22
  • BOLT A, THROUGH - $1.73
15
  • HOLDER - $19.88
21
  • GEAR ASSY. - $153.20
5
  • ROTOR - $197.14
25
  • SCREW, FLANGE - $1.60
2
  • BRACKET, FR. - $213.37
11
  • GEAR ASSY., PLANETARY - $20.73
24
  • SCREW, FLANGE (6X23) - $1.26
6
  • CLUTCH, OVERRUNNING - $165.62
23
  • GASKET, STARTER MOTOR - $6.12
10
  • GEAR ASSY. (INNER) - $30.05
18
  • GASKET - $1.56
1
  • STARTER MOTOR ASSY. - $616.26
3
  • COVER ASSY. - $12.74
4
  • YOKE - $152.92
11
  • GEAR ASSY., PLANETARY - $20.73
16
  • SPACER - $2.29
19
  • SHAFT - $137.05
17
  • WASHER, PLAIN - $2.32
13
  • NUT - $3.45
22
  • BOLT A, THROUGH - $1.73
No. Part # Part # / Description Qty Req. List Price Price
1 31200-RCJ-A01 31200-RCJ-A01 / STARTER MOTOR ASSY.

1 $870.42 $616.26
2 31201-RJA-A01 31201-RJA-A01 / BRACKET, FR.

1 $301.37 $213.37
3 31202-RAA-A01 31202-RAA-A01 / COVER ASSY.

1 $18.00 $12.74
4 31205-RDJ-A01 31205-RDJ-A01 / YOKE

1 $215.98 $152.92
5 31206-RCJ-A01 31206-RCJ-A01 / ROTOR

1 $278.45 $197.14
6 31207-RDJ-A01 31207-RDJ-A01 / CLUTCH, OVERRUNNING

1 $233.93 $165.62
7 31208-RJA-A01 31208-RJA-A01 / HOLDER, BRUSH

1 $44.90 $31.79
8 31210-RCJ-A01 31210-RCJ-A01 / SWITCH ASSY., MAGNET

1 $272.50 $192.93
9 31213-RCJ-A01 31213-RCJ-A01 / SHAFT ASSY., GEAR

1 $348.45 $246.70
10 31214-RCJ-A01 31214-RCJ-A01 / GEAR ASSY. (INNER)

1 $42.45 $30.05
11 31215-PY3-004 31215-PY3-004 / GEAR ASSY., PLANETARY

3 $29.28 $20.73
12 31217-PY3-004 31217-PY3-004 / STOPPER SET

1 $15.37 $10.88
13 31220-RAA-A01 31220-RAA-A01 / NUT

1 $4.87 $3.45
14 31223-RCJ-A01 31223-RCJ-A01 / SHAFT ASSY., CLUTCH

1 $566.82 $401.31
15 31224-RDJ-A01 31224-RDJ-A01 / HOLDER

1 $28.08 $19.88
16 31225-RJA-A01 31225-RJA-A01 / SPACER

1 $3.23 $2.29
17 31227-RDJ-A01 31227-RDJ-A01 / WASHER, PLAIN

1 $3.28 $2.32
18 31228-RDJ-A01 31228-RDJ-A01 / GASKET

1 $2.20 $1.56
19 31230-RCJ-A01 31230-RCJ-A01 / SHAFT

1 $193.57 $137.05
20 31231-RDJ-A01 31231-RDJ-A01 / LEVER SET

1 $24.08 $17.05
21 31232-RDJ-A01 31232-RDJ-A01 / GEAR ASSY.

1 $216.38 $153.20
22 31261-ZW1-004 31261-ZW1-004 / BOLT A, THROUGH

2 $2.45 $1.73
23 31270-RCJ-A01 31270-RCJ-A01 / GASKET, STARTER MOTOR

1 $8.65 $6.12
24 90011-ZG5-003 90011-ZG5-003 / SCREW, FLANGE (6X23)

2 $1.78 $1.26
25 90107-P5A-005 90107-P5A-005 / SCREW, FLANGE

2 $2.27 $1.60
