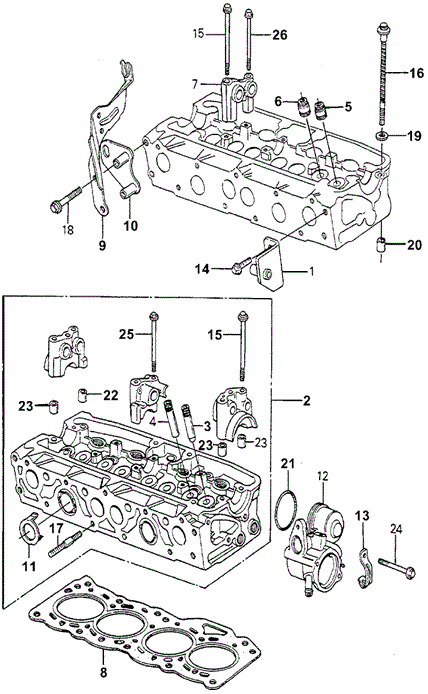

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (1) for 1979 Honda ACCORD SEDAN

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (1) for 1979 Honda ACCORD SEDAN #1
16
  • BOLT, FLANGE (10X112)
1
  • BRACKET, TORQUE ROD
25
  • BOLT, FLANGE (6X70) - $0.92
9
  • STAY, SHOT AIR VALVE
20
  • PIN, DOWEL (14X20) - $0.97
13
  • CLIP, DISTRIBUTOR WIRE HARNESS
19
  • WASHER, SPECIAL (23x11x2.3) - $2.62
22
  • PIN, DOWEL (8X14) - $0.83
10
  • BRACKET, SPACER
23
  • PIN, DOWEL (10X16) - $0.94
5
  • SEAL A, VALVE STEM - $3.37
21
  • O-RING (53.8X3.1) - $2.45
26
  • BOLT, FLANGE (6X65) - $0.81
14
  • BOLT, FLANGE (8X20) - $2.57
15
  • BOLT, FLANGE (8X77) - $3.34
6
  • SEAL B, VALVE STEM - $3.75
11
  • WASHER, PORT LINER
12
  • HOLDER, DISTRIBUTOR
24
  • BOLT, FLANGE (6X40) - $0.73
4
  • GUIDE, EX. VALVE
3
  • GUIDE, VALVE
23
  • PIN, DOWEL (10X16) - $0.94
23
  • PIN, DOWEL (10X16) - $0.94
7
  • HOLDER, CAM
17
  • BOLT, STUD (8X48)
18
  • BOLT, FLANGE (10X45) - $1.06
8
  • GASKET, CYLINDER HEAD
15
  • BOLT, FLANGE (8X77) - $3.34
2
  • CYLINDER HEAD ASSY.
No. Part # Part # / Description Qty Req. List Price Price
1 11921-657-310 11921-657-310 / BRACKET, TORQUE ROD

1 - -
2 12010-689-010 12010-689-010 / CYLINDER HEAD ASSY.

1 - -
3 12204-689-300 12204-689-300 / GUIDE, VALVE

4 - -
4 12205-689-305 12205-689-305 / GUIDE, EX. VALVE

4 - -
5 12210-689-003 12210-689-003 / SEAL A, VALVE STEM

4 $5.20 $3.37
6 12211-689-013 12211-689-013 / SEAL B, VALVE STEM

4 $5.78 $3.75
7 12232-689-000 12232-689-000 / HOLDER, CAM

2 - -
8 12251-PB2-000 12251-PB2-000 / GASKET, CYLINDER HEAD

1 - -
9 17341-689-780 17341-689-780 / STAY, SHOT AIR VALVE

1 - -
10 17342-671-000 17342-671-000 / BRACKET, SPACER

1 - -
11 18015-657-000 18015-657-000 / WASHER, PORT LINER

2 - -
12 30155-689-305 30155-689-305 / HOLDER, DISTRIBUTOR

1 - -
13 30156-689-000 30156-689-000 / CLIP, DISTRIBUTOR WIRE HARNESS

1 - -
14 90031-PH7-000 90031-PH7-000 / BOLT, FLANGE (8X20)

2 $3.63 $2.57
15 90005-634-003 90005-634-003 / BOLT, FLANGE (8X77)

7 $4.71 $3.34
16 90005-671-003 90005-671-003 / BOLT, FLANGE (10X112)

10 - -
17 90062-657-310 90062-657-310 / BOLT, STUD (8X48)

9 - -
18 95801-10045-08 95801-10045-08 / BOLT, FLANGE (10X45)

2 $1.50 $1.06
19 90438-611-010 90438-611-010 / WASHER, SPECIAL (23x11x2.3)

10 $3.69 $2.62
20 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.97
21 91302-657-000 91302-657-000 / O-RING (53.8X3.1)

1 $3.47 $2.45
22 94301-08140 94301-08140 / PIN, DOWEL (8X14)

1 $1.17 $0.83
23 94301-10160 94301-10160 / PIN, DOWEL (10X16)

5 $1.33 $0.94
24 95701-06040-08 95701-06040-08 / BOLT, FLANGE (6X40)

1 $1.03 $0.73
25 95701-06070-08 95701-06070-08 / BOLT, FLANGE (6X70)

1 $1.30 $0.92
26 95722-06065 95722-06065 / BOLT, FLANGE (6X65)

2 $1.15 $0.81
