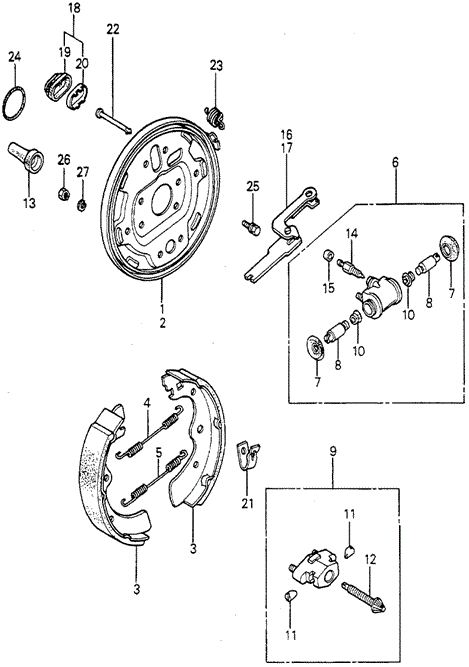

PLATE, L. RR. BACKING in CHASSIS/REAR BRAKE SHOE for 1981 Honda ACCORD SEDAN

PLATE, L. RR. BACKING in CHASSIS/REAR BRAKE SHOE for 1981 Honda ACCORD SEDAN #1
7
  • COVER, DUST
10
  • CUP, PISTON - $2.94
5
  • SPRING B, BRAKE SHOE RETURN - $4.55
13
  • CAP, BRAKE ADJUSTER
26
  • NUT, HEX. (6MM) - $0.48
19
  • BOOT, BRAKE LEVER - $5.37
11
  • PISTON, BRAKE ADJUSTER
11
  • PISTON, BRAKE ADJUSTER
9
  • ADJUSTER ASSY., BRAKE
10
  • CUP, PISTON - $2.94
6
  • CYLINDER ASSY., RR. WHEEL - $32.49
14
  • SCREW, BLEEDER - $4.18
3
  • SHOE KIT, BRAKE
2
  • PLATE, L. RR. BACKING
8
  • PISTON, WHEEL CYLINDER
17
  • LEVER, L. BRAKE
15
  • CAP, BLEEDER SCREW - $2.05
8
  • PISTON, WHEEL CYLINDER
1
  • PLATE, R. RR. BACKING
25
  • BOLT-WASHER (8X12)
22
  • PIN, TENSIONER - $1.81
12
  • BOLT, ADJUSTING
21
  • SPRING, SHOE CLAMP - $0.76
20
  • GRIP, BRAKE LEVER SEAL - $2.40
23
  • SPRING, RETURN
27
  • WASHER, SPRING (6MM) - $0.42
7
  • COVER, DUST
24
  • O-RING, FR. AXLE
3
  • SHOE KIT, BRAKE
16
  • LEVER, R. BRAKE
4
  • SPRING A, BRAKE SHOE RETURN - $4.55
No. Part # Part # / Description Qty Req. List Price Price
1 43110-634-013 43110-634-013 / PLATE, R. RR. BACKING

1 - -
2 43120-634-013 43120-634-013 / PLATE, L. RR. BACKING

1 - -
3 43053-671-307 43053-671-307 / SHOE KIT, BRAKE

4 - -
4 43171-567-000 43171-567-000 / SPRING A, BRAKE SHOE RETURN

2 $6.43 $4.55
5 43172-567-000 43172-567-000 / SPRING B, BRAKE SHOE RETURN

2 $6.43 $4.55
6 43300-671-602 43300-671-602 / CYLINDER ASSY., RR. WHEEL

2 $45.88 $32.49
7 43315-601-003P 43315-601-003P / COVER, DUST

4 - -
8 43321-SA3-681 43321-SA3-681 / PISTON, WHEEL CYLINDER

4 - -
9 43340-567-013 43340-567-013 / ADJUSTER ASSY., BRAKE

2 - -
10 43322-663-003 43322-663-003 / CUP, PISTON

4 $4.15 $2.94
11 43342-567-003 43342-567-003 / PISTON, BRAKE ADJUSTER

4 - -
12 43343-567-013 43343-567-013 / BOLT, ADJUSTING

2 - -
13 43345-567-000 43345-567-000 / CAP, BRAKE ADJUSTER

2 - -
14 43352-567-000 43352-567-000 / SCREW, BLEEDER

2 $5.90 $4.18
15 43353-548-003 43353-548-003 / CAP, BLEEDER SCREW

2 $2.90 $2.05
16 43360-634-003 43360-634-003 / LEVER, R. BRAKE

1 - -
17 43365-634-003 43365-634-003 / LEVER, L. BRAKE

1 - -
19 43431-567-300 43431-567-300 / BOOT, BRAKE LEVER

2 $7.58 $5.37
20 43432-567-300 43432-567-300 / GRIP, BRAKE LEVER SEAL

2 $3.38 $2.40
21 45172-S04-003 45172-S04-003 / SPRING, SHOE CLAMP

4 $1.07 $0.76
22 45175-SA0-013 45175-SA0-013 / PIN, TENSIONER

4 $2.55 $1.81
23 47950-SA0-901 47950-SA0-901 / SPRING, RETURN

2 - -
24 91352-679-003 91352-679-003 / O-RING, FR. AXLE

2 - -
25 93402-08012-08 93402-08012-08 / BOLT-WASHER (8X12)

8 - -
26 94001-06080-0S 94001-06080-0S / NUT, HEX. (6MM)

8 $0.68 $0.48
27 94111-06800 94111-06800 / WASHER, SPRING (6MM)

8 $0.60 $0.42
