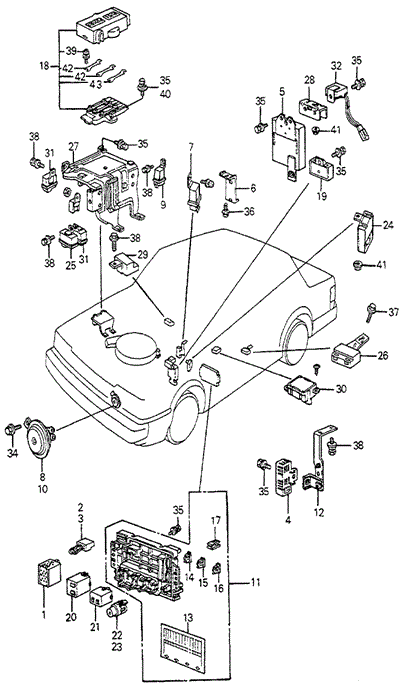

CONTROLLER, AUTO CRUISE in ELECTRICAL / EXHAUST / HEATER / FUEL/MAIN FUSE BOX - HORN for 1982 Honda ACCORD SEDAN

CONTROLLER, AUTO CRUISE in ELECTRICAL / EXHAUST / HEATER / FUEL/MAIN FUSE BOX - HORN for 1982 Honda ACCORD SEDAN #1
22
  • RELAY, POWER (G2MS-1124T-100R-H5) (OMRON) - $6.32
  • RELAY, POWER (4P) (056700-5260) (DENSO)
19
  • PRESSURE UNIT, OIL ALARM
30
  • ALARM ASSY., BELT & KEY
28
  • BRACKET, CONTROL
35
  • BOLT-WASHER (6X16) - $0.72
38
  • BOLT-WASHER (6X16) - $0.72
35
  • BOLT-WASHER (6X16) - $0.72
4
  • CONTROLLER ASSY., ILLUMINATION
12
  • BRACKET, FUSE BOX
35
  • BOLT-WASHER (6X16) - $0.72
11
  • BOX ASSY., FUSE (DAIICHI)
16
  • FUSE, BLADE (20A) - $0.54
38
  • BOLT-WASHER (6X16) - $0.72
9
  • RELAY ASSY., HORN - $35.99
20
  • RELAY ASSY., INTERMITTENT WIPER (IS-2206) (MITSUBA) - $43.39
35
  • BOLT-WASHER (6X16) - $0.72
10
  • HORN ASSY. (HIGH) - $45.43
8
  • HORN ASSY. (LOW)
41
  • NUT-WASHER (6MM) - $0.58
34
  • BOLT-WASHER (8X20) - $0.74
35
  • BOLT-WASHER (6X16) - $0.72
43
  • FUSE (65A) - $0.98
38
  • BOLT-WASHER (6X16) - $0.72
41
  • NUT-WASHER (6MM) - $0.58
38
  • BOLT-WASHER (6X16) - $0.72
40
  • SCREW, TAPPING (6X12)
38
  • BOLT-WASHER (6X16) - $0.72
35
  • BOLT-WASHER (6X16) - $0.72
39
  • SCREW-WASHER (5X10) - $0.57
23
  • RELAY, POWER (4P) (056700-5260) (DENSO)
17
  • PULLER, FUSE (DAIICHI) - $2.27
  • PULLER, FUSE (SUMITOMO) - $1.42
13
  • LABEL, FUSE
14
  • FUSE, BLADE (10A) - $0.54
15
  • FUSE, BLADE (15A) - $0.54
1
  • RELAY ASSY., FUEL CUT (3.7 141) (3P) (SHINDENGEN)
7
  • RESISTOR, AUTO CHOKE - $14.15
  • RESISTOR, AUTO CHOKE
27
  • BRACKET, RELAY BOX
31
  • RELAY ASSY., POWER - $50.10
24
  • RELAY ASSY., SIDE MARKER (RZ-0010) (MITSUBA)
  • RELAY ASSY., SIDE MARKER (SANKYO)
18
  • BOX ASSY., MAIN FUSE
35
  • BOLT-WASHER (6X16) - $0.72
5
  • CONTROLLER, AUTO CRUISE
32
  • CHIME ASSY. - $20.15
21
  • RELAY ASSY., TURN SIGNAL AND HAZARD (FR-3321) (MITSUBA) - $28.44
No. Part # Part # / Description Qty Req. List Price Price
1 16760-SA0-003 16760-SA0-003 / RELAY ASSY., FUEL CUT (3.7 141) (3P) (SHINDENGEN)

1 - -
4 35150-SA5-003 35150-SA5-003 / CONTROLLER ASSY., ILLUMINATION

1 - -
5 36700-SA5-672 36700-SA5-672 / CONTROLLER, AUTO CRUISE

1 - -
7 37380-PC2-661 37380-PC2-661 / RESISTOR, AUTO CHOKE

1 $19.98 $14.15
7 37380-PC2-671 37380-PC2-671 / RESISTOR, AUTO CHOKE

1 - -
8 38100-SE3-A01 38100-SE3-A01 / HORN ASSY. (LOW)

1 - -
9 38120-671-623 38120-671-623 / RELAY ASSY., HORN

1 $50.83 $35.99
10 38150-SE3-A01 38150-SE3-A01 / HORN ASSY. (HIGH)

1 $64.17 $45.43
11 382W0-SA6-671 382W0-SA6-671 / BOX ASSY., FUSE (DAIICHI)

1 - -
12 38202-SA5-670 38202-SA5-670 / BRACKET, FUSE BOX

1 - -
13 38205-SA6-671 38205-SA6-671 / LABEL, FUSE

1 - -
14 98200-31000 98200-31000 / FUSE, BLADE (10A)

0 $0.77 $0.54
15 98200-31500 98200-31500 / FUSE, BLADE (15A)

0 $0.77 $0.54
16 98200-32000 98200-32000 / FUSE, BLADE (20A)

0 $0.77 $0.54
17 38235-SA5-004 38235-SA5-004 / PULLER, FUSE (DAIICHI)

1 $3.20 $2.27
17 38235-SA5-003 38235-SA5-003 / PULLER, FUSE (SUMITOMO)

1 $2.00 $1.42
18 38250-SA5-003 38250-SA5-003 / BOX ASSY., MAIN FUSE

1 - -
19 38260-SA5-672 38260-SA5-672 / PRESSURE UNIT, OIL ALARM

1 - -
20 38290-SA5-003 38290-SA5-003 / RELAY ASSY., INTERMITTENT WIPER (IS-2206) (MITSUBA)

1 $62.08 $43.39
21 38300-S5T-003 38300-S5T-003 / RELAY ASSY., TURN SIGNAL AND HAZARD (FR-3321) (MITSUBA)

1 $40.17 $28.44
22 38320-SA5-003 38320-SA5-003 / RELAY, POWER (G2MS-1124T-100R-H5) (OMRON)

1 $8.93 $6.32
23 38325-689-013 38325-689-013 / RELAY, POWER (4P) (056700-5260) (DENSO)

1 - -
24 38350-SA5-681 38350-SA5-681 / RELAY ASSY., SIDE MARKER (RZ-0010) (MITSUBA)

1 - -
24 38350-SA5-681 38350-SA5-681 / RELAY ASSY., SIDE MARKER (SANKYO)

1 - -
27 38371-SA5-020 38371-SA5-020 / BRACKET, RELAY BOX

1 - -
28 38376-SA5-010 38376-SA5-010 / BRACKET, CONTROL

1 - -
30 38965-SA5-672 38965-SA5-672 / ALARM ASSY., BELT & KEY

1 - -
31 39400-SA5-405 39400-SA5-405 / RELAY ASSY., POWER

4 $70.77 $50.10
32 39760-SA5-023 39760-SA5-023 / CHIME ASSY.

1 $28.47 $20.15
34 93482-08020-08 93482-08020-08 / BOLT-WASHER (8X20)

2 $1.05 $0.74
38 93403-06016-08 93403-06016-08 / BOLT-WASHER (6X16)

6 $1.02 $0.72
39 93893-05010-08 93893-05010-08 / SCREW-WASHER (5X10)

2 $0.80 $0.57
40 93903-16120 93903-16120 / SCREW, TAPPING (6X12)

1 - -
41 94071-06080 94071-06080 / NUT-WASHER (6MM)

2 $0.82 $0.58
43 98200-66500 98200-66500 / FUSE (65A)

1 $1.38 $0.98
