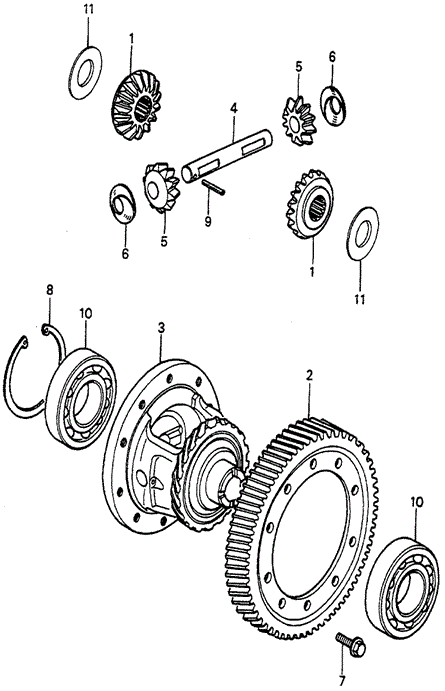

CASE, DIFFERENTIAL in TRANSMISSION - MANUAL/MT DIFFERENTIAL GEAR for 1984 Honda ACCORD SEDAN

CASE, DIFFERENTIAL in TRANSMISSION - MANUAL/MT DIFFERENTIAL GEAR for 1984 Honda ACCORD SEDAN #1
7
  • BOLT, SPECIAL (10MM) - $4.06
9
  • PIN, SPRING (4X28) - $0.85
4
  • SHAFT, PINION
3
  • CASE, DIFFERENTIAL
5
  • GEAR, DIFFERENTIAL PINION - $42.33
1
  • GEAR, DRIVE PINION - $58.94
10
  • BEARING, RADIAL BALL (6208) - $26.16
6
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.21
  • WASHER E, DIFFERENTIAL PINION (0.75MM) - $4.17
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.21
  • WASHER D, DIFFERENTIAL PINION (1.0MM) - $4.21
  • WASHER F, DIFFERENTIAL PINION (0.85MM) - $4.17
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.21
  • WASHER G, DIFFERENTIAL PINION (0.95MM) - $4.17
1
  • GEAR, DRIVE PINION - $58.94
11
  • WASHER, THRUST (28X50X1.5)
2
  • GEAR, FINAL DRIVEN
  • GEAR, FINAL DRIVEN
11
  • WASHER, THRUST (28X50X1.5)
6
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.21
  • WASHER E, DIFFERENTIAL PINION (0.75MM) - $4.17
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.21
  • WASHER D, DIFFERENTIAL PINION (1.0MM) - $4.21
  • WASHER F, DIFFERENTIAL PINION (0.85MM) - $4.17
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.21
  • WASHER G, DIFFERENTIAL PINION (0.95MM) - $4.17
8
  • RING 4, SNAP (80X2.8) - $8.06
  • RING 3, SNAP (80X2.7) - $8.06
  • RING 1, SNAP (80X2.5) - $8.06
  • RING 2, SNAP (80X2.6) - $8.06
  • RING 5, SNAP (80X2.9) - $8.06
10
  • BEARING, RADIAL BALL (6208) - $26.16
5
  • GEAR, DIFFERENTIAL PINION - $42.33
No. Part # Part # / Description Qty Req. List Price Price
1 41221-PC8-913 41221-PC8-913 / GEAR, DRIVE PINION

2 $83.25 $58.94
2 41233-PC8-910 41233-PC8-910 / GEAR, FINAL DRIVEN

1 - -
2 41233-PC8-660 41233-PC8-660 / GEAR, FINAL DRIVEN

1 - -
3 41310-PC8-921 41310-PC8-921 / CASE, DIFFERENTIAL

1 - -
4 41321-PS1-T00 41321-PS1-T00 / SHAFT, PINION

1 - -
5 41341-PC8-030 41341-PC8-030 / GEAR, DIFFERENTIAL PINION

2 $59.78 $42.33
6 41351-689-000 41351-689-000 / WASHER A, DIFFERENTIAL PINION (0.7MM)

2 $5.95 $4.21
6 41355-PC8-000 41355-PC8-000 / WASHER E, DIFFERENTIAL PINION (0.75MM)

2 $5.88 $4.17
6 41352-689-000 41352-689-000 / WASHER B, DIFFERENTIAL PINION (0.8MM)

2 $5.95 $4.21
6 41354-689-000 41354-689-000 / WASHER D, DIFFERENTIAL PINION (1.0MM)

2 $5.95 $4.21
6 41356-PC8-000 41356-PC8-000 / WASHER F, DIFFERENTIAL PINION (0.85MM)

2 $5.88 $4.17
6 41353-689-000 41353-689-000 / WASHER C, DIFFERENTIAL PINION (0.9MM)

2 $5.95 $4.21
6 41357-PC8-000 41357-PC8-000 / WASHER G, DIFFERENTIAL PINION (0.95MM)

2 $5.88 $4.17
7 90017-689-000 90017-689-000 / BOLT, SPECIAL (10MM)

10 $5.73 $4.06
8 90417-689-000 90417-689-000 / RING 4, SNAP (80X2.8)

1 $11.38 $8.06
8 90416-689-000 90416-689-000 / RING 3, SNAP (80X2.7)

1 $11.38 $8.06
8 90414-689-000 90414-689-000 / RING 1, SNAP (80X2.5)

1 $11.38 $8.06
8 90415-689-000 90415-689-000 / RING 2, SNAP (80X2.6)

1 $11.38 $8.06
8 90418-689-000 90418-689-000 / RING 5, SNAP (80X2.9)

1 $11.38 $8.06
9 94305-40282 94305-40282 / PIN, SPRING (4X28)

1 $1.20 $0.85
10 96100-62083-00 96100-62083-00 / BEARING, RADIAL BALL (6208)

2 $36.95 $26.16
11 90425-680-900 90425-680-900 / WASHER, THRUST (28X50X1.5)

2 - -
