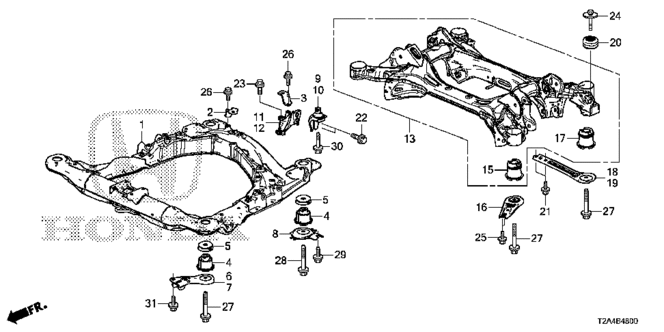

SUB-FRAME ASSY., RR. SUSPENSION in BODY / AIR CONDITIONING/FRONT SUB FRAME - REAR BEAM for 2013 Honda ACCORD SEDAN

SUB-FRAME ASSY., RR. SUSPENSION in BODY / AIR CONDITIONING/FRONT SUB FRAME - REAR BEAM for 2013 Honda ACCORD SEDAN #1
31
  • BOLT, FLANGE (12X25) - $1.40
21
  • BOLT-WASHER (8X16) - $1.59
1
  • SUB-FRAME, FR. - $557.40
23
  • BOLT, FLANGE (10X35) - $1.83
17
  • RUBBER, RR.RR. SUB-FRAME MOUNTING - $24.23
4
  • RUBBER, FR. SUB-FRAME MOUNTING - $25.04
27
  • BOLT, FLANGE (14X135) - $3.63
4
  • RUBBER, FR. SUB-FRAME MOUNTING - $25.04
5
  • RUBBER, FR. SUB-FRAME STOPPER - $3.15
2
  • STIFFENER, STEERING RACK - $3.30
15
  • RUBBER, RR. SUB-FRAME MOUNTING(FR) - $24.23
11
  • BRACKET, R. MIDDLE MOUNTING - $19.43
8
  • STAY, FR. SUB-FRAME MOUNTING (RR) - $9.50
22
  • BOLT, FLANGE (10X34) - $0.63
24
  • BOLT-WASHER (8X65) - $1.27
3
  • STIFFENER, STEERING RACK - $3.32
9
  • RUBBER, R. FR. SUB-FRAME MIDDLE MOUNTING - $17.77
28
  • BOLT, FLANGE (14X150) - $4.21
27
  • BOLT, FLANGE (14X135) - $3.63
19
  • STAY, L. RR. SUB-FRAME MOUNTING (RR) - $19.08
29
  • BOLT, FLANGE (12X33) - $1.11
16
  • STAY, RR. SUB-FRAME MOUNTING (FR) - $10.93
13
  • SUB-FRAME ASSY., RR. SUSPENSION - $564.81
27
  • BOLT, FLANGE (14X135) - $3.63
18
  • STAY, R. RR. SUB-FRAME MOUNTING (RR) - $19.08
  • STAY, R. RR. SUB-FRAME MOUNTING (RR) - $19.08
10
  • RUBBER, L. FR. SUB-FRAME MIDDLE MOUNTING - $14.99
5
  • RUBBER, FR. SUB-FRAME STOPPER - $3.15
30
  • BOLT, FLANGE (12X75) - $3.50
25
  • BOLT, FLANGE (8X16) - $0.32
6
  • STAY, R. FR. SUB-FRAME MOUNTING - $20.06
  • STAY, R. FR. SUB-FRAME MOUNTING - $20.06
7
  • STAY, L. FR. SUB-FRAME MOUNTING - $20.06
  • STAY, L. FR. SUB-FRAME MOUNTING - $20.06
26
  • BOLT, FLANGE (10X30) - $1.81
12
  • BRACKET, L. MIDDLE MOUNTING - $18.86
20
  • DAMPER, RR. SUB-FRAME DYNAMIC - $27.23
26
  • BOLT, FLANGE (10X30) - $1.81
No. Part # Part # / Description Qty Req. List Price Price
1 50200-T2F-A00 50200-T2F-A00 / SUB-FRAME, FR.

1 $787.28 $557.40
2 50220-T2A-A00 50220-T2A-A00 / STIFFENER, STEERING RACK

1 $4.67 $3.30
3 50221-T2A-A00 50221-T2A-A00 / STIFFENER, STEERING RACK

2 $4.68 $3.32
4 50260-TA0-A01 50260-TA0-A01 / RUBBER, FR. SUB-FRAME MOUNTING

4 $35.37 $25.04
5 50261-TA0-A01 50261-TA0-A01 / RUBBER, FR. SUB-FRAME STOPPER

4 $4.45 $3.15
6 50265-T2A-A01 50265-T2A-A01 / STAY, R. FR. SUB-FRAME MOUNTING

1 $28.33 $20.06
6 50265-T2A-A01 50265-T2A-A01 / STAY, R. FR. SUB-FRAME MOUNTING

1 $28.33 $20.06
7 50266-T2A-A01 50266-T2A-A01 / STAY, L. FR. SUB-FRAME MOUNTING

1 $28.33 $20.06
7 50266-T2A-A01 50266-T2A-A01 / STAY, L. FR. SUB-FRAME MOUNTING

1 $28.33 $20.06
8 50275-TA0-A00 50275-TA0-A00 / STAY, FR. SUB-FRAME MOUNTING (RR)

2 $13.42 $9.50
9 50280-TP6-A01 50280-TP6-A01 / RUBBER, R. FR. SUB-FRAME MIDDLE MOUNTING

1 $25.10 $17.77
10 50285-TP6-A01 50285-TP6-A01 / RUBBER, L. FR. SUB-FRAME MIDDLE MOUNTING

1 $21.17 $14.99
11 50290-T2F-A01 50290-T2F-A01 / BRACKET, R. MIDDLE MOUNTING

1 $27.45 $19.43
12 50295-T2F-A01 50295-T2F-A01 / BRACKET, L. MIDDLE MOUNTING

1 $26.63 $18.86
13 50300-T2A-A50 50300-T2A-A50 / SUB-FRAME ASSY., RR. SUSPENSION

1 $797.75 $564.81
15 50360-TA0-A01 50360-TA0-A01 / RUBBER, RR. SUB-FRAME MOUNTING(FR)

2 $34.22 $24.23
16 50365-TA0-A00 50365-TA0-A00 / STAY, RR. SUB-FRAME MOUNTING (FR)

2 $15.43 $10.93
17 50370-TA0-A01 50370-TA0-A01 / RUBBER, RR.RR. SUB-FRAME MOUNTING

2 $34.22 $24.23
18 50375-T2A-A01 50375-T2A-A01 / STAY, R. RR. SUB-FRAME MOUNTING (RR)

1 $26.95 $19.08
18 50375-T2A-A01 50375-T2A-A01 / STAY, R. RR. SUB-FRAME MOUNTING (RR)

1 $26.95 $19.08
19 50376-T2A-A00 50376-T2A-A00 / STAY, L. RR. SUB-FRAME MOUNTING (RR)

1 $26.95 $19.08
20 50430-T2A-A01 50430-T2A-A01 / DAMPER, RR. SUB-FRAME DYNAMIC

2 $38.47 $27.23
21 90101-SWA-A00 90101-SWA-A00 / BOLT-WASHER (8X16)

4 $2.25 $1.59
22 90162-T2A-A00 90162-T2A-A00 / BOLT, FLANGE (10X34)

4 $0.88 $0.63
23 90164-S5B-000 90164-S5B-000 / BOLT, FLANGE (10X35)

6 $2.58 $1.83
24 90165-T2A-A00 90165-T2A-A00 / BOLT-WASHER (8X65)

2 $1.80 $1.27
25 90166-TA0-A00 90166-TA0-A00 / BOLT, FLANGE (8X16)

4 $0.45 $0.32
26 90176-S5A-000 90176-S5A-000 / BOLT, FLANGE (10X30)

3 $2.55 $1.81
27 90176-SDA-A00 90176-SDA-A00 / BOLT, FLANGE (14X135)

6 $5.13 $3.63
28 90177-SDA-A00 90177-SDA-A00 / BOLT, FLANGE (14X150)

2 $5.95 $4.21
29 90186-SDA-A00 90186-SDA-A00 / BOLT, FLANGE (12X33)

2 $1.57 $1.11
30 90396-S5A-010 90396-S5A-010 / BOLT, FLANGE (12X75)

2 $4.95 $3.50
31 95701-12025-08 95701-12025-08 / BOLT, FLANGE (12X25)

2 $1.98 $1.40
