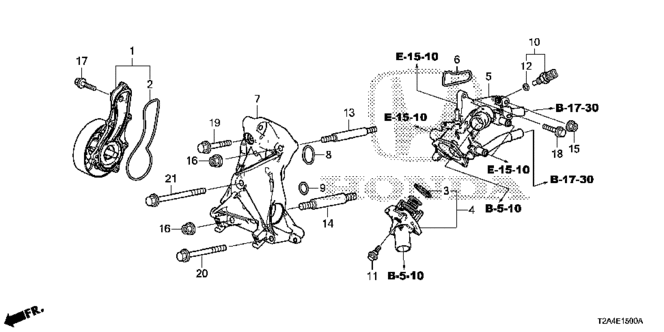

WATER PUMP ASSY. in ENGINE/WATER PUMP (L4) for 2013 Honda ACCORD SEDAN

WATER PUMP ASSY. in ENGINE/WATER PUMP (L4) for 2013 Honda ACCORD SEDAN #1
20
  • BOLT, FLANGE (10X105) - $1.88
14
  • BOLT, STUD (10X100) - $1.72
5
  • CASE, THERMOSTAT - $44.10
19
  • BOLT, FLANGE (10X70) - $1.27
13
  • BOLT, STUD (10X60) - $1.31
15
  • NUT, FLANGE (8MM) - $0.18
16
  • NUT, FLANGE (10MM) - $0.74
9
  • O-RING, WATER PASSAGE (OIL) - $1.48
17
  • BOLT, FLANGE (6X25) - $0.70
16
  • NUT, FLANGE (10MM) - $0.74
4
  • COVER ASSY., THERMOSTAT (NIPPON THERMOSTAT) - $37.19
10
  • SENSOR ASSY., WATER TEMPERATURE (PANASONIC) - $27.03
11
  • BOLT, SPECIAL (6X19) (NIPPON THERMOSTAT) - $1.09
7
  • PASSAGE, WATER - $70.01
6
  • SEAL, THERMOSTAT CASE - $3.82
1
  • WATER PUMP ASSY. - $73.14
8
  • O-RING, WATER PASSAGE (WATER) - $0.85
3
  • SEAL, THERMOSTAT COVER (NIPPON THERMOSTAT) - $3.01
12
  • O-RING (9.5X1.9) (PANASONIC) - $1.44
21
  • BOLT, FLANGE (10X140) - $1.96
2
  • GASKET, WATER PUMP - $3.33
18
  • BOLT, FLANGE (8X30) - $0.60
No. Part # Part # / Description Qty Req. List Price Price
1 19200-5A2-A01 19200-5A2-A01 / WATER PUMP ASSY.

1 $103.30 $73.14
2 19222-5A2-A01 19222-5A2-A01 / GASKET, WATER PUMP

1 $4.70 $3.33
3 19305-PNA-003 19305-PNA-003 / SEAL, THERMOSTAT COVER (NIPPON THERMOSTAT)

1 $4.25 $3.01
4 19310-5A2-A02 19310-5A2-A02 / COVER ASSY., THERMOSTAT (NIPPON THERMOSTAT)

1 $52.53 $37.19
5 19321-5A2-A01 19321-5A2-A01 / CASE, THERMOSTAT

1 $62.28 $44.10
6 19322-5A2-A00 19322-5A2-A00 / SEAL, THERMOSTAT CASE

1 $5.40 $3.82
7 19410-5A2-A00 19410-5A2-A00 / PASSAGE, WATER

1 $98.88 $70.01
8 19411-5A2-A00 19411-5A2-A00 / O-RING, WATER PASSAGE (WATER)

1 $1.20 $0.85
9 19412-5A2-A00 19412-5A2-A00 / O-RING, WATER PASSAGE (OIL)

1 $2.08 $1.48
10 37870-RWC-A01 37870-RWC-A01 / SENSOR ASSY., WATER TEMPERATURE (PANASONIC)

1 $38.18 $27.03
11 90050-PNA-003 90050-PNA-003 / BOLT, SPECIAL (6X19) (NIPPON THERMOSTAT)

3 $1.53 $1.09
12 91307-PLC-004 91307-PLC-004 / O-RING (9.5X1.9) (PANASONIC)

1 $2.03 $1.44
13 92900-10060-0B 92900-10060-0B / BOLT, STUD (10X60)

1 $1.85 $1.31
14 92900-10100-0B 92900-10100-0B / BOLT, STUD (10X100)

1 $2.43 $1.72
15 94050-08080 94050-08080 / NUT, FLANGE (8MM)

1 $0.25 $0.18
16 94050-10080 94050-10080 / NUT, FLANGE (10MM)

2 $1.05 $0.74
17 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

6 $0.98 $0.70
18 95701-08030-08 95701-08030-08 / BOLT, FLANGE (8X30)

2 $0.85 $0.60
19 95701-10070-08 95701-10070-08 / BOLT, FLANGE (10X70)

1 $1.80 $1.27
20 95701-10105-08 95701-10105-08 / BOLT, FLANGE (10X105)

1 $2.65 $1.88
21 95701-10140-08 95701-10140-08 / BOLT, FLANGE (10X140)

1 $2.77 $1.96
