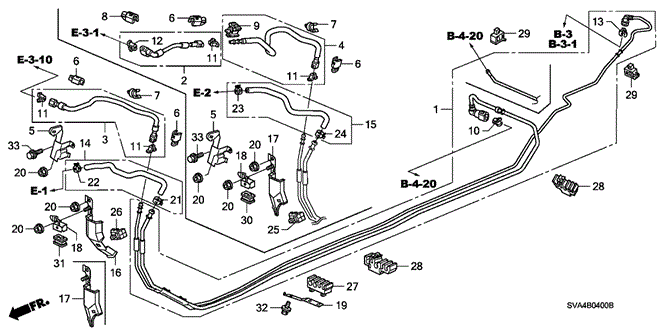

HOSE A, FUEL FEED in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE for 2006 Honda CIVIC COUPE

HOSE A, FUEL FEED in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE for 2006 Honda CIVIC COUPE #1
20
  • NUT, PAINT CUTTING (6MM) - $1.18
18
  • STAY B, FUEL PIPE - $2.16
2
  • HOSE A, FUEL FEED - $62.56
7
  • CLAMP, FUEL HOSE (NATURAL) - $1.71
29
  • CLAMP F, FUEL PIPE - $0.98
27
  • CLAMP D, FUEL PIPE - $3.41
10
  • RETAINER (WHITE) (SANOH) - $9.85
13
  • RETAINER (WHITE) (SANOH) - $1.26
20
  • NUT, PAINT CUTTING (6MM) - $1.18
33
  • BOLT, FLANGE (6X12) - $0.71
28
  • CLAMP C, FUEL PIPE - $3.13
23
  • CLAMP, TUBE (D13.0) - $1.55
6
  • COVER A, FUEL CONNECTOR (LIGHT GRAY) - $2.24
11
  • RETAINER (GREEN) (TOKAI) - $1.65
19
  • STAY B, FUEL PIPE - $1.82
33
  • BOLT, FLANGE (6X12) - $0.71
8
  • COVER B, FUEL CONNECTOR (BLACK) - $1.70
25
  • CLAMP A, FUEL PIPE - $2.90
17
  • PROTECTOR A, FUEL PIPE - $21.37
5
  • BRACKET, FUEL FEED HOSE - $3.62
18
  • STAY B, FUEL PIPE - $2.16
28
  • CLAMP C, FUEL PIPE - $3.13
5
  • BRACKET, FUEL FEED HOSE - $3.62
17
  • PROTECTOR A, FUEL PIPE - $21.37
29
  • CLAMP F, FUEL PIPE - $0.98
7
  • CLAMP, FUEL HOSE (NATURAL) - $1.71
30
  • RUBBER E, FUEL PIPE INSULATOR - $19.25
6
  • COVER A, FUEL CONNECTOR (LIGHT GRAY) - $2.24
11
  • RETAINER (GREEN) (TOKAI) - $1.65
20
  • NUT, PAINT CUTTING (6MM) - $1.18
6
  • COVER A, FUEL CONNECTOR (LIGHT GRAY) - $2.24
11
  • RETAINER (GREEN) (TOKAI) - $1.65
15
  • HOSE ASSY., FUEL PURGE - $29.19
4
  • HOSE B, FUEL FEED - $23.97
32
  • BOLT-WASHER (6X16) - $0.72
11
  • RETAINER (GREEN) (TOKAI) - $1.65
12
  • RETAINER (BLUE GREEN) (TOKAI) - $1.42
20
  • NUT, PAINT CUTTING (6MM) - $1.18
9
  • CLAMP, FUEL HOSE (BLACK) - $1.72
1
  • PIPE, FUEL - $28.30
  • PIPE, FUEL - $28.30
20
  • NUT, PAINT CUTTING (6MM) - $1.18
20
  • NUT, PAINT CUTTING (6MM) - $1.18
24
  • CLAMP, FUEL TUBE (D15.5) - $1.22
6
  • COVER A, FUEL CONNECTOR (LIGHT GRAY) - $2.24
No. Part # Part # / Description Qty Req. List Price Price
1 16051-SVB-A03 16051-SVB-A03 / PIPE, FUEL

1 $39.97 $28.30
1 16051-SVB-A02 16051-SVB-A02 / PIPE, FUEL

1 $39.97 $28.30
2 16721-RRA-A01 16721-RRA-A01 / HOSE A, FUEL FEED

1 $88.37 $62.56
4 16722-RRA-A01 16722-RRA-A01 / HOSE B, FUEL FEED

1 $33.85 $23.97
5 16723-RNA-A00 16723-RNA-A00 / BRACKET, FUEL FEED HOSE

1 $5.12 $3.62
6 16725-RAA-004 16725-RAA-004 / COVER A, FUEL CONNECTOR (LIGHT GRAY)

2 $3.17 $2.24
7 16725-RAC-003 16725-RAC-003 / CLAMP, FUEL HOSE (NATURAL)

1 $2.42 $1.71
8 16726-PWA-004 16726-PWA-004 / COVER B, FUEL CONNECTOR (BLACK)

1 $2.40 $1.70
9 16727-PND-004 16727-PND-004 / CLAMP, FUEL HOSE (BLACK)

1 $2.43 $1.72
10 17711-SNA-A01 17711-SNA-A01 / RETAINER (WHITE) (SANOH)

1 $13.92 $9.85
11 17711-S0X-A31 17711-S0X-A31 / RETAINER (GREEN) (TOKAI)

2 $2.33 $1.65
12 17711-S0X-931 17711-S0X-931 / RETAINER (BLUE GREEN) (TOKAI)

1 $2.00 $1.42
13 17711-S84-004 17711-S84-004 / RETAINER (WHITE) (SANOH)

1 $1.78 $1.26
15 17726-SVB-A01 17726-SVB-A01 / HOSE ASSY., FUEL PURGE

1 $41.23 $29.19
17 17761-SVB-A00 17761-SVB-A00 / PROTECTOR A, FUEL PIPE

1 $30.18 $21.37
18 17762-SDA-A00 17762-SDA-A00 / STAY B, FUEL PIPE

1 $3.05 $2.16
19 17762-SNA-A00 17762-SNA-A00 / STAY B, FUEL PIPE

1 $2.57 $1.82
20 90361-SV4-003 90361-SV4-003 / NUT, PAINT CUTTING (6MM)

3 $1.67 $1.18
23 91408-SDB-000 91408-SDB-000 / CLAMP, TUBE (D13.0)

1 $2.18 $1.55
24 91412-SDC-L01 91412-SDC-L01 / CLAMP, FUEL TUBE (D15.5)

1 $1.72 $1.22
25 91595-SNA-A01 91595-SNA-A01 / CLAMP A, FUEL PIPE

1 $4.10 $2.90
27 91597-SDA-A01 91597-SDA-A01 / CLAMP D, FUEL PIPE

1 $4.82 $3.41
28 91596-SDA-A01 91596-SDA-A01 / CLAMP C, FUEL PIPE

3 $4.42 $3.13
29 91598-SNA-A01 91598-SNA-A01 / CLAMP F, FUEL PIPE

1 $1.38 $0.98
30 91599-SDA-A00 91599-SDA-A00 / RUBBER E, FUEL PIPE INSULATOR

1 $27.18 $19.25
32 93405-06016-04 93405-06016-04 / BOLT-WASHER (6X16)

1 $1.02 $0.72
33 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.71
