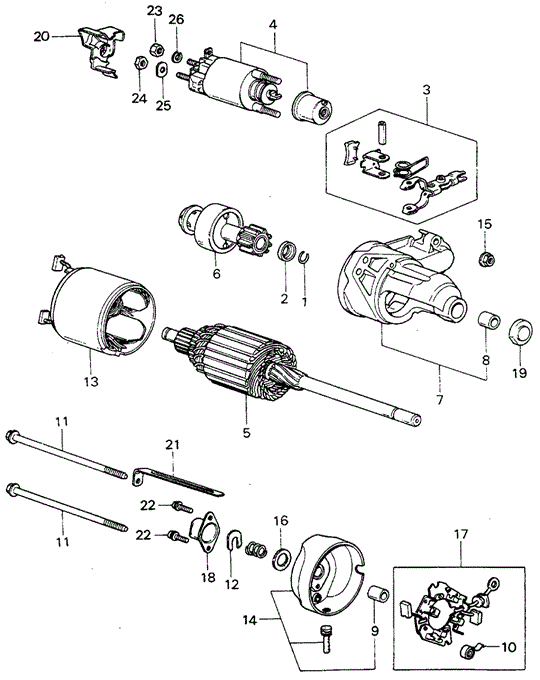

ARMATURE in ENGINE/STARTER MOTOR COMPONENTS (DENSO) (1) for 1980 Honda CIVIC HATCHBACK

ARMATURE in ENGINE/STARTER MOTOR COMPONENTS (DENSO) (1) for 1980 Honda CIVIC HATCHBACK #1
24
  • NUT, HEX. (8MM) - $0.50
9
  • BEARING B, STARTER MOTOR
21
  • CLIP, CORD
4
  • SWITCH, MAGNETIC
1
  • RING, SNAP
20
  • COVER, MAGNETIC SWITCH
15
  • NUT, HEX. - $1.48
17
  • HOLDER, BRUSH
13
  • YOKE
2
  • COLLAR, CLUTCH STOP - $2.94
7
  • CASE, GEAR
6
  • PINION (OVERRUNNING CLUTCH)
26
  • WASHER, SPRING (8MM) - $0.38
8
  • BEARING A, STARTER MOTOR
12
  • PLATE, LOCK
23
  • NUT, HEX. (8MM) - $0.42
25
  • WASHER, PLAIN (8MM) - $0.78
3
  • LEVER, PINION DRIVE - $14.57
11
  • BOLT, THROUGH - $4.65
16
  • RUBBER A, SEAL - $3.14
11
  • BOLT, THROUGH - $4.65
14
  • FRAME, COMMUTATOR END
18
  • CAP, END FRAME - $2.44
22
  • SCREW-WASHER (4X12) - $0.26
10
  • SPRING, BRUSH - $2.86
5
  • ARMATURE
22
  • SCREW-WASHER (4X12) - $0.26
No. Part # Part # / Description Qty Req. List Price Price
1 31201-590-004 31201-590-004 / RING, SNAP

1 - -
2 31202-590-004 31202-590-004 / COLLAR, CLUTCH STOP

1 $4.15 $2.94
3 31203-PH9-811 31203-PH9-811 / LEVER, PINION DRIVE

1 $20.58 $14.57
4 31204-PA5-915 31204-PA5-915 / SWITCH, MAGNETIC

1 - -
5 31206-PA0-006 31206-PA0-006 / ARMATURE

1 - -
6 31207-PM5-L01 31207-PM5-L01 / PINION (OVERRUNNING CLUTCH)

1 - -
7 31208-PA0-006 31208-PA0-006 / CASE, GEAR

1 - -
8 31209-590-004 31209-590-004 / BEARING A, STARTER MOTOR

1 - -
9 31210-PA0-006 31210-PA0-006 / BEARING B, STARTER MOTOR

1 - -
10 31212-PA0-006 31212-PA0-006 / SPRING, BRUSH

4 $4.03 $2.86
11 31214-PZ1-891 31214-PZ1-891 / BOLT, THROUGH

2 $6.57 $4.65
12 31215-657-006 31215-657-006 / PLATE, LOCK

1 - -
13 31218-PA0-006 31218-PA0-006 / YOKE

1 - -
14 31219-PA0-006 31219-PA0-006 / FRAME, COMMUTATOR END

1 - -
15 31223-PA0-006 31223-PA0-006 / NUT, HEX.

2 $2.08 $1.48
16 31224-657-006 31224-657-006 / RUBBER A, SEAL

1 $4.43 $3.14
17 31231-PA0-006 31231-PA0-006 / HOLDER, BRUSH

1 - -
18 31232-PA0-006 31232-PA0-006 / CAP, END FRAME

1 $3.44 $2.44
20 31239-PA0-006 31239-PA0-006 / COVER, MAGNETIC SWITCH

1 - -
21 91411-PA0-006 91411-PA0-006 / CLIP, CORD

1 - -
22 93892-04012-08 93892-04012-08 / SCREW-WASHER (4X12)

2 $0.37 $0.26
23 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

1 $0.60 $0.42
24 94002-08000-0S 94002-08000-0S / NUT, HEX. (8MM)

1 $0.70 $0.50
25 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

1 $1.10 $0.78
26 94111-08800 94111-08800 / WASHER, SPRING (8MM)

1 $0.53 $0.38
