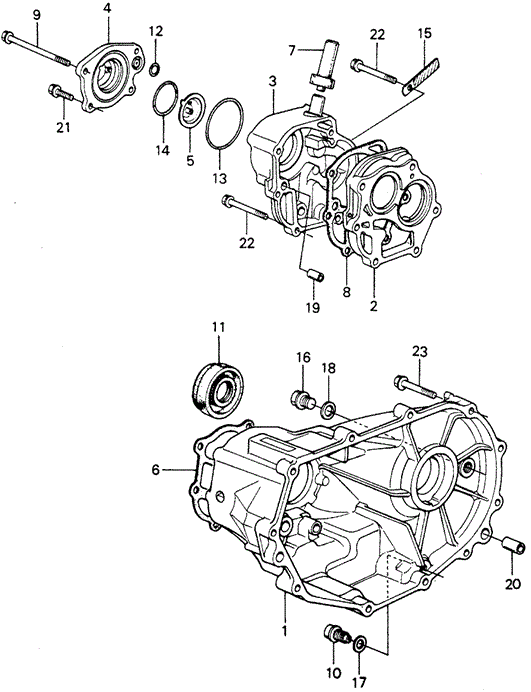

HOUSING, TRANSMISSION in TRANSMISSION - MANUAL/5MT TRANSMISSION HOUSING for 1980 Honda CIVIC HATCHBACK

HOUSING, TRANSMISSION in TRANSMISSION - MANUAL/5MT TRANSMISSION HOUSING for 1980 Honda CIVIC HATCHBACK #1
22
  • BOLT, FLANGE (6X45) - $0.85
18
  • WASHER, DRAIN PLUG (20MM) - $0.52
10
  • BOLT, PLUG (14MM) - $8.60
11
  • OIL SEAL (35X56X9) (NOK) - $6.54
23
  • BOLT, FLANGE (8X40) - $0.91
20
  • PIN, DOWEL (14X20) - $0.97
8
  • GASKET, TRANSMISSION CASE SPACER
3
  • COVER, TRANSMISSION
22
  • BOLT, FLANGE (6X45) - $0.85
5
  • PLATE, OIL BARRIER
4
  • COVER, R. SIDE
1
  • HOUSING, TRANSMISSION
13
  • O-RING (64.5X3) (ARAI) - $4.00
19
  • PIN, DOWEL (8X14) - $0.83
2
  • SPACER, TRANSMISSION CASE
17
  • WASHER, DRAIN PLUG (14MM) - $0.27
16
  • BOLT, DRAIN PLUG (20MM) - $2.18
21
  • BOLT, FLANGE (6X20) - $0.15
15
  • CLIP (2X60) - $4.91
12
  • O-RING (9.4X2.4) - $0.98
  • O-RING (9.4X2.4) - $0.98
7
  • CAP, BREATHER
6
  • GASKET, TRANSMISSION CASE
9
  • BOLT, FLANGE (6x85)
14
  • O-RING (42MM) - $1.50
No. Part # Part # / Description Qty Req. List Price Price
1 21200-PA0-000 21200-PA0-000 / HOUSING, TRANSMISSION

1 - -
2 21301-634-960 21301-634-960 / SPACER, TRANSMISSION CASE

1 - -
3 21310-PA0-960 21310-PA0-960 / COVER, TRANSMISSION

1 - -
4 21341-657-961 21341-657-961 / COVER, R. SIDE

1 - -
5 21342-657-961 21342-657-961 / PLATE, OIL BARRIER

1 - -
6 21395-634-S60 21395-634-S60 / GASKET, TRANSMISSION CASE

1 - -
7 21397-634-000 21397-634-000 / CAP, BREATHER

1 - -
8 21399-634-S60 21399-634-S60 / GASKET, TRANSMISSION CASE SPACER

1 - -
9 90035-634-960 90035-634-960 / BOLT, FLANGE (6x85)

2 - -
10 90081-PB6-000 90081-PB6-000 / BOLT, PLUG (14MM)

1 $12.15 $8.60
11 91205-611-005 91205-611-005 / OIL SEAL (35X56X9) (NOK)

1 $9.23 $6.54
12 91304-KK3-830 91304-KK3-830 / O-RING (9.4X2.4)

1 $1.38 $0.98
12 91304-KK3-830 91304-KK3-830 / O-RING (9.4X2.4)

1 $1.38 $0.98
13 91310-MG7-003 91310-MG7-003 / O-RING (64.5X3) (ARAI)

1 $5.65 $4.00
14 91304-704-000 91304-704-000 / O-RING (42MM)

1 $2.12 $1.50
15 91410-679-000 91410-679-000 / CLIP (2X60)

1 $6.93 $4.91
16 92800-20000 92800-20000 / BOLT, DRAIN PLUG (20MM)

1 $3.08 $2.18
17 94109-14000 94109-14000 / WASHER, DRAIN PLUG (14MM)

1 $0.38 $0.27
18 94109-20000 94109-20000 / WASHER, DRAIN PLUG (20MM)

1 $0.73 $0.52
19 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.83
20 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.97
21 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

2 $0.22 $0.15
22 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

4 $1.20 $0.85
23 95701-08040-08 95701-08040-08 / BOLT, FLANGE (8X40)

11 $1.28 $0.91
