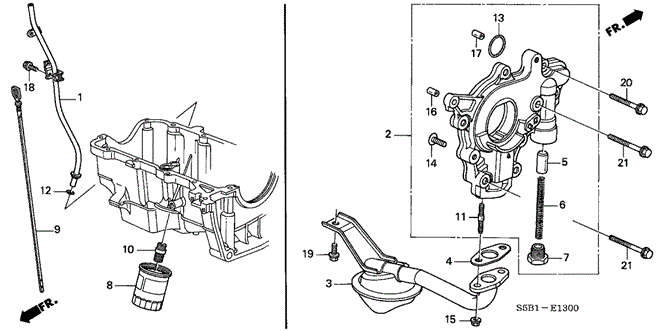

PUMP ASSY., OIL in ENGINE/OIL PUMP - OIL STRAINER for 2005 Honda CIVIC HYBRID

PUMP ASSY., OIL in ENGINE/OIL PUMP - OIL STRAINER for 2005 Honda CIVIC HYBRID #1
21
  • BOLT, FLANGE (6X35) - $0.73
15
  • NUT, FLANGE (6MM) - $0.17
14
  • SCREW, FLAT (6X16) - $0.42
9
  • DIPSTICK, OIL - $6.09
3
  • STRAINER, OIL - $27.41
20
  • BOLT, FLANGE (6X25) - $0.70
11
  • BOLT, STUD (6X28) - $1.82
16
  • PIN, DOWEL (6X10) - $0.85
4
  • GASKET, OIL STRAINER - $1.91
19
  • BOLT, FLANGE (6X14) - $0.63
7
  • BOLT, SEALING (18MM) - $3.41
12
  • O-RING (11.5X3.5) - $1.13
2
  • PUMP ASSY., OIL - $90.06
1
  • PIPE, OIL LEVEL - $20.95
18
  • BOLT, FLANGE (6X12) - $0.71
13
  • O-RING (24.4X2.4) (NOK) - $1.68
5
  • VALVE, RELIEF - $8.81
6
  • SPRING, RELIEF VALVE - $2.53
10
  • HOLDER, OIL FILTER - $3.46
8
  • FILTER, OIL (TOYO ROKI)
  • FILTER, OIL (MAHLE TENNEX)
  • FILTER, OIL (FILTECH TOYO ROKI)
21
  • BOLT, FLANGE (6X35) - $0.73
17
  • PIN, DOWEL (8X14) - $0.83
No. Part # Part # / Description Qty Req. List Price Price
1 11110-PZA-000 11110-PZA-000 / PIPE, OIL LEVEL

1 $29.58 $20.95
2 15100-PZA-003 15100-PZA-003 / PUMP ASSY., OIL

1 $127.20 $90.06
3 15220-PZA-000 15220-PZA-000 / STRAINER, OIL

1 $38.72 $27.41
4 15221-PZ1-000 15221-PZ1-000 / GASKET, OIL STRAINER

1 $2.70 $1.91
5 15231-413-020 15231-413-020 / VALVE, RELIEF

1 $12.45 $8.81
6 15232-PHM-003 15232-PHM-003 / SPRING, RELIEF VALVE

1 $3.57 $2.53
7 15233-PFB-003 15233-PFB-003 / BOLT, SEALING (18MM)

1 $4.82 $3.41
8 15400-PLM-A01 15400-PLM-A01 / FILTER, OIL (TOYO ROKI)

1 - -
8 15400-PLM-A01 15400-PLM-A01 / FILTER, OIL (MAHLE TENNEX)

1 - -
8 15400-PLM-A01 15400-PLM-A01 / FILTER, OIL (FILTECH TOYO ROKI)

1 - -
9 15650-PZA-004 15650-PZA-004 / DIPSTICK, OIL

1 $8.60 $6.09
10 90015-PH1-013 90015-PH1-013 / HOLDER, OIL FILTER

1 $4.88 $3.46
11 90041-PA5-000 90041-PA5-000 / BOLT, STUD (6X28)

2 $2.57 $1.82
12 91309-PJ7-010 91309-PJ7-010 / O-RING (11.5X3.5)

1 $1.60 $1.13
13 91326-PF4-004 91326-PF4-004 / O-RING (24.4X2.4) (NOK)

1 $2.37 $1.68
14 93600-06016-0A 93600-06016-0A / SCREW, FLAT (6X16)

2 $0.60 $0.42
15 94050-06080 94050-06080 / NUT, FLANGE (6MM)

2 $0.23 $0.17
16 94301-06100 94301-06100 / PIN, DOWEL (6X10)

1 $1.20 $0.85
17 94301-08140 94301-08140 / PIN, DOWEL (8X14)

1 $1.17 $0.83
18 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.71
19 95701-06014-08 95701-06014-08 / BOLT, FLANGE (6X14)

1 $0.88 $0.63
20 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

3 $0.98 $0.70
21 95701-06035-08 95701-06035-08 / BOLT, FLANGE (6X35)

4 $1.03 $0.73
