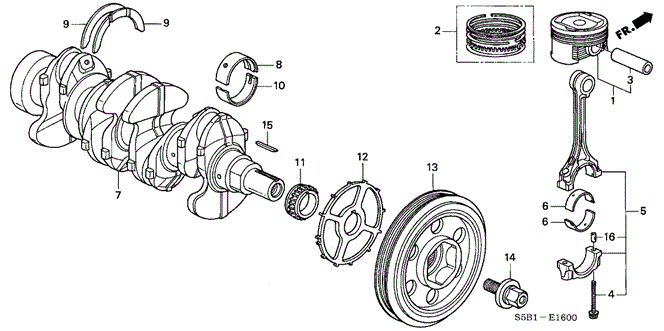

CRANKSHAFT in ENGINE/PISTON - CRANKSHAFT for 2005 Honda CIVIC HYBRID

CRANKSHAFT in ENGINE/PISTON - CRANKSHAFT for 2005 Honda CIVIC HYBRID #1
8
  • BEARING D, MAIN (UPPER) (GREEN) (DAIDO) - $10.57
  • BEARING E, MAIN (UPPER) (YELLOW) (DAIDO) - $10.57
  • BEARING F, MAIN (UPPER) (PINK)(DAIDO) - $10.57
  • BEARING A, MAIN (UPPER) (BLUE)(DAIDO) - $9.92
  • BEARING G, MAIN (UPPER) (RED) (DAIDO) - $9.92
  • BEARING C, MAIN (UPPER) (BROWN) (DAIDO) - $10.57
  • BEARING B, MAIN (UPPER) (BLACK) (DAIDO) - $9.92
5
  • ROD, CONNECTING - $73.92
6
  • BEARING D, CONNECTING ROD (GREEN) (DAIDO) - $10.21
  • BEARING A, CONNECTING ROD (BLUE) (DAIDO) - $10.21
  • BEARING E, CONNECTING ROD (YELLOW) (DAIDO) - $10.21
  • BEARING B, CONNECTING ROD (BLACK) (DAIDO) - $10.21
  • BEARING C, CONNECTING ROD (BROWN) (DAIDO) - $10.21
  • BEARING F, CONNECTING ROD (PINK) (DAIDO) - $10.21
  • BEARING G, CONNECTING ROD (RED) (DAIDO) - $10.21
9
  • WASHER, THRUST (DAIDO) - $6.09
  • WASHER, THRUST (TAIHO) - $6.09
2
  • RING SET, PISTON (STD) - $26.88
  • RING SET, PISTON (OVER SIZE) (0.25) - $26.88
10
  • BEARING A, MAIN (LOWER) (BLUE)(DAIDO) - $9.92
  • BEARING F, MAIN (LOWER) (PINK)(DAIDO) - $10.57
  • BEARING D, MAIN (LOWER) (GREEN) (DAIDO) - $10.57
  • BEARING E, MAIN (LOWER) (YELLOW) (DAIDO) - $10.57
  • BEARING C, MAIN (LOWER) (BROWN) (DAIDO) - $10.57
  • BEARING B, MAIN (LOWER) (BLACK) (DAIDO) - $9.92
  • BEARING G, MAIN (LOWER) (RED) (DAIDO) - $9.92
11
  • SPROCKET, CAM CHAIN (23T) - $39.64
6
  • BEARING D, CONNECTING ROD (GREEN) (DAIDO) - $10.21
  • BEARING A, CONNECTING ROD (BLUE) (DAIDO) - $10.21
  • BEARING E, CONNECTING ROD (YELLOW) (DAIDO) - $10.21
  • BEARING B, CONNECTING ROD (BLACK) (DAIDO) - $10.21
  • BEARING C, CONNECTING ROD (BROWN) (DAIDO) - $10.21
  • BEARING F, CONNECTING ROD (PINK) (DAIDO) - $10.21
  • BEARING G, CONNECTING ROD (RED) (DAIDO) - $10.21
15
  • KEY, SPECIAL - $4.73
4
  • BOLT, CONNECTING ROD - $2.86
16
  • PIN, DOWEL (8X10) - $0.83
7
  • CRANKSHAFT - $673.56
9
  • WASHER, THRUST (DAIDO) - $6.09
  • WASHER, THRUST (TAIHO) - $6.09
1
  • PISTON SET (STD) - $52.91
  • PISTON SET (OVER SIZE) (0.25) - $52.91
3
  • PIN, PISTON - $10.09
14
  • BOLT-WASHER (14X36) - $10.96
12
  • PLATE, CRANK PULSER - $13.84
13
  • PULLEY, CRANKSHAFT - $82.46
No. Part # Part # / Description Qty Req. List Price Price
1 13010-PZA-A00 13010-PZA-A00 / PISTON SET (STD)

4 $74.73 $52.91
1 13020-PZA-A00 13020-PZA-A00 / PISTON SET (OVER SIZE) (0.25)

0 $74.73 $52.91
2 13011-RMX-004 13011-RMX-004 / RING SET, PISTON (STD)

4 $37.97 $26.88
2 13021-RMX-004 13021-RMX-004 / RING SET, PISTON (OVER SIZE) (0.25)

0 $37.97 $26.88
3 13111-PWA-000 13111-PWA-000 / PIN, PISTON

4 $14.25 $10.09
4 13204-PWA-003 13204-PWA-003 / BOLT, CONNECTING ROD

8 $4.03 $2.86
5 13210-RMX-000 13210-RMX-000 / ROD, CONNECTING

4 $104.40 $73.92
6 13214-PWA-003 13214-PWA-003 / BEARING D, CONNECTING ROD (GREEN) (DAIDO)

8 $14.42 $10.21
6 13211-PWA-003 13211-PWA-003 / BEARING A, CONNECTING ROD (BLUE) (DAIDO)

8 $14.42 $10.21
6 13215-PWA-003 13215-PWA-003 / BEARING E, CONNECTING ROD (YELLOW) (DAIDO)

8 $14.42 $10.21
6 13212-PWA-003 13212-PWA-003 / BEARING B, CONNECTING ROD (BLACK) (DAIDO)

8 $14.42 $10.21
6 13213-PWA-003 13213-PWA-003 / BEARING C, CONNECTING ROD (BROWN) (DAIDO)

8 $14.42 $10.21
6 13216-PWA-003 13216-PWA-003 / BEARING F, CONNECTING ROD (PINK) (DAIDO)

8 $14.42 $10.21
6 13217-PWA-003 13217-PWA-003 / BEARING G, CONNECTING ROD (RED) (DAIDO)

8 $14.42 $10.21
7 13310-PWA-000 13310-PWA-000 / CRANKSHAFT

1 $878.17 $673.56
8 13324-PWA-003 13324-PWA-003 / BEARING D, MAIN (UPPER) (GREEN) (DAIDO)

5 $14.93 $10.57
8 13325-PWA-003 13325-PWA-003 / BEARING E, MAIN (UPPER) (YELLOW) (DAIDO)

5 $14.93 $10.57
8 13326-PWA-003 13326-PWA-003 / BEARING F, MAIN (UPPER) (PINK)(DAIDO)

5 $14.93 $10.57
8 13321-PWA-003 13321-PWA-003 / BEARING A, MAIN (UPPER) (BLUE)(DAIDO)

5 $14.02 $9.92
8 13327-PWA-003 13327-PWA-003 / BEARING G, MAIN (UPPER) (RED) (DAIDO)

5 $14.02 $9.92
8 13323-PWA-003 13323-PWA-003 / BEARING C, MAIN (UPPER) (BROWN) (DAIDO)

5 $14.93 $10.57
8 13322-PWA-003 13322-PWA-003 / BEARING B, MAIN (UPPER) (BLACK) (DAIDO)

5 $14.02 $9.92
9 13331-PR3-003 13331-PR3-003 / WASHER, THRUST (DAIDO)

2 $8.60 $6.09
9 13331-PR3-004 13331-PR3-004 / WASHER, THRUST (TAIHO)

2 $8.60 $6.09
10 13341-PWA-003 13341-PWA-003 / BEARING A, MAIN (LOWER) (BLUE)(DAIDO)

5 $14.02 $9.92
10 13346-PWA-003 13346-PWA-003 / BEARING F, MAIN (LOWER) (PINK)(DAIDO)

5 $14.93 $10.57
10 13344-PWA-003 13344-PWA-003 / BEARING D, MAIN (LOWER) (GREEN) (DAIDO)

5 $14.93 $10.57
10 13345-PWA-003 13345-PWA-003 / BEARING E, MAIN (LOWER) (YELLOW) (DAIDO)

5 $14.93 $10.57
10 13343-PWA-003 13343-PWA-003 / BEARING C, MAIN (LOWER) (BROWN) (DAIDO)

5 $14.93 $10.57
10 13342-PWA-003 13342-PWA-003 / BEARING B, MAIN (LOWER) (BLACK) (DAIDO)

5 $14.02 $9.92
10 13347-PWA-003 13347-PWA-003 / BEARING G, MAIN (LOWER) (RED) (DAIDO)

5 $14.02 $9.92
11 13621-PWA-010 13621-PWA-010 / SPROCKET, CAM CHAIN (23T)

1 $55.98 $39.64
12 13623-PZA-003 13623-PZA-003 / PLATE, CRANK PULSER

1 $19.55 $13.84
13 13810-PZA-013 13810-PZA-013 / PULLEY, CRANKSHAFT

1 $116.47 $82.46
14 90017-PWA-G02 90017-PWA-G02 / BOLT-WASHER (14X36)

1 $15.48 $10.96
15 90704-PH7-000 90704-PH7-000 / KEY, SPECIAL

1 $6.68 $4.73
16 94301-08100 94301-08100 / PIN, DOWEL (8X10)

8 $1.17 $0.83
