PUMP, OIL in TRANSMISSION - AUTOMATIC/AT OIL PUMP for 2005 Honda CIVIC HYBRID

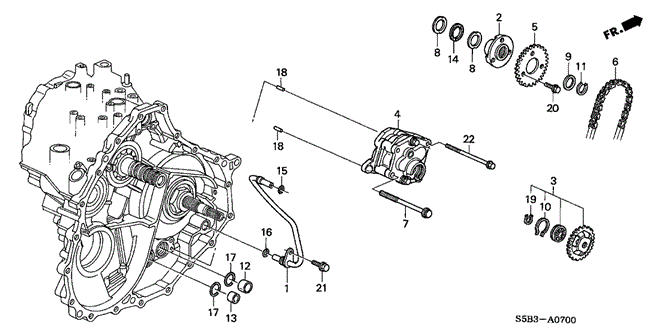

PUMP, OIL in TRANSMISSION - AUTOMATIC/AT OIL PUMP for 2005 Honda CIVIC HYBRID #1
4
  • PUMP, OIL - $174.33
17
  • O-RING (20.7X2.4) - $1.90
3
  • SPROCKET, OIL PUMP DRIVEN - $20.90
18
  • PIN, DOWEL (6X10) - $0.85
18
  • PIN, DOWEL (6X10) - $0.85
13
  • PIN, DOWEL (18X10) - $2.45
21
  • BOLT, FLANGE (6X16) - $0.63
20
  • BOLT, FLANGE (6X12) - $0.71
2
  • HUB, DRIVE SPROCKET - $19.82
6
  • CHAIN, OIL PUMP DRIVE - $16.02
14
  • BEARING, THRUST NEEDLE (22X36X2) - $5.10
7
  • BOLT (8X60) - $3.76
8
  • WASHER, THRUST (22X35X1.5) - $2.55
11
  • CIRCLIP (OUTER) (22MM) - $1.78
19
  • CIRCLIP (OUTER) (12MM) - $0.78
15
  • O-RING (9.6X1.9) - $1.19
22
  • BOLT, FLANGE (6X60) - $0.85
1
  • PIPE, OIL PASSAGE - $10.42
17
  • O-RING (20.7X2.4) - $1.90
8
  • WASHER, THRUST (22X35X1.5) - $2.55
12
  • PIN, DOWEL (22X10) - $2.45
9
  • SHIM C (22X28) (1.15) - $4.70
  • SHIM D (22X28) (1.40) - $4.72
  • SHIM E (22X28) (1.65) - $4.72
  • SHIM F (22X28) (1.90) - $4.72
  • SHIM G (22X28) (2.15) - $4.72
  • SHIM H (22X28) (2.40) - $4.72
16
  • O-RING (12.8X1.9) (NOK) - $1.76
5
  • SPROCKET, OIL PUMP DRIVEN - $9.46
10
  • CIRCLIP (OUTER) (24MM) - $1.78
No. Part # Part # / Description Qty Req. List Price Price
1 22760-PZC-000 22760-PZC-000 / PIPE, OIL PASSAGE

1 $14.72 $10.42
2 23954-PZC-000 23954-PZC-000 / HUB, DRIVE SPROCKET

1 $28.00 $19.82
3 25010-P4V-305 25010-P4V-305 / SPROCKET, OIL PUMP DRIVEN

1 $29.52 $20.90
4 25100-PZC-305 25100-PZC-305 / PUMP, OIL

1 $246.23 $174.33
5 25161-P4V-000 25161-P4V-000 / SPROCKET, OIL PUMP DRIVEN

1 $13.37 $9.46
6 25165-PLY-003 25165-PLY-003 / CHAIN, OIL PUMP DRIVE

1 $22.63 $16.02
7 90002-P4V-000 90002-P4V-000 / BOLT (8X60)

1 $5.32 $3.76
8 90402-PLY-000 90402-PLY-000 / WASHER, THRUST (22X35X1.5)

2 $3.60 $2.55
9 90573-P4V-000 90573-P4V-000 / SHIM C (22X28) (1.15)

1 $6.63 $4.70
9 90574-P4V-000 90574-P4V-000 / SHIM D (22X28) (1.40)

1 $6.67 $4.72
9 90575-P4V-000 90575-P4V-000 / SHIM E (22X28) (1.65)

1 $6.67 $4.72
9 90576-P4V-000 90576-P4V-000 / SHIM F (22X28) (1.90)

1 $6.67 $4.72
9 90577-P4V-000 90577-P4V-000 / SHIM G (22X28) (2.15)

1 $6.67 $4.72
9 90578-P4V-000 90578-P4V-000 / SHIM H (22X28) (2.40)

1 $6.67 $4.72
10 90607-P4V-000 90607-P4V-000 / CIRCLIP (OUTER) (24MM)

1 $2.52 $1.78
11 90609-P4V-000 90609-P4V-000 / CIRCLIP (OUTER) (22MM)

1 $2.52 $1.78
12 90703-P4V-000 90703-P4V-000 / PIN, DOWEL (22X10)

1 $3.47 $2.45
13 90704-P4V-000 90704-P4V-000 / PIN, DOWEL (18X10)

1 $3.47 $2.45
14 91131-PLY-005 91131-PLY-005 / BEARING, THRUST NEEDLE (22X36X2)

1 $7.20 $5.10
15 91302-P7W-A00 91302-P7W-A00 / O-RING (9.6X1.9)

1 $1.68 $1.19
16 91307-PK4-003 91307-PK4-003 / O-RING (12.8X1.9) (NOK)

1 $2.48 $1.76
17 91327-P4V-003 91327-P4V-003 / O-RING (20.7X2.4)

2 $2.68 $1.90
18 94303-06100 94303-06100 / PIN, DOWEL (6X10)

2 $1.20 $0.85
19 94510-12000 94510-12000 / CIRCLIP (OUTER) (12MM)

1 $1.10 $0.78
20 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

3 $1.00 $0.71
21 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

1 $0.88 $0.63
22 95701-06060-08 95701-06060-08 / BOLT, FLANGE (6X60)

2 $1.20 $0.85
