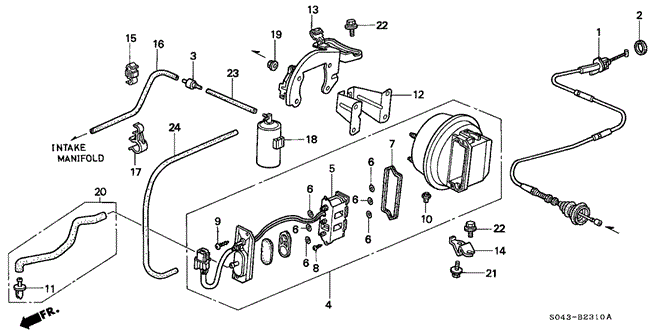

ACTUATOR ASSY. in CHASSIS/AUTO CRUISE for 1996 Honda CIVIC SEDAN

ACTUATOR ASSY. in CHASSIS/AUTO CRUISE for 1996 Honda CIVIC SEDAN #1
13
  • STAY, ACTUATOR - $15.97
22
  • BOLT-WASHER (6X16) - $0.72
21
  • BOLT-WASHER (6X10) - $0.63
6
  • O-RING (P7A) - $1.83
1
  • WIRE, ACTUATOR - $28.39
4
  • ACTUATOR ASSY. - $179.91
6
  • O-RING (P7A) - $1.83
8
  • SCREW, TAPPING (3X10) - $1.52
6
  • O-RING (P7A) - $1.83
6
  • O-RING (P7A) - $1.83
3
  • VALVE, CHECK - $21.02
9
  • SCREW, TAPPING (4X16) - $1.78
19
  • NUT, FLANGE (6MM) (DACRO COATING) - $1.95
6
  • O-RING (P7A) - $1.83
23
  • BULK HOSE, VACUUM (3.5X8000) - $37.38
5
  • VALVE - $94.23
24
  • BULK HOSE, VACUUM (3.5X8000) - $37.38
7
  • GASKET - $4.01
20
  • TUBE, ACTUATOR VENT - $14.94
16
  • TUBE, VACUUM - $4.97
11
  • JOINT, VENT TUBE
10
  • DRAIN (HITACHI) - $2.67
12
  • SUPPORT, WIRE - $6.45
6
  • O-RING (P7A) - $1.83
14
  • STAY, ACTUATOR (C) - $2.78
22
  • BOLT-WASHER (6X16) - $0.72
17
  • CLAMP - $2.43
15
  • CLAMP, ACTUATOR WIRE
18
  • TANK, VACUUM - $22.97
2
  • SEAL, THROTTLE CABLE - $3.85
No. Part # Part # / Description Qty Req. List Price Price
1 17880-S01-A01 17880-S01-A01 / WIRE, ACTUATOR

1 $40.10 $28.39
2 17921-SA4-730 17921-SA4-730 / SEAL, THROTTLE CABLE

1 $5.43 $3.85
3 36145-PM4-004 36145-PM4-004 / VALVE, CHECK

1 $29.68 $21.02
4 36520-P2F-A01 36520-P2F-A01 / ACTUATOR ASSY.

1 $254.12 $179.91
5 36521-P2F-A01 36521-P2F-A01 / VALVE

1 $133.10 $94.23
6 36522-P0A-A01 36522-P0A-A01 / O-RING (P7A)

6 $2.58 $1.83
7 36523-P0A-A01 36523-P0A-A01 / GASKET

1 $5.67 $4.01
8 36524-P0A-A01 36524-P0A-A01 / SCREW, TAPPING (3X10)

2 $2.15 $1.52
9 36525-P0A-A01 36525-P0A-A01 / SCREW, TAPPING (4X16)

2 $2.52 $1.78
10 36529-PC1-014 36529-PC1-014 / DRAIN (HITACHI)

1 $3.77 $2.67
11 36600-P2F-A01 36600-P2F-A01 / JOINT, VENT TUBE

1 - -
12 36612-P2F-A00 36612-P2F-A00 / SUPPORT, WIRE

1 $9.12 $6.45
13 36613-P2F-A00 36613-P2F-A00 / STAY, ACTUATOR

1 $22.55 $15.97
14 36614-P2F-A00 36614-P2F-A00 / STAY, ACTUATOR (C)

1 $3.93 $2.78
15 36615-P2F-A01 36615-P2F-A01 / CLAMP, ACTUATOR WIRE

1 - -
16 36616-P2F-A00 36616-P2F-A00 / TUBE, VACUUM

1 $7.02 $4.97
17 36617-P2F-A01 36617-P2F-A01 / CLAMP

1 $3.43 $2.43
18 36625-P2F-A01 36625-P2F-A01 / TANK, VACUUM

1 $32.45 $22.97
19 90308-SD2-A00 90308-SD2-A00 / NUT, FLANGE (6MM) (DACRO COATING)

4 $2.75 $1.95
20 91426-P2F-A00 91426-P2F-A00 / TUBE, ACTUATOR VENT

1 $21.10 $14.94
21 93401-06010-08 93401-06010-08 / BOLT-WASHER (6X10)

1 $0.88 $0.63
22 93403-06016-08 93403-06016-08 / BOLT-WASHER (6X16)

3 $1.02 $0.72
24 95005-35008-10M 95005-35008-10M / BULK HOSE, VACUUM (3.5X8000)

1 $52.80 $37.38
