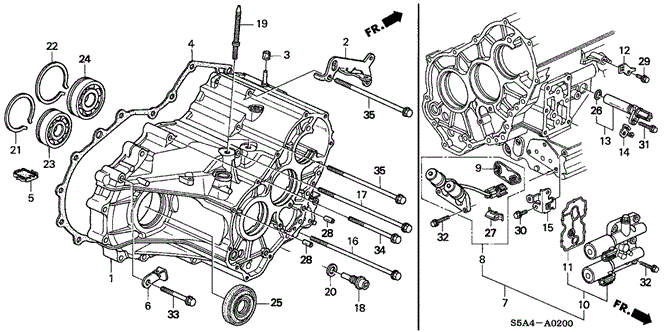

CASE, TRANSMISSION in TRANSMISSION - AUTOMATIC/AT TRANSMISSION HOUSING for 2003 Honda CIVIC SEDAN

CASE, TRANSMISSION in TRANSMISSION - AUTOMATIC/AT TRANSMISSION HOUSING for 2003 Honda CIVIC SEDAN #1
28
  • PIN, DOWEL (8X14) - $0.83
5
  • MAGNET, TRANSMISSION - $5.40
34
  • BOLT, FLANGE (10X80) - $1.27
24
  • BEARING, BALL (26X75X19) - $36.45
28
  • PIN, DOWEL (8X14) - $0.83
7
  • SOLENOID SET, SHIFT - $339.13
35
  • BOLT, FLANGE (10X140) - $1.96
25
  • OIL SEAL (35X76X9) (NOK) - $9.61
23
  • BEARING, BALL (63/26N) - $30.27
3
  • CAP, BREATHER - $2.75
21
  • RING, SNAP (68MM) - $5.11
27
  • CLIP, HOOD WIRE - $3.80
6
  • STAY, PICK-UP CONNECTOR - $3.74
16
  • BOLT, FLANGE (10X170) - $7.17
1
  • CASE, TRANSMISSION - $510.48
33
  • BOLT, FLANGE (10X60) - $1.06
29
  • BOLT, FLANGE (6X10) - $0.61
15
  • STAY, SOLENOID HARNESS - $3.76
31
  • BOLT, FLANGE (6X18) - $0.63
4
  • GASKET, TORQUE CONVERTER CASE - $11.65
32
  • BOLT, FLANGE (6X20) - $0.15
18
  • BOLT, PLUG (18MM) - $6.71
30
  • BOLT, FLANGE (6X12) - $0.71
13
  • PICK-UP ASSY., MAIN (DENSO) - $83.67
9
  • FILTER ASSY., SHIFT SOLENOID - $15.68
26
  • O-RING (16X2.1) (NOK) - $1.43
19
  • BOLT, STUD (12X99.8) - $3.45
32
  • BOLT, FLANGE (6X20) - $0.15
22
  • RING, SNAP (75MM) - $3.48
35
  • BOLT, FLANGE (10X140) - $1.96
20
  • WASHER, DRAIN PLUG (18MM) - $1.65
8
  • SOLENOID ASSY., SHIFT - $140.51
12
  • STAY, SOLENOID HARNESS - $1.72
17
  • BOLT, FLANGE (10X180) - $7.17
10
  • SOLENOID ASSY., LINEAR - $200.46
11
  • GASKET, LINEAR SOLENOID - $1.51
2
  • HANGER, TRANSMISSION - $5.45
No. Part # Part # / Description Qty Req. List Price Price
1 21210-PLX-A00 21210-PLX-A00 / CASE, TRANSMISSION

1 $721.02 $510.48
2 21232-PLX-000 21232-PLX-000 / HANGER, TRANSMISSION

1 $7.70 $5.45
3 21396-PX5-000 21396-PX5-000 / CAP, BREATHER

1 $3.88 $2.75
4 21811-PLX-000 21811-PLX-000 / GASKET, TORQUE CONVERTER CASE

1 $16.45 $11.65
5 25422-PN6-801 25422-PN6-801 / MAGNET, TRANSMISSION

1 $7.63 $5.40
6 25967-PLX-000 25967-PLX-000 / STAY, PICK-UP CONNECTOR

1 $5.28 $3.74
7 28015-PLX-305 28015-PLX-305 / SOLENOID SET, SHIFT

0 $479.00 $339.13
8 28200-PLX-003 28200-PLX-003 / SOLENOID ASSY., SHIFT

1 $198.47 $140.51
9 28220-PLX-003 28220-PLX-003 / FILTER ASSY., SHIFT SOLENOID

1 $22.15 $15.68
10 28250-PLX-305 28250-PLX-305 / SOLENOID ASSY., LINEAR

1 $283.13 $200.46
11 28251-PLX-003 28251-PLX-003 / GASKET, LINEAR SOLENOID

1 $2.13 $1.51
12 28296-PKN-000 28296-PKN-000 / STAY, SOLENOID HARNESS

1 $2.43 $1.72
13 28810-P4R-003 28810-P4R-003 / PICK-UP ASSY., MAIN (DENSO)

1 $118.18 $83.67
15 28812-PLX-000 28812-PLX-000 / STAY, SOLENOID HARNESS

1 $5.32 $3.76
16 90002-P56-000 90002-P56-000 / BOLT, FLANGE (10X170)

1 $10.13 $7.17
17 90003-P56-000 90003-P56-000 / BOLT, FLANGE (10X180)

1 $10.13 $7.17
18 90081-PX4-003 90081-PX4-003 / BOLT, PLUG (18MM)

1 $9.48 $6.71
19 90380-S5A-000 90380-S5A-000 / BOLT, STUD (12X99.8)

2 $4.87 $3.45
20 90471-PX4-000 90471-PX4-000 / WASHER, DRAIN PLUG (18MM)

1 $2.33 $1.65
21 90609-PC8-000 90609-PC8-000 / RING, SNAP (68MM)

1 $7.22 $5.11
22 90615-PF4-000 90615-PF4-000 / RING, SNAP (75MM)

1 $4.92 $3.48
23 91002-PK4-003 91002-PK4-003 / BEARING, BALL (63/26N)

1 $42.75 $30.27
24 91006-PLX-003 91006-PLX-003 / BEARING, BALL (26X75X19)

1 $51.48 $36.45
25 91206-689-005 91206-689-005 / OIL SEAL (35X76X9) (NOK)

1 $13.57 $9.61
26 91309-PX4-003 91309-PX4-003 / O-RING (16X2.1) (NOK)

1 $2.02 $1.43
27 91558-SE3-003 91558-SE3-003 / CLIP, HOOD WIRE

1 $5.37 $3.80
28 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.83
29 95701-06010-08 95701-06010-08 / BOLT, FLANGE (6X10)

1 $0.87 $0.61
30 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.71
31 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

1 $0.88 $0.63
32 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

9 $0.22 $0.15
33 95701-10060-08 95701-10060-08 / BOLT, FLANGE (10X60)

7 $1.50 $1.06
34 95701-10080-08 95701-10080-08 / BOLT, FLANGE (10X80)

3 $1.80 $1.27
35 95701-10140-08 95701-10140-08 / BOLT, FLANGE (10X140)

6 $2.77 $1.96
