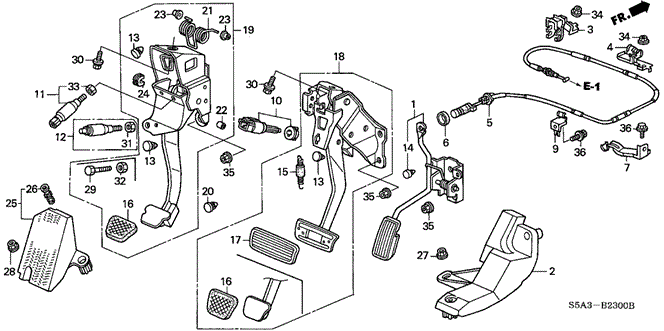

PEDAL ASSY., CLUTCH in CHASSIS/PEDAL for 2003 Honda CIVIC SEDAN

PEDAL ASSY., CLUTCH in CHASSIS/PEDAL for 2003 Honda CIVIC SEDAN #1
30
  • BOLT-WASHER (8X16) - $0.74
3
  • STAY A, ACTUATOR WIRE - $3.34
24
  • BUSH B, ASSISTANT - $1.97
  • BUSH B, CLUTCH ASSISTANT - $2.77
29
  • BOLT, HEX. (10X30) - $0.97
  • BOLT, HEX. (10X25) - $0.85
2
  • STOPPER, ACCELERATOR STROKE - $5.63
34
  • NUT, CAP (6MM) (BLACK) - $2.55
27
  • NUT, PAINT CUTTING (6MM) - $2.15
35
  • NUT, FLANGE (8MM) - $0.18
14
  • PAD, PEDAL STOPPER - $3.25
11
  • SWITCH ASSY., CLUTCH (INHIBITER) - $36.01
6
  • SEAL, THROTTLE CABLE - $3.85
7
  • CLAMP, THROTTLE WIRE - $1.88
16
  • COVER, PEDAL - $4.19
  • COVER, PEDAL - $3.45
10
  • SWITCH ASSY., STOP (TOYO) - $12.93
  • SWITCH ASSY., STOP (TOYO) - $12.93
  • SWITCH ASSY., STOP (PANASONIC) - $3.59
15
  • SPRING ASSY., PEDAL RETURN - $2.50
  • SPRING ASSY., PEDAL RETURN - $3.25
16
  • COVER, PEDAL - $4.19
  • COVER, PEDAL - $3.45
28
  • NUT, PAINT CUTTING (6MM) - $2.15
  • NUT, PAINT CUTTING (6MM) - $2.15
35
  • NUT, FLANGE (8MM) - $0.18
23
  • BUSH A, CLUTCH ASSISTANT - $2.27
  • BUSH A, CLUTCH ASSISTANT - $2.22
20
  • STOPPER, CLUTCH PEDAL - $5.04
30
  • BOLT-WASHER (8X16) - $0.74
33
  • NUT, HEX. (12MM) - $0.54
23
  • BUSH A, CLUTCH ASSISTANT - $2.27
  • BUSH A, CLUTCH ASSISTANT - $2.22
32
  • NUT, HEX. (10MM) - $1.00
4
  • STAY B, ACTUATOR WIRE - $3.39
5
  • WIRE, THROTTLE - $13.74
34
  • NUT, CAP (6MM) (BLACK) - $2.55
26
  • CLIP, FOOTREST - $0.90
21
  • SPRING, CLUTCH RETURN - $3.84
  • SPRING, CLUTCH RETURN - $2.45
36
  • BOLT, FLANGE (6X12) - $0.71
36
  • BOLT, FLANGE (6X12) - $0.71
25
  • BRACKET, FOOTREST - $4.80
1
  • PEDAL ASSY., ACCELERATOR - $29.69
  • PEDAL ASSY., ACCELERATOR - $18.82
13
  • PAD, PEDAL STOPPER - $1.72
  • PAD, PEDAL STOPPER - $2.19
19
  • PEDAL ASSY., CLUTCH - $54.24
  • PEDAL ASSY., CLUTCH - $61.45
22
  • BUSH, PEDAL PIN - $2.28
  • BUSH, PEDAL PIN - $2.43
35
  • NUT, FLANGE (8MM) - $0.18
18
  • PEDAL ASSY., BRAKE - $30.26
  • PEDAL ASSY., BRAKE - $57.83
13
  • PAD, PEDAL STOPPER - $1.72
  • PAD, PEDAL STOPPER - $2.19
9
  • CLAMP, THROTTLE WIRE - $2.17
13
  • PAD, PEDAL STOPPER - $1.72
  • PAD, PEDAL STOPPER - $2.19
No. Part # Part # / Description Qty Req. List Price Price
1 17800-S6M-A03 17800-S6M-A03 / PEDAL ASSY., ACCELERATOR

1 $41.93 $29.69
1 17800-S5F-A02 17800-S5F-A02 / PEDAL ASSY., ACCELERATOR

1 $26.58 $18.82
2 17818-S5A-A01 17818-S5A-A01 / STOPPER, ACCELERATOR STROKE

1 $7.95 $5.63
3 17881-PLM-A00 17881-PLM-A00 / STAY A, ACTUATOR WIRE

1 $4.72 $3.34
4 17882-PLM-A00 17882-PLM-A00 / STAY B, ACTUATOR WIRE

1 $4.78 $3.39
5 17910-S5A-G03 17910-S5A-G03 / WIRE, THROTTLE

1 $19.40 $13.74
6 17921-SA4-730 17921-SA4-730 / SEAL, THROTTLE CABLE

1 $5.43 $3.85
7 17930-S5A-A00 17930-S5A-A00 / CLAMP, THROTTLE WIRE

1 $2.65 $1.88
9 17932-S5A-A00 17932-S5A-A00 / CLAMP, THROTTLE WIRE

1 $3.07 $2.17
10 35350-S5A-J04 35350-S5A-J04 / SWITCH ASSY., STOP (TOYO)

1 $18.27 $12.93
10 35350-S5A-J04 35350-S5A-J04 / SWITCH ASSY., STOP (TOYO)

1 $18.27 $12.93
10 35350-SMA-003 35350-SMA-003 / SWITCH ASSY., STOP (PANASONIC)

1 $5.07 $3.59
11 35710-SE3-A01 35710-SE3-A01 / SWITCH ASSY., CLUTCH (INHIBITER)

1 $50.87 $36.01
13 46505-SA5-000 46505-SA5-000 / PAD, PEDAL STOPPER

3 $2.43 $1.72
13 46505-S5F-A01 46505-S5F-A01 / PAD, PEDAL STOPPER

3 $3.10 $2.19
14 46505-SA7-000 46505-SA7-000 / PAD, PEDAL STOPPER

1 $4.58 $3.25
15 46530-S5A-003 46530-S5A-003 / SPRING ASSY., PEDAL RETURN

1 $3.53 $2.50
15 46530-S5F-A01 46530-S5F-A01 / SPRING ASSY., PEDAL RETURN

1 $4.58 $3.25
16 46545-SA5-000 46545-SA5-000 / COVER, PEDAL

2 $5.92 $4.19
16 46545-S5F-A01 46545-S5F-A01 / COVER, PEDAL

2 $4.87 $3.45
18 46600-S5F-A03 46600-S5F-A03 / PEDAL ASSY., BRAKE

1 $42.73 $30.26
18 46600-S5A-A01 46600-S5A-A01 / PEDAL ASSY., BRAKE

1 $81.68 $57.83
19 46900-S5A-G01 46900-S5A-G01 / PEDAL ASSY., CLUTCH

1 $76.62 $54.24
19 46900-S5F-L52 46900-S5F-L52 / PEDAL ASSY., CLUTCH

1 $86.80 $61.45
20 46905-SK7-000 46905-SK7-000 / STOPPER, CLUTCH PEDAL

1 $7.12 $5.04
21 46907-S5A-A01 46907-S5A-A01 / SPRING, CLUTCH RETURN

1 $5.42 $3.84
21 46907-S5F-A02 46907-S5F-A02 / SPRING, CLUTCH RETURN

1 $3.47 $2.45
22 46911-SD4-930 46911-SD4-930 / BUSH, PEDAL PIN

1 $3.22 $2.28
22 46911-S5F-A01 46911-S5F-A01 / BUSH, PEDAL PIN

1 $3.43 $2.43
23 46981-S2A-003 46981-S2A-003 / BUSH A, CLUTCH ASSISTANT

2 $3.20 $2.27
23 46981-S5F-A02 46981-S5F-A02 / BUSH A, CLUTCH ASSISTANT

2 $3.13 $2.22
24 46982-S2A-003 46982-S2A-003 / BUSH B, ASSISTANT

1 $2.78 $1.97
24 46982-S5F-A01 46982-S5F-A01 / BUSH B, CLUTCH ASSISTANT

1 $3.92 $2.77
25 46991-S5A-A01 46991-S5A-A01 / BRACKET, FOOTREST

1 $6.78 $4.80
26 46992-SV4-003 46992-SV4-003 / CLIP, FOOTREST

2 $1.27 $0.90
28 90301-SV7-000 90301-SV7-000 / NUT, PAINT CUTTING (6MM)

1 $3.03 $2.15
28 90301-S5A-000 90301-S5A-000 / NUT, PAINT CUTTING (6MM)

1 $3.03 $2.15
29 92201-10030-0H 92201-10030-0H / BOLT, HEX. (10X30)

1 $1.37 $0.97
29 92101-10025-0H 92101-10025-0H / BOLT, HEX. (10X25)

1 $1.20 $0.85
30 93404-08016-08 93404-08016-08 / BOLT-WASHER (8X16)

2 $1.05 $0.74
32 94002-10000-0S 94002-10000-0S / NUT, HEX. (10MM)

1 $1.42 $1.00
33 94002-12080-0S 94002-12080-0S / NUT, HEX. (12MM)

1 $0.77 $0.54
34 90207-PG6-010 90207-PG6-010 / NUT, CAP (6MM) (BLACK)

2 $3.60 $2.55
35 94050-08080 94050-08080 / NUT, FLANGE (8MM)

8 $0.25 $0.18
36 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

2 $1.00 $0.71
