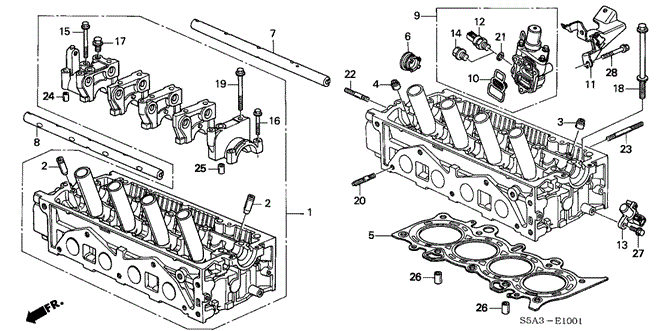

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (VTEC) for 2003 Honda CIVIC SEDAN

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (VTEC) for 2003 Honda CIVIC SEDAN #1
20
  • BOLT, STUD (8X37) - $2.01
  • BOLT, STUD (8X38) - $2.01
19
  • BOLT, FLANGE (8X80) - $2.41
16
  • BOLT, FLANGE (6X35) - $1.79
  • BOLT, FLANGE (6X35) - $1.79
6
  • PLUG, CYLINDER HEAD - $5.97
2
  • GUIDE, VALVE (OVER SIZE) - $7.17
26
  • PIN, DOWEL (14X20) - $0.97
3
  • SEAL A, VALVE STEM (ARAI) - $1.13
  • SEAL A, VALVE STEM (NOK) - $1.13
4
  • SEAL B, VALVE STEM (NOK) - $1.13
24
  • PIN, DOWEL (8X14) - $0.83
25
  • PIN, DOWEL (10X16) - $0.94
10
  • FILTER ASSY., SPOOL VALVE - $14.29
5
  • GASKET, CYLINDER HEAD (NIPPON LEAKLESS) - $30.46
12
  • SWITCH ASSY., VALVE TIMING OILPRESSURE - $46.85
28
  • BOLT, FLANGE (6X45) - $0.85
26
  • PIN, DOWEL (14X20) - $0.97
21
  • O-RING (13X1.5) (ARAI) - $1.83
13
  • SENSOR ASSY., TDC CYLINDER - $44.56
1
  • CYLINDER HEAD ASSY. - $813.36
7
  • SHAFT, IN. ROCKER ARM - $32.97
23
  • BOLT, STUD (8X50) - $1.05
18
  • BOLT-WASHER (10X140) (SAGA) - $4.63
8
  • SHAFT, EX. ROCKER ARM - $41.05
2
  • GUIDE, VALVE (OVER SIZE) - $7.17
22
  • BOLT, STUD (8X32) - $0.92
15
  • BOLT, FLANGE (6X50) - $1.70
11
  • STAY, RESONATOR - $8.20
9
  • VALVE ASSY., SPOOL - $162.65
17
  • BOLT, SEALING (10MM) - $2.81
27
  • BOLT, FLANGE (6X16) - $0.63
No. Part # Part # / Description Qty Req. List Price Price
1 12100-PLE-000 12100-PLE-000 / CYLINDER HEAD ASSY.

1 $1,060.45 $813.36
2 12204-PJ7-305 12204-PJ7-305 / GUIDE, VALVE (OVER SIZE)

16 $10.13 $7.17
3 12210-PZ1-004 12210-PZ1-004 / SEAL A, VALVE STEM (ARAI)

8 $1.75 $1.13
3 12210-PZ1-004 12210-PZ1-004 / SEAL A, VALVE STEM (NOK)

8 $1.75 $1.13
4 12211-PZ1-004 12211-PZ1-004 / SEAL B, VALVE STEM (NOK)

8 $1.75 $1.13
5 12251-PLC-004 12251-PLC-004 / GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

1 $43.02 $30.46
6 12513-P72-003 12513-P72-003 / PLUG, CYLINDER HEAD

1 $8.43 $5.97
7 14631-PLE-000 14631-PLE-000 / SHAFT, IN. ROCKER ARM

1 $46.57 $32.97
8 14633-P2A-000 14633-P2A-000 / SHAFT, EX. ROCKER ARM

1 $57.98 $41.05
9 15810-PLR-A01 15810-PLR-A01 / VALVE ASSY., SPOOL

1 $229.73 $162.65
10 15825-P2M-005 15825-P2M-005 / FILTER ASSY., SPOOL VALVE

1 $20.18 $14.29
11 17233-PLD-000 17233-PLD-000 / STAY, RESONATOR

1 $11.58 $8.20
12 37250-PHM-003 37250-PHM-003 / SWITCH ASSY., VALVE TIMING OILPRESSURE

1 $66.17 $46.85
13 37840-RJH-006 37840-RJH-006 / SENSOR ASSY., TDC CYLINDER

1 $62.93 $44.56
15 90004-PT0-000 90004-PT0-000 / BOLT, FLANGE (6X50)

2 $2.40 $1.70
16 90003-PT2-000 90003-PT2-000 / BOLT, FLANGE (6X35)

2 $2.53 $1.79
16 90004-PT2-000 90004-PT2-000 / BOLT, FLANGE (6X35)

2 $2.53 $1.79
17 90004-P2J-000 90004-P2J-000 / BOLT, SEALING (10MM)

1 $3.97 $2.81
18 90005-PM3-003 90005-PM3-003 / BOLT-WASHER (10X140) (SAGA)

10 $6.53 $4.63
19 90007-P08-000 90007-P08-000 / BOLT, FLANGE (8X80)

10 $3.40 $2.41
20 90026-PE0-000 90026-PE0-000 / BOLT, STUD (8X37)

3 $2.83 $2.01
20 90026-PT0-000 90026-PT0-000 / BOLT, STUD (8X38)

3 $2.83 $2.01
21 91319-PR3-003 91319-PR3-003 / O-RING (13X1.5) (ARAI)

1 $2.58 $1.83
22 92900-08032-1B 92900-08032-1B / BOLT, STUD (8X32)

2 $1.30 $0.92
23 92900-08050-1B 92900-08050-1B / BOLT, STUD (8X50)

3 $1.48 $1.05
24 94301-08140 94301-08140 / PIN, DOWEL (8X14)

1 $1.17 $0.83
25 94301-10160 94301-10160 / PIN, DOWEL (10X16)

9 $1.33 $0.94
26 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.97
27 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

1 $0.88 $0.63
28 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

3 $1.20 $0.85
