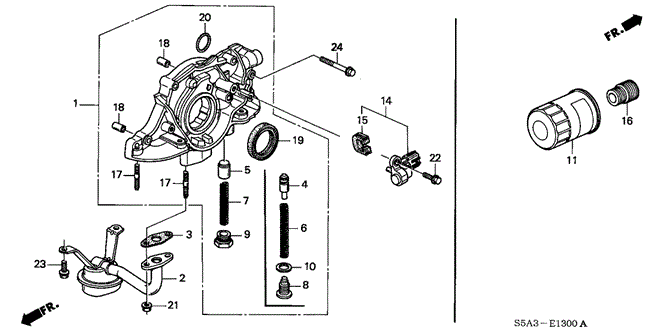

PUMP ASSY., OIL (AISIN) in ENGINE/OIL PUMP - OIL STRAINER for 2003 Honda CIVIC SEDAN

PUMP ASSY., OIL (AISIN) in ENGINE/OIL PUMP - OIL STRAINER for 2003 Honda CIVIC SEDAN #1
10
  • WASHER, SEALING (14MM) - $2.62
19
  • OIL SEAL (38X50X7) (ARAI) - $4.33
24
  • BOLT, FLANGE (6X35) - $0.73
3
  • GASKET, OIL STRAINER - $1.91
22
  • BOLT, FLANGE (6X16) - $0.63
18
  • PIN, DOWEL (8X11) (AISIN) - $1.71
  • PIN, DOWEL (8X14) - $0.83
2
  • STRAINER, OIL - $60.32
5
  • VALVE, OIL PUMP RELIEF (AISIN) - $7.17
16
  • HOLDER, OIL FILTER - $3.46
8
  • BOLT, SEALING (14MM) (YAMADA) - $2.12
17
  • BOLT, STUD (6X28) (AISIN) - $2.09
  • BOLT, STUD (6X28) - $2.62
14
  • SENSOR ASSY., CRANK - $75.79
4
  • VALVE, RELIEF - $6.18
11
  • FILTER, OIL (FILTECH TOYO ROKI)
  • FILTER, OIL (HONEYWELL) - $4.98
  • FILTER, OIL (TOYO ROKI)
1
  • PUMP ASSY., OIL (AISIN) - $259.95
  • PUMP ASSY., OIL (YAMADA) - $259.95
15
  • GROMMET, CRANK SENSOR - $2.35
21
  • NUT, FLANGE (6MM) - $0.17
17
  • BOLT, STUD (6X28) (AISIN) - $2.09
  • BOLT, STUD (6X28) - $2.62
6
  • SPRING, RELIEF VALVE - $2.76
9
  • BOLT, SEALING (18MM) (AISIN) - $3.42
23
  • BOLT, FLANGE (6X18) - $0.63
18
  • PIN, DOWEL (8X11) (AISIN) - $1.71
  • PIN, DOWEL (8X14) - $0.83
7
  • SPRING, OIL PUMP RELIEF VALVE (AISIN) - $3.07
20
  • O-RING (26.2X2.4) (AISIN) - $1.92
  • O-RING (26.2X2.4) (NOK) - $0.85
  • O-RING (26.2X2.4) (YAMADA SOMBOON) - $0.85
No. Part # Part # / Description Qty Req. List Price Price
1 15100-PLC-003 15100-PLC-003 / PUMP ASSY., OIL (AISIN)

1 $367.17 $259.95
1 15100-PLC-003 15100-PLC-003 / PUMP ASSY., OIL (YAMADA)

1 $367.17 $259.95
2 15220-PLC-000 15220-PLC-000 / STRAINER, OIL

1 $85.20 $60.32
3 15221-PZ1-000 15221-PZ1-000 / GASKET, OIL STRAINER

1 $2.70 $1.91
4 15231-PM3-000 15231-PM3-000 / VALVE, RELIEF

1 $8.73 $6.18
5 15231-P2J-005 15231-P2J-005 / VALVE, OIL PUMP RELIEF (AISIN)

1 $10.13 $7.17
6 15232-PM3-000 15232-PM3-000 / SPRING, RELIEF VALVE

1 $3.90 $2.76
7 15232-P2J-005 15232-P2J-005 / SPRING, OIL PUMP RELIEF VALVE (AISIN)

1 $4.33 $3.07
8 15233-P2A-003 15233-P2A-003 / BOLT, SEALING (14MM) (YAMADA)

1 $3.00 $2.12
9 15233-P2J-005 15233-P2J-005 / BOLT, SEALING (18MM) (AISIN)

1 $4.83 $3.42
10 15302-PE0-300 15302-PE0-300 / WASHER, SEALING (14MM)

1 $3.70 $2.62
11 15400-PLM-A01 15400-PLM-A01 / FILTER, OIL (FILTECH TOYO ROKI)

1 - -
11 15400-PLM-A02 15400-PLM-A02 / FILTER, OIL (HONEYWELL)

1 $7.04 $4.98
11 15400-PLM-A01 15400-PLM-A01 / FILTER, OIL (TOYO ROKI)

1 - -
14 37500-PLC-015 37500-PLC-015 / SENSOR ASSY., CRANK

1 $107.05 $75.79
15 37509-PLC-015 37509-PLC-015 / GROMMET, CRANK SENSOR

1 $3.32 $2.35
16 90015-PH1-013 90015-PH1-013 / HOLDER, OIL FILTER

1 $4.88 $3.46
17 90042-P2J-005 90042-P2J-005 / BOLT, STUD (6X28) (AISIN)

6 $2.95 $2.09
17 90042-PR3-000 90042-PR3-000 / BOLT, STUD (6X28)

6 $3.70 $2.62
18 90701-P2J-005 90701-P2J-005 / PIN, DOWEL (8X11) (AISIN)

2 $2.42 $1.71
18 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.83
19 91212-PLM-A01 91212-PLM-A01 / OIL SEAL (38X50X7) (ARAI)

1 $6.12 $4.33
20 91308-P2J-005 91308-P2J-005 / O-RING (26.2X2.4) (AISIN)

1 $2.72 $1.92
20 91308-P3R-T01 91308-P3R-T01 / O-RING (26.2X2.4) (NOK)

1 $1.20 $0.85
20 91308-P3R-T01 91308-P3R-T01 / O-RING (26.2X2.4) (YAMADA SOMBOON)

1 $1.20 $0.85
21 94050-06080 94050-06080 / NUT, FLANGE (6MM)

2 $0.23 $0.17
22 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

1 $0.88 $0.63
23 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

2 $0.88 $0.63
24 95701-06035-08 95701-06035-08 / BOLT, FLANGE (6X35)

5 $1.03 $0.73
