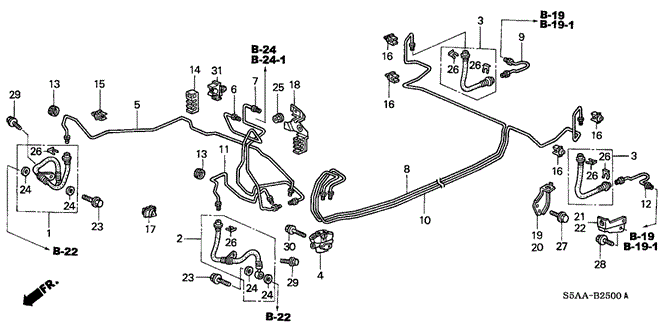

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE LINES for 2004 Honda CIVIC SEDAN

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE LINES for 2004 Honda CIVIC SEDAN #1
1
  • HOSE SET, R. FR. BRAKE - $29.03
24
  • GASKET, OIL BOLT - $2.23
9
  • PIPE E, R. BRAKE - $8.13
4
  • VALVE ASSY., PROPORTIONING - $98.61
24
  • GASKET, OIL BOLT - $2.23
13
  • GROMMET A, BRAKE PIPE - $2.71
23
  • BOLT, OIL - $3.91
28
  • BOLT, FLANGE (8X16) - $0.70
  • BOLT-WASHER (8X16) - $0.80
2
  • HOSE SET, L. FR. BRAKE - $28.90
26
  • CLIP, BRAKE HOSE - $0.98
19
  • BRACKET A, R. RR. BRAKE HOSE - $5.98
18
  • CLIP, BRAKE PIPE - $5.19
8
  • PIPE C, BRAKE - $23.77
17
  • CLIP, BRAKE PIPE - $1.83
26
  • CLIP, BRAKE HOSE - $0.98
25
  • NUT, PAINT CUTTING (6MM) - $1.18
11
  • PIPE F, BRAKE - $17.37
20
  • BRACKET A, L. RR. BRAKE HOSE - $5.98
29
  • BOLT, FLANGE (8X16) - $0.70
27
  • BOLT-WASHER (8X16) - $0.80
26
  • CLIP, BRAKE HOSE - $0.98
3
  • HOSE SET, RR. BRAKE - $20.18
14
  • CLIP A, BRAKE PIPE - $4.21
26
  • CLIP, BRAKE HOSE - $0.98
29
  • BOLT, FLANGE (8X16) - $0.70
21
  • BRACKET, R. RR. BRAKE HOSE - $6.54
6
  • PIPE B, BRAKE - $17.17
16
  • CLIP, BRAKE PIPE - $1.77
16
  • CLIP, BRAKE PIPE - $1.77
30
  • BOLT, FLANGE (6X45) - $0.85
26
  • CLIP, BRAKE HOSE - $0.98
5
  • PIPE A, BRAKE - $94.91
16
  • CLIP, BRAKE PIPE - $1.77
24
  • GASKET, OIL BOLT - $2.23
7
  • PIPE H, BRAKE - $6.14
10
  • PIPE D, BRAKE - $60.94
23
  • BOLT, OIL - $3.91
13
  • GROMMET A, BRAKE PIPE - $2.71
3
  • HOSE SET, RR. BRAKE - $20.18
16
  • CLIP, BRAKE PIPE - $1.77
12
  • PIPE E, L. BRAKE - $8.13
26
  • CLIP, BRAKE HOSE - $0.98
15
  • CLIP, BRAKE PIPE - $0.80
22
  • BRACKET, L. RR. BRAKE HOSE - $6.54
24
  • GASKET, OIL BOLT - $2.23
No. Part # Part # / Description Qty Req. List Price Price
1 01464-S5A-J02 01464-S5A-J02 / HOSE SET, R. FR. BRAKE

1 $41.00 $29.03
2 01465-S5A-J02 01465-S5A-J02 / HOSE SET, L. FR. BRAKE

1 $40.82 $28.90
3 01466-S5A-000 01466-S5A-000 / HOSE SET, RR. BRAKE

2 $28.50 $20.18
4 46210-S5A-912 46210-S5A-912 / VALVE ASSY., PROPORTIONING

1 $139.28 $98.61
5 46310-S5A-Q02 46310-S5A-Q02 / PIPE A, BRAKE

1 $134.05 $94.91
6 46320-S5A-A02 46320-S5A-A02 / PIPE B, BRAKE

1 $24.25 $17.17
7 46321-S5A-A02 46321-S5A-A02 / PIPE H, BRAKE

1 $8.67 $6.14
8 46330-S5G-T00 46330-S5G-T00 / PIPE C, BRAKE

1 $33.57 $23.77
9 46331-S5A-N10 46331-S5A-N10 / PIPE E, R. BRAKE

1 $11.48 $8.13
10 46340-S5A-Q20 46340-S5A-Q20 / PIPE D, BRAKE

1 $86.07 $60.94
11 46360-S5A-Q01 46360-S5A-Q01 / PIPE F, BRAKE

1 $24.53 $17.37
12 46361-S5A-N10 46361-S5A-N10 / PIPE E, L. BRAKE

1 $11.48 $8.13
13 46380-SH3-000 46380-SH3-000 / GROMMET A, BRAKE PIPE

2 $3.83 $2.71
14 46391-SR3-003 46391-SR3-003 / CLIP A, BRAKE PIPE

1 $5.95 $4.21
15 46391-SX8-T01 46391-SX8-T01 / CLIP, BRAKE PIPE

1 $1.13 $0.80
16 46391-S5A-J01 46391-S5A-J01 / CLIP, BRAKE PIPE

4 $2.50 $1.77
17 46392-SX8-T01 46392-SX8-T01 / CLIP, BRAKE PIPE

1 $2.58 $1.83
18 46393-S5A-N00 46393-S5A-N00 / CLIP, BRAKE PIPE

1 $7.33 $5.19
19 46435-S5B-900 46435-S5B-900 / BRACKET A, R. RR. BRAKE HOSE

1 $8.45 $5.98
20 46436-S5B-900 46436-S5B-900 / BRACKET A, L. RR. BRAKE HOSE

1 $8.45 $5.98
21 46437-S5B-000 46437-S5B-000 / BRACKET, R. RR. BRAKE HOSE

1 $9.23 $6.54
22 46438-S5B-000 46438-S5B-000 / BRACKET, L. RR. BRAKE HOSE

1 $9.23 $6.54
23 46462-SE0-000 46462-SE0-000 / BOLT, OIL

2 $5.52 $3.91
24 46472-568-000 46472-568-000 / GASKET, OIL BOLT

4 $3.15 $2.23
25 90361-SV4-003 90361-SV4-003 / NUT, PAINT CUTTING (6MM)

1 $1.67 $1.18
26 90651-SV1-A01 90651-SV1-A01 / CLIP, BRAKE HOSE

6 $1.38 $0.98
28 93403-08016-08 93403-08016-08 / BOLT-WASHER (8X16)

4 $1.13 $0.80
29 95701-08016-08 95701-08016-08 / BOLT, FLANGE (8X16)

2 $0.98 $0.70
30 95801-06045-08 95801-06045-08 / BOLT, FLANGE (6X45)

2 $1.20 $0.85
