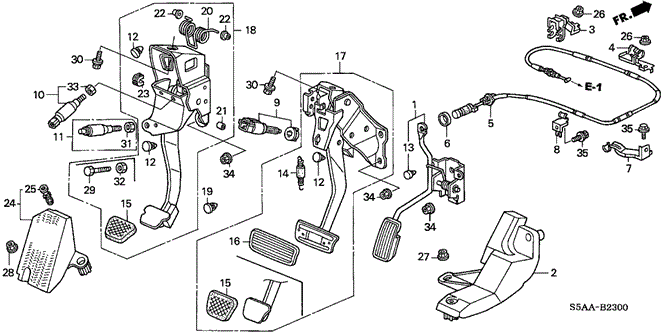

PEDAL ASSY., BRAKE in CHASSIS/PEDAL for 2004 Honda CIVIC SEDAN

PEDAL ASSY., BRAKE in CHASSIS/PEDAL for 2004 Honda CIVIC SEDAN #1
14
  • SPRING ASSY., PEDAL RETURN - $2.50
  • SPRING ASSY., PEDAL RETURN - $3.25
4
  • STAY B, ACTUATOR WIRE - $3.39
12
  • PAD, PEDAL STOPPER - $1.72
  • PAD, PEDAL STOPPER - $2.19
12
  • PAD, PEDAL STOPPER - $1.72
  • PAD, PEDAL STOPPER - $2.19
1
  • PEDAL ASSY., ACCELERATOR - $29.69
  • PEDAL ASSY., ACCELERATOR - $18.82
28
  • NUT, PAINT CUTTING (6MM) - $2.15
  • NUT, PAINT CUTTING (6MM) - $2.15
24
  • BRACKET, FOOTREST - $4.80
34
  • NUT, FLANGE (8MM) - $0.18
6
  • SEAL, THROTTLE CABLE - $3.85
30
  • BOLT-WASHER (8X16) - $0.74
8
  • CLAMP, THROTTLE WIRE - $2.17
2
  • STOPPER, ACCELERATOR STROKE - $5.63
26
  • NUT, CAP (6MM) (BLACK) - $2.55
  • NUT, HEX. CAP (6MM) - $0.92
30
  • BOLT-WASHER (8X16) - $0.74
25
  • CLIP, FOOTREST - $0.90
12
  • PAD, PEDAL STOPPER - $1.72
  • PAD, PEDAL STOPPER - $2.19
35
  • BOLT, FLANGE (6X12) - $0.71
26
  • NUT, CAP (6MM) (BLACK) - $2.55
  • NUT, HEX. CAP (6MM) - $0.92
34
  • NUT, FLANGE (8MM) - $0.18
34
  • NUT, FLANGE (8MM) - $0.18
7
  • CLAMP, THROTTLE WIRE - $1.88
17
  • PEDAL ASSY., BRAKE - $57.83
  • PEDAL ASSY., BRAKE - $73.81
3
  • STAY A, ACTUATOR WIRE - $3.34
27
  • NUT, PAINT CUTTING (6MM) - $2.15
13
  • PAD, PEDAL STOPPER - $3.25
5
  • WIRE, THROTTLE - $13.74
35
  • BOLT, FLANGE (6X12) - $0.71
16
  • COVER, PEDAL - $10.36
  • COVER, PEDAL - $3.07
9
  • SWITCH ASSY., STOP (TOYO) - $12.93
  • SWITCH ASSY., STOP (TOYO) - $12.93
  • SWITCH ASSY., STOP (PANASONIC) - $3.59
No. Part # Part # / Description Qty Req. List Price Price
1 17800-S6M-A03 17800-S6M-A03 / PEDAL ASSY., ACCELERATOR

1 $41.93 $29.69
1 17800-S5F-A02 17800-S5F-A02 / PEDAL ASSY., ACCELERATOR

1 $26.58 $18.82
2 17818-S5A-A01 17818-S5A-A01 / STOPPER, ACCELERATOR STROKE

1 $7.95 $5.63
3 17881-PLM-A00 17881-PLM-A00 / STAY A, ACTUATOR WIRE

1 $4.72 $3.34
4 17882-PLM-A00 17882-PLM-A00 / STAY B, ACTUATOR WIRE

1 $4.78 $3.39
5 17910-S5A-G03 17910-S5A-G03 / WIRE, THROTTLE

1 $19.40 $13.74
6 17921-SA4-730 17921-SA4-730 / SEAL, THROTTLE CABLE

1 $5.43 $3.85
7 17930-S5A-A00 17930-S5A-A00 / CLAMP, THROTTLE WIRE

1 $2.65 $1.88
8 17932-S5A-A00 17932-S5A-A00 / CLAMP, THROTTLE WIRE

1 $3.07 $2.17
9 35350-S5A-J04 35350-S5A-J04 / SWITCH ASSY., STOP (TOYO)

1 $18.27 $12.93
9 35350-S5A-J04 35350-S5A-J04 / SWITCH ASSY., STOP (TOYO)

1 $18.27 $12.93
9 35350-SMA-003 35350-SMA-003 / SWITCH ASSY., STOP (PANASONIC)

1 $5.07 $3.59
12 46505-SA5-000 46505-SA5-000 / PAD, PEDAL STOPPER

1 $2.43 $1.72
12 46505-S5F-A01 46505-S5F-A01 / PAD, PEDAL STOPPER

1 $3.10 $2.19
13 46505-SA7-000 46505-SA7-000 / PAD, PEDAL STOPPER

1 $4.58 $3.25
14 46530-S5A-003 46530-S5A-003 / SPRING ASSY., PEDAL RETURN

1 $3.53 $2.50
14 46530-S5F-A01 46530-S5F-A01 / SPRING ASSY., PEDAL RETURN

1 $4.58 $3.25
16 46545-S84-A81 46545-S84-A81 / COVER, PEDAL

1 $14.63 $10.36
16 46545-S5F-A81 46545-S5F-A81 / COVER, PEDAL

1 $4.33 $3.07
17 46600-S5A-A81 46600-S5A-A81 / PEDAL ASSY., BRAKE

1 $81.68 $57.83
17 46600-S5F-A81 46600-S5F-A81 / PEDAL ASSY., BRAKE

1 $104.25 $73.81
24 46991-S5A-A01 46991-S5A-A01 / BRACKET, FOOTREST

1 $6.78 $4.80
25 46992-SV4-003 46992-SV4-003 / CLIP, FOOTREST

2 $1.27 $0.90
26 90207-PG6-010 90207-PG6-010 / NUT, CAP (6MM) (BLACK)

2 $3.60 $2.55
26 90207-RAA-A10 90207-RAA-A10 / NUT, HEX. CAP (6MM)

2 $1.30 $0.92
28 90301-SV7-000 90301-SV7-000 / NUT, PAINT CUTTING (6MM)

1 $3.03 $2.15
28 90301-S5A-000 90301-S5A-000 / NUT, PAINT CUTTING (6MM)

1 $3.03 $2.15
30 93404-08016-08 93404-08016-08 / BOLT-WASHER (8X16)

1 $1.05 $0.74
34 94050-08080 94050-08080 / NUT, FLANGE (8MM)

6 $0.25 $0.18
35 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

2 $1.00 $0.71
