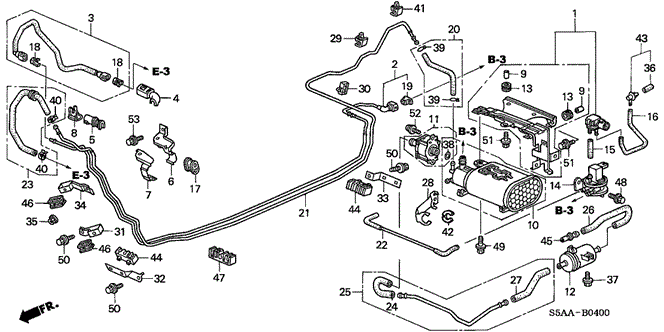

SENSOR ASSY., VENT PRESSURE in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE (1) for 2004 Honda CIVIC SEDAN

SENSOR ASSY., VENT PRESSURE in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE (1) for 2004 Honda CIVIC SEDAN #1
26
  • TUBE, CANISTER FILTER - $17.55
14
  • MODULE, FUEL VENT - $53.91
50
  • BOLT-WASHER (6X16) - $0.72
49
  • BOLT-WASHER (8X20) - $0.80
44
  • CLAMP A, FUEL PIPE - $6.01
18
  • RETAINER (GREEN) (TOKAI) - $1.65
3
  • HOSE, FUEL FEED - $30.77
40
  • CLAMP, TUBE (D10.5) - $1.33
37
  • BOLT, FR. FENDER - $2.35
4
  • CLAMP A, FUEL HOSE (BLACK) - $1.77
51
  • BOLT-WASHER (6X25) - $0.72
23
  • HOSE ASSY., PURGE - $9.90
15
  • TUBE A, PRESSURE SENSOR - $15.05
27
  • TUBE B, CANISTER DRAIN - $3.35
41
  • CLIP, FUEL PIPE - $1.04
20
  • TUBE A, FUEL PURGE - $4.32
30
  • CLIP B, FUEL PIPE - $1.24
34
  • STAY E, FUEL PIPE - $2.84
43
  • JOINT, PRESSURE SENSOR - $7.93
5
  • CLAMP B, FUEL HOSE - $1.44
32
  • STAY C, FUEL PIPE - $2.18
42
  • CLIP, FUEL HOSE - $3.25
8
  • CLAMP C, FUEL HOSE - $1.77
44
  • CLAMP A, FUEL PIPE - $6.01
6
  • STAY, FUEL PIPE - $1.42
47
  • CLAMP B, FUEL PIPE - $8.58
36
  • CAP, SEALING - $2.09
38
  • O-RING - $3.07
25
  • TUBE, CANISTER DRAIN - $16.77
10
  • CANISTER ASSY. - $82.46
51
  • BOLT-WASHER (6X25) - $0.72
39
  • CLIP, TUBE (B10) - $0.97
35
  • NUT, PAINT CUTTING (6MM) - $1.18
29
  • CLIP, FUEL PIPE - $0.77
16
  • TUBE B, PRESSURE SENSOR - $15.05
45
  • JOINT, DRAIN TUBE - $0.77
28
  • STAY, DRAIN TUBE - $2.34
11
  • VALVE, CANISTER VENT SHUT - $36.47
46
  • RUBBER, FUEL PIPE INSULATOR - $2.96
9
  • COLLAR, DISTANCE - $0.54
13
  • RUBBER, CANISTER MOUNTING - $2.22
46
  • RUBBER, FUEL PIPE INSULATOR - $2.96
40
  • CLAMP, TUBE (D10.5) - $1.33
9
  • COLLAR, DISTANCE - $0.54
1
  • SENSOR ASSY., VENT PRESSURE - $138.84
2
  • FEED SET, FUEL - $76.89
12
  • FILTER, CANISTER - $21.02
50
  • BOLT-WASHER (6X16) - $0.72
48
  • BOLT-WASHER (6X20) - $0.72
52
  • SCREW-WASHER (5X10) - $0.57
22
  • TUBE C, FUEL VENT - $7.46
21
  • PIPE, FUEL PURGE - $97.13
7
  • STAY, FUEL HOSE CLAMP - $0.80
31
  • STAY B, FUEL PIPE - $1.65
39
  • CLIP, TUBE (B10) - $0.97
19
  • RETAINER (WHITE) (SANOH) - $1.26
18
  • RETAINER (GREEN) (TOKAI) - $1.65
13
  • RUBBER, CANISTER MOUNTING - $2.22
53
  • BOLT, FLANGE (6X12) - $0.71
17
  • RUBBER, FUEL PIPE INSULATOR - $0.85
33
  • STAY D, FUEL PIPE - $1.65
24
  • TUBE A, CANISTER DRAIN - $2.75
50
  • BOLT-WASHER (6X16) - $0.72
No. Part # Part # / Description Qty Req. List Price Price
1 04101-PLM-A00 04101-PLM-A00 / SENSOR ASSY., VENT PRESSURE

1 $196.10 $138.84
2 16040-S5A-A30 16040-S5A-A30 / FEED SET, FUEL

1 $108.60 $76.89
3 16722-PLC-003 16722-PLC-003 / HOSE, FUEL FEED

1 $43.47 $30.77
4 16725-PLC-003 16725-PLC-003 / CLAMP A, FUEL HOSE (BLACK)

1 $2.50 $1.77
5 16726-PLC-003 16726-PLC-003 / CLAMP B, FUEL HOSE

1 $2.03 $1.44
6 16727-PLR-A00 16727-PLR-A00 / STAY, FUEL PIPE

1 $2.00 $1.42
7 16728-PLC-000 16728-PLC-000 / STAY, FUEL HOSE CLAMP

1 $1.13 $0.80
8 16729-PLC-003 16729-PLC-003 / CLAMP C, FUEL HOSE

1 $2.50 $1.77
9 16923-S84-A00 16923-S84-A00 / COLLAR, DISTANCE

3 $0.77 $0.54
10 17011-S5A-A30 17011-S5A-A30 / CANISTER ASSY.

1 $116.47 $82.46
11 17310-S5A-L31 17310-S5A-L31 / VALVE, CANISTER VENT SHUT

1 $51.52 $36.47
12 17315-S5A-A32 17315-S5A-A32 / FILTER, CANISTER

1 $29.68 $21.02
13 17322-S84-A00 17322-S84-A00 / RUBBER, CANISTER MOUNTING

3 $3.13 $2.22
14 17380-S5A-A32 17380-S5A-A32 / MODULE, FUEL VENT

1 $76.15 $53.91
15 17381-S5A-A30 17381-S5A-A30 / TUBE A, PRESSURE SENSOR

1 $21.25 $15.05
16 17382-S5A-A30 17382-S5A-A30 / TUBE B, PRESSURE SENSOR

1 $21.25 $15.05
17 17701-S5A-930 17701-S5A-930 / RUBBER, FUEL PIPE INSULATOR

1 $1.20 $0.85
18 17711-S0X-A31 17711-S0X-A31 / RETAINER (GREEN) (TOKAI)

2 $2.33 $1.65
19 17711-S84-004 17711-S84-004 / RETAINER (WHITE) (SANOH)

1 $1.78 $1.26
20 17717-S5A-A31 17717-S5A-A31 / TUBE A, FUEL PURGE

1 $6.10 $4.32
21 17720-S5A-A30 17720-S5A-A30 / PIPE, FUEL PURGE

1 $137.18 $97.13
22 17724-S5A-A31 17724-S5A-A31 / TUBE C, FUEL VENT

1 $10.53 $7.46
23 17726-S5A-931 17726-S5A-931 / HOSE ASSY., PURGE

1 $13.98 $9.90
24 17741-S5A-A31 17741-S5A-A31 / TUBE A, CANISTER DRAIN

1 $3.88 $2.75
25 17742-S5A-A32 17742-S5A-A32 / TUBE, CANISTER DRAIN

1 $23.68 $16.77
26 17743-S5A-A30 17743-S5A-A30 / TUBE, CANISTER FILTER

1 $24.78 $17.55
27 17745-S5A-A31 17745-S5A-A31 / TUBE B, CANISTER DRAIN

1 $4.73 $3.35
28 17746-S5A-A30 17746-S5A-A30 / STAY, DRAIN TUBE

1 $3.30 $2.34
29 17758-S5A-931 17758-S5A-931 / CLIP, FUEL PIPE

2 $1.08 $0.77
30 17759-S5A-931 17759-S5A-931 / CLIP B, FUEL PIPE

2 $1.75 $1.24
31 17762-S5A-930 17762-S5A-930 / STAY B, FUEL PIPE

1 $2.33 $1.65
32 17763-S5A-930 17763-S5A-930 / STAY C, FUEL PIPE

1 $3.08 $2.18
33 17764-S5A-930 17764-S5A-930 / STAY D, FUEL PIPE

1 $2.33 $1.65
34 17765-S5A-930 17765-S5A-930 / STAY E, FUEL PIPE

1 $4.02 $2.84
35 90361-SV4-003 90361-SV4-003 / NUT, PAINT CUTTING (6MM)

1 $1.67 $1.18
36 90634-PA0-000 90634-PA0-000 / CAP, SEALING

1 $2.95 $2.09
37 90671-S5A-003 90671-S5A-003 / BOLT, FR. FENDER

1 $3.32 $2.35
38 91391-S84-A00 91391-S84-A00 / O-RING

1 $4.33 $3.07
39 91401-SDC-000 91401-SDC-000 / CLIP, TUBE (B10)

2 $1.37 $0.97
40 91405-SDA-000 91405-SDA-000 / CLAMP, TUBE (D10.5)

2 $1.88 $1.33
41 91592-S5A-931 91592-S5A-931 / CLIP, FUEL PIPE

1 $1.47 $1.04
42 91593-ST7-931 91593-ST7-931 / CLIP, FUEL HOSE

1 $4.58 $3.25
43 91594-S5A-A32 91594-S5A-A32 / JOINT, PRESSURE SENSOR

1 $11.20 $7.93
44 91595-S5A-931 91595-S5A-931 / CLAMP A, FUEL PIPE

2 $8.48 $6.01
45 91596-S5A-931 91596-S5A-931 / JOINT, DRAIN TUBE

1 $1.08 $0.77
46 91598-S5A-930 91598-S5A-930 / RUBBER, FUEL PIPE INSULATOR

2 $4.18 $2.96
47 91599-S5A-931 91599-S5A-931 / CLAMP B, FUEL PIPE

3 $12.12 $8.58
48 93403-06020-08 93403-06020-08 / BOLT-WASHER (6X20)

2 $1.02 $0.72
49 93403-08020-08 93403-08020-08 / BOLT-WASHER (8X20)

1 $1.13 $0.80
50 93405-06016-04 93405-06016-04 / BOLT-WASHER (6X16)

3 $1.02 $0.72
51 93405-06025-08 93405-06025-08 / BOLT-WASHER (6X25)

3 $1.02 $0.72
52 93893-05010-08 93893-05010-08 / SCREW-WASHER (5X10)

3 $0.80 $0.57
53 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

2 $1.00 $0.71
