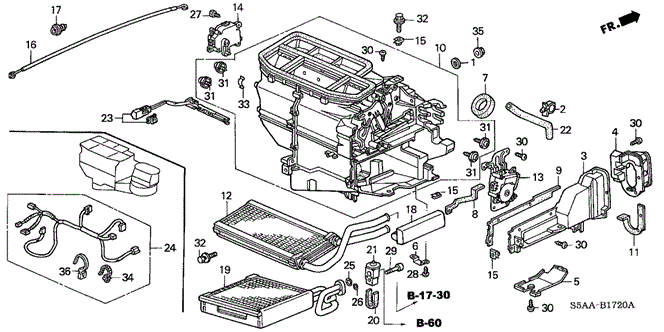

HEATER SUB-ASSY. in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER UNIT for 2004 Honda CIVIC SEDAN

HEATER SUB-ASSY. in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER UNIT for 2004 Honda CIVIC SEDAN #1
30
  • SCREW, TAPPING (4X16) - $1.27
30
  • SCREW, TAPPING (4X16) - $1.27
30
  • SCREW, TAPPING (4X16) - $1.27
24
  • SUB-HARNESS, AIR CONDITIONER - $30.30
10
  • HEATER SUB-ASSY. - $291.54
7
  • SEAL, DRAIN - $3.07
1
  • GASKET, HEATER - $1.36
15
  • NUT, HOLDER - $1.66
16
  • CABLE, WATER VALVE CONTROL - $4.83
12
  • CORE SUB-ASSY., HEATER - $198.06
30
  • SCREW, TAPPING (4X16) - $1.27
31
  • SCREW-WASHER (4X16) - $1.38
15
  • NUT, HOLDER - $1.66
30
  • SCREW, TAPPING (4X16) - $1.27
18
  • PLATE ASSY., HEATER - $32.19
5
  • COVER, FOOT DUCT - $4.44
8
  • SEAL A - $2.76
34
  • CLIP, HARNESS BAND (96.9MM) (NATURAL) - $2.83
31
  • SCREW-WASHER (4X16) - $1.38
32
  • BOLT-WASHER (6X24) - $0.79
31
  • SCREW-WASHER (4X16) - $1.38
31
  • SCREW-WASHER (4X16) - $1.38
33
  • CLAMP, CASE - $3.69
15
  • NUT, HOLDER - $1.66
35
  • NUT-WASHER (8MM) - $0.58
27
  • SCREW, TAPPING (5X12) - $1.38
4
  • COVER, FLANGE - $2.84
28
  • SCREW, TAPPING (4X12) - $1.99
13
  • MOTOR ASSY., MODE - $52.04
17
  • GROMMET, WATER VALVE CABLE - $3.76
9
  • SEAL B - $4.51
11
  • SEAL C - $3.07
36
  • CLIP, BAND (6MM BOSS) (127MM) (NATURAL) - $3.25
3
  • CASE, EXPANSION VALVE COVER - $21.39
14
  • MOTOR ASSY., TEMPERATURE - $60.53
32
  • BOLT-WASHER (6X24) - $0.79
6
  • BRACKET, COVER (LOWER) - $1.50
No. Part # Part # / Description Qty Req. List Price Price
1 39248-692-003 39248-692-003 / GASKET, HEATER

1 $1.92 $1.36
3 79027-S5D-A01 79027-S5D-A01 / CASE, EXPANSION VALVE COVER

1 $30.22 $21.39
4 79028-S5D-A01 79028-S5D-A01 / COVER, FLANGE

1 $4.02 $2.84
5 79029-S5D-A01 79029-S5D-A01 / COVER, FOOT DUCT

1 $6.27 $4.44
6 79101-S5A-000 79101-S5A-000 / BRACKET, COVER (LOWER)

1 $2.12 $1.50
7 79103-S5A-003 79103-S5A-003 / SEAL, DRAIN

1 $4.33 $3.07
8 79104-S5D-A01 79104-S5D-A01 / SEAL A

1 $3.90 $2.76
9 79105-S5D-A01 79105-S5D-A01 / SEAL B

1 $6.37 $4.51
10 79106-S5D-A52 79106-S5D-A52 / HEATER SUB-ASSY.

1 $411.78 $291.54
11 79107-S5D-A01 79107-S5D-A01 / SEAL C

1 $4.33 $3.07
12 79110-S5D-A02 79110-S5D-A02 / CORE SUB-ASSY., HEATER

1 $279.75 $198.06
13 79140-S5D-A11 79140-S5D-A11 / MOTOR ASSY., MODE

1 $73.50 $52.04
14 79160-S5A-A01 79160-S5A-A01 / MOTOR ASSY., TEMPERATURE

1 $85.50 $60.53
15 79191-SZ3-A01 79191-SZ3-A01 / NUT, HOLDER

4 $2.35 $1.66
16 79544-S5D-A00 79544-S5D-A00 / CABLE, WATER VALVE CONTROL

1 $6.82 $4.83
17 79770-SE0-000 79770-SE0-000 / GROMMET, WATER VALVE CABLE

1 $5.32 $3.76
18 80211-S5D-A51 80211-S5D-A51 / PLATE ASSY., HEATER

1 $45.47 $32.19
24 80650-S5A-A11 80650-S5A-A11 / SUB-HARNESS, AIR CONDITIONER

1 $42.80 $30.30
27 90121-SR3-003 90121-SR3-003 / SCREW, TAPPING (5X12)

2 $1.95 $1.38
28 90121-S5A-003 90121-S5A-003 / SCREW, TAPPING (4X12)

2 $2.82 $1.99
30 90127-SX0-003 90127-SX0-003 / SCREW, TAPPING (4X16)

28 $1.80 $1.27
31 90133-SR3-003 90133-SR3-003 / SCREW-WASHER (4X16)

4 $1.95 $1.38
32 90156-SH3-000 90156-SH3-000 / BOLT-WASHER (6X24)

3 $1.12 $0.79
33 90659-692-000 90659-692-000 / CLAMP, CASE

3 $5.22 $3.69
34 91540-S0A-003 91540-S0A-003 / CLIP, HARNESS BAND (96.9MM) (NATURAL)

5 $4.00 $2.83
35 94071-08080 94071-08080 / NUT-WASHER (8MM)

1 $0.82 $0.58
36 91548-SV4-003 91548-SV4-003 / CLIP, BAND (6MM BOSS) (127MM) (NATURAL)

3 $4.58 $3.25
