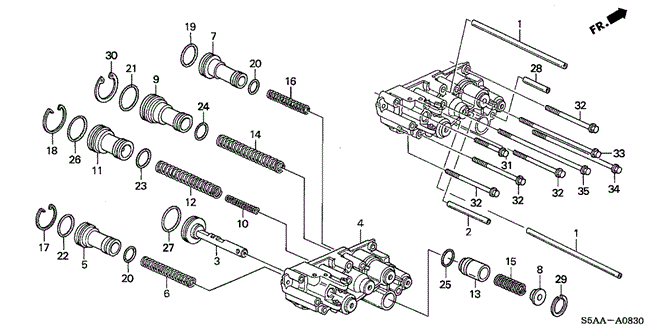

BODY, SERVO in TRANSMISSION - AUTOMATIC/AT SERVO BODY for 2004 Honda CIVIC SEDAN

BODY, SERVO in TRANSMISSION - AUTOMATIC/AT SERVO BODY for 2004 Honda CIVIC SEDAN #1
12
  • SPRING A, TOP ACCUMULATOR - $4.76
9
  • PISTON, THIRD ACCUMULATOR - $12.93
23
  • O-RING (21.2X2.4) (ARAI) - $1.58
27
  • O-RING (31X2.7) (ARAI) - $1.91
34
  • BOLT, FLANGE (6X130) - $0.63
14
  • SPRING, THIRD ACCUMULATOR - $3.25
20
  • O-RING (18.3X2.4) (NOK) - $1.48
29
  • CIRCLIP (INNER) (26MM) - $0.76
25
  • O-RING (20.2X2.4) (NOK) - $1.68
18
  • CIRCLIP (INNER) (36MM) - $1.78
13
  • PISTON, THIRD SUB-ACCUMULATOR - $15.79
3
  • SHAFT, SHIFT FORK - $37.09
15
  • SPRING, THIRD SUB-ACCUMULATOR - $3.02
16
  • SPRING A, SECOND ACCUMULATOR - $2.64
32
  • BOLT, FLANGE (6X85) - $1.11
35
  • BOLT, FLANGE (6X140) - $1.55
19
  • O-RING (26.9X2.4) (NOK) - $1.49
32
  • BOLT, FLANGE (6X85) - $1.11
7
  • PISTON, SECOND ACCUMULATOR - $11.38
32
  • BOLT, FLANGE (6X85) - $1.11
11
  • PISTON, TOP ACCUMULATOR - $8.30
20
  • O-RING (18.3X2.4) (NOK) - $1.48
21
  • O-RING (28.3X2.4) (NOK) - $1.68
1
  • PIPE, THIRD CLUTCH - $8.28
33
  • BOLT, FLANGE (6X120) - $1.55
26
  • O-RING (29X2.4) (NOK) - $1.81
30
  • CIRCLIP (INNER) (35MM) - $0.71
17
  • CIRCLIP (INNER) (31MM) - $1.78
5
  • PISTON, LOW ACCUMULATOR - $8.30
2
  • PIPE (8X62) - $2.60
31
  • BOLT, FLANGE (6X45) - $0.85
28
  • PIN, DOWEL (8X40) - $2.75
22
  • O-RING (24.4X2.4) (NOK) - $1.68
32
  • BOLT, FLANGE (6X85) - $1.11
8
  • COVER, THIRD SUB-ACCUMULATOR - $3.32
24
  • O-RING (20.2X2.4) (NOK) - $1.68
6
  • SPRING, LOW ACCUMULATOR - $5.23
1
  • PIPE, THIRD CLUTCH - $8.28
10
  • SPRING B, TOP ACCUMULATOR - $2.15
4
  • BODY, SERVO - $112.44
No. Part # Part # / Description Qty Req. List Price Price
1 22743-PF0-000 22743-PF0-000 / PIPE, THIRD CLUTCH

2 $11.70 $8.28
2 22748-PW4-000 22748-PW4-000 / PIPE (8X62)

1 $3.67 $2.60
3 24271-PX4-000 24271-PX4-000 / SHAFT, SHIFT FORK

1 $52.38 $37.09
4 27410-PGA-000 27410-PGA-000 / BODY, SERVO

1 $158.82 $112.44
5 27561-P4R-000 27561-P4R-000 / PISTON, LOW ACCUMULATOR

1 $11.72 $8.30
6 27562-P4R-000 27562-P4R-000 / SPRING, LOW ACCUMULATOR

1 $7.38 $5.23
7 27570-PLX-000 27570-PLX-000 / PISTON, SECOND ACCUMULATOR

1 $16.07 $11.38
8 27571-PDM-000 27571-PDM-000 / COVER, THIRD SUB-ACCUMULATOR

1 $4.68 $3.32
9 27574-PDM-000 27574-PDM-000 / PISTON, THIRD ACCUMULATOR

1 $18.27 $12.93
10 27575-P4R-000 27575-P4R-000 / SPRING B, TOP ACCUMULATOR

1 $3.03 $2.15
11 27576-P4R-000 27576-P4R-000 / PISTON, TOP ACCUMULATOR

1 $11.72 $8.30
12 27577-PDM-000 27577-PDM-000 / SPRING A, TOP ACCUMULATOR

1 $6.72 $4.76
13 27578-PDM-000 27578-PDM-000 / PISTON, THIRD SUB-ACCUMULATOR

1 $22.30 $15.79
14 27583-PLX-000 27583-PLX-000 / SPRING, THIRD ACCUMULATOR

1 $4.58 $3.25
15 27586-PDM-000 27586-PDM-000 / SPRING, THIRD SUB-ACCUMULATOR

1 $4.27 $3.02
16 27588-PLX-000 27588-PLX-000 / SPRING A, SECOND ACCUMULATOR

1 $3.73 $2.64
17 90604-PX4-000 90604-PX4-000 / CIRCLIP (INNER) (31MM)

1 $2.52 $1.78
18 90606-PX4-000 90606-PX4-000 / CIRCLIP (INNER) (36MM)

1 $2.52 $1.78
19 91302-PF0-003 91302-PF0-003 / O-RING (26.9X2.4) (NOK)

1 $2.10 $1.49
20 91321-PF4-004 91321-PF4-004 / O-RING (18.3X2.4) (NOK)

2 $2.08 $1.48
21 91324-PF4-004 91324-PF4-004 / O-RING (28.3X2.4) (NOK)

1 $2.37 $1.68
22 91326-PF4-004 91326-PF4-004 / O-RING (24.4X2.4) (NOK)

1 $2.37 $1.68
23 91331-PC9-003 91331-PC9-003 / O-RING (21.2X2.4) (ARAI)

1 $2.23 $1.58
25 91331-PL5-J00 91331-PL5-J00 / O-RING (20.2X2.4) (NOK)

1 $2.37 $1.68
26 91344-PC9-004 91344-PC9-004 / O-RING (29X2.4) (NOK)

1 $2.55 $1.81
27 91344-580-000 91344-580-000 / O-RING (31X2.7) (ARAI)

1 $2.70 $1.91
28 91704-PF4-000 91704-PF4-000 / PIN, DOWEL (8X40)

1 $3.88 $2.75
29 94520-26000 94520-26000 / CIRCLIP (INNER) (26MM)

1 $1.07 $0.76
30 94520-35100 94520-35100 / CIRCLIP (INNER) (35MM)

1 $1.00 $0.71
31 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

1 $1.20 $0.85
32 95701-06085-08 95701-06085-08 / BOLT, FLANGE (6X85)

4 $1.57 $1.11
33 95701-06120-08 95701-06120-08 / BOLT, FLANGE (6X120)

1 $2.18 $1.55
34 95701-06130-08 95701-06130-08 / BOLT, FLANGE (6X130)

1 $0.88 $0.63
35 95701-06140-08 95701-06140-08 / BOLT, FLANGE (6X140)

1 $2.18 $1.55
