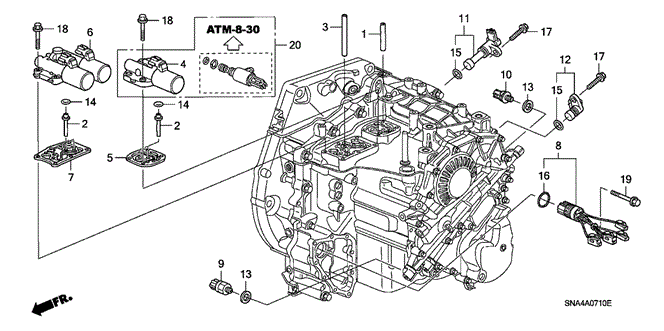

SOLENOID SET, LOCK-UP in TRANSMISSION - AUTOMATIC/SOLENOID for 2006 Honda CIVIC SEDAN

SOLENOID SET, LOCK-UP in TRANSMISSION - AUTOMATIC/SOLENOID for 2006 Honda CIVIC SEDAN #1
9
  • SWITCH ASSY., AT OIL PRESSURE (TEXAS INSTRUMENTS) - $33.69
2
  • PIPE, JOINT - $7.10
17
  • BOLT, FLANGE (6X18) - $0.63
18
  • BOLT, FLANGE (6X25) - $0.70
15
  • O-RING (16X2.1) (NOK) - $1.43
7
  • GASKET B, LINEAR SOLENOID - $2.54
3
  • PIPE (50MM) - $1.86
14
  • O-RING (7.7X2.3) (ARAI) - $1.18
18
  • BOLT, FLANGE (6X25) - $0.70
17
  • BOLT, FLANGE (6X18) - $0.63
11
  • PICK-UP ASSY. - $14.09
  • PICK-UP ASSY. - $14.09
13
  • GASKET (10MM) - $1.97
13
  • GASKET (10MM) - $1.97
4
  • SOLENOID ASSY. A, LINEAR - $162.66
16
  • O-RING (23.3X2.4) - $1.60
2
  • PIPE, JOINT - $7.10
19
  • BOLT, FLANGE (6X35) - $0.73
10
  • SWITCH ASSY., AT OIL PRESSURE (SAGINOMIYA) - $33.69
6
  • SOLENOID ASSY. B, LINEAR - $186.76
5
  • GASKET A, LINEAR SOLENOID - $2.86
20
  • SOLENOID SET, LOCK-UP - $227.01
12
  • PICK-UP ASSY. - $13.33
  • PICK-UP ASSY. - $13.33
8
  • WIRE HARNESS, SOLENOID - $48.53
15
  • O-RING (16X2.1) (NOK) - $1.43
1
  • PIPE (35MM) - $2.04
14
  • O-RING (7.7X2.3) (ARAI) - $1.18
No. Part # Part # / Description Qty Req. List Price Price
1 22749-PW4-000 22749-PW4-000 / PIPE (35MM)

1 $2.88 $2.04
2 22760-PPW-000 22760-PPW-000 / PIPE, JOINT

6 $10.03 $7.10
3 22775-RPC-000 22775-RPC-000 / PIPE (50MM)

1 $2.63 $1.86
4 28250-RPC-003 28250-RPC-003 / SOLENOID ASSY. A, LINEAR

1 $229.75 $162.66
5 28252-RPC-000 28252-RPC-000 / GASKET A, LINEAR SOLENOID

1 $4.03 $2.86
6 28260-RPC-004 28260-RPC-004 / SOLENOID ASSY. B, LINEAR

1 $263.78 $186.76
7 28262-RPC-000 28262-RPC-000 / GASKET B, LINEAR SOLENOID

1 $3.58 $2.54
8 28360-RPC-003 28360-RPC-003 / WIRE HARNESS, SOLENOID

1 $68.55 $48.53
9 28600-RPC-003 28600-RPC-003 / SWITCH ASSY., AT OIL PRESSURE (TEXAS INSTRUMENTS)

1 $47.58 $33.69
10 28600-RPC-004 28600-RPC-004 / SWITCH ASSY., AT OIL PRESSURE (SAGINOMIYA)

1 $47.58 $33.69
11 28810-RPC-013 28810-RPC-013 / PICK-UP ASSY.

1 $19.90 $14.09
11 28810-RPC-013 28810-RPC-013 / PICK-UP ASSY.

1 $19.90 $14.09
12 28820-RPC-013 28820-RPC-013 / PICK-UP ASSY.

1 $18.83 $13.33
12 28820-RPC-013 28820-RPC-013 / PICK-UP ASSY.

1 $18.83 $13.33
13 90471-PW7-A00 90471-PW7-A00 / GASKET (10MM)

2 $2.78 $1.97
14 91301-PC9-003 91301-PC9-003 / O-RING (7.7X2.3) (ARAI)

6 $1.67 $1.18
15 91309-PX4-003 91309-PX4-003 / O-RING (16X2.1) (NOK)

2 $2.02 $1.43
16 91329-PRP-003 91329-PRP-003 / O-RING (23.3X2.4)

1 $2.27 $1.60
17 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

2 $0.88 $0.63
18 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

10 $0.98 $0.70
19 95701-06035-08 95701-06035-08 / BOLT, FLANGE (6X35)

1 $1.03 $0.73
20 28020-RPC-305 28020-RPC-305 / SOLENOID SET, LOCK-UP

0 $320.63 $227.01
