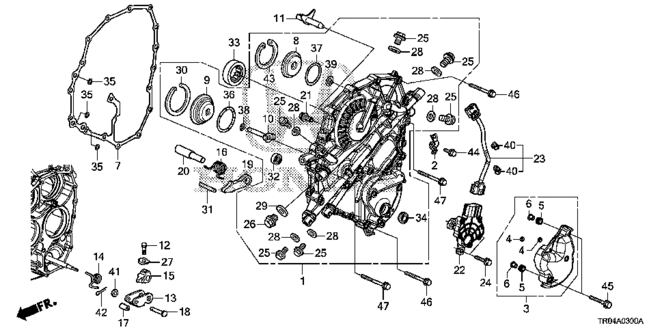

COVER ASSY., L. SIDE in TRANSMISSION - AUTOMATIC/AT LEFT SIDE COVER for 2012 Honda CIVIC SEDAN

COVER ASSY., L. SIDE in TRANSMISSION - AUTOMATIC/AT LEFT SIDE COVER for 2012 Honda CIVIC SEDAN #1
43
  • CIRCLIP, INNER (38MM) - $1.01
28
  • GASKET (8MM) - $1.18
21
  • BOLT, AIR CHECK - $10.86
18
  • PIN, ROLLER (6MM) - $3.45
16
  • SPRING, PARKING PAWL - $2.11
3
  • COVER, POSITION SENSOR - $15.68
39
  • O-RING (11X1.9) (NOK) - $1.25
37
  • O-RING (34X1.9) (ARAI) - $1.92
33
  • BEARING, NEEDLE (30X52X19) - $21.20
25
  • BOLT, SEALING (8MM) - $2.22
27
  • WASHER, LOCK (6MM) - $1.85
34
  • OIL SEAL (9X18X7) (ARAI) - $3.15
45
  • BOLT, FLANGE (6X25) - $0.70
6
  • COLLAR, POSITION SENSOR COVER - $1.75
44
  • BOLT, FLANGE (6X12) - $0.71
1
  • COVER ASSY., L. SIDE - $150.25
23
  • HARNESS, POSITION SENSOR - $37.76
24
  • BOLT, FLANGE (6X18) - $1.77
28
  • GASKET (8MM) - $1.18
28
  • GASKET (8MM) - $1.18
35
  • O-RING (7.7X2.3) (ARAI) - $1.18
46
  • BOLT, FLANGE (6X35) - $0.73
4
  • STOPPER, POSITION SENSOR - $1.69
22
  • SENSOR ASSY., POSITION - $53.52
38
  • O-RING (7.7X1.9) (NOK) - $1.39
10
  • PIPE B, FEED - $4.26
28
  • GASKET (8MM) - $1.18
9
  • GUIDE A, FEED PIPE - $2.67
5
  • RUBBER, POSITION SENSOR COVER - $3.37
32
  • BEARING, BALL (9X20X6) - $11.30
4
  • STOPPER, POSITION SENSOR - $1.69
19
  • PAWL, PARKING BRAKE - $13.38
5
  • RUBBER, POSITION SENSOR COVER - $3.37
25
  • BOLT, SEALING (8MM) - $2.22
14
  • SPRING, PARKING BRAKE - $1.96
6
  • COLLAR, POSITION SENSOR COVER - $1.75
25
  • BOLT, SEALING (8MM) - $2.22
47
  • BOLT, FLANGE (6X45) - $0.85
29
  • GASKET (10MM) - $1.97
41
  • WASHER, PLAIN (6MM) - $0.25
11
  • PIPE, LUBRICATION - $11.67
25
  • BOLT, SEALING (8MM) - $2.22
13
  • LEVER, PARKING BRAKE - $12.26
28
  • GASKET (8MM) - $1.18
28
  • GASKET (8MM) - $1.18
20
  • SHAFT, PARKING - $6.77
8
  • GUIDE A, FEED PIPE - $3.47
40
  • CLIP A, HARNESS BAND (129.4MM)(DARK VIOLET) - $2.32
40
  • CLIP A, HARNESS BAND (129.4MM)(DARK VIOLET) - $2.32
25
  • BOLT, SEALING (8MM) - $2.22
15
  • STOPPER, PARKING BRAKE (1) - $10.04
  • STOPPER, PARKING BRAKE (2) - $10.04
  • STOPPER, PARKING BRAKE (3) - $10.04
7
  • GASKET, L. SIDE COVER - $5.68
26
  • BOLT, SEALING (10MM) - $1.77
47
  • BOLT, FLANGE (6X45) - $0.85
12
  • BOLT, SHAFT FORK SETTING - $2.01
31
  • PIN, DOWEL (8X44) - $2.16
35
  • O-RING (7.7X2.3) (ARAI) - $1.18
42
  • PIN, SPLIT (1.6X12) - $0.33
2
  • STAY C, HARNESS - $1.82
36
  • O-RING (39X1.9) - $1.78
30
  • CIRCLIP B, INNER (47MM) - $1.78
35
  • O-RING (7.7X2.3) (ARAI) - $1.18
46
  • BOLT, FLANGE (6X35) - $0.73
17
  • ROLLER, PARKING BRAKE - $4.45
25
  • BOLT, SEALING (8MM) - $2.22
No. Part # Part # / Description Qty Req. List Price Price
1 21230-RZ2-000 21230-RZ2-000 / COVER ASSY., L. SIDE

1 $212.22 $150.25
2 21515-RPC-000 21515-RPC-000 / STAY C, HARNESS

1 $2.57 $1.82
3 21720-RPC-000 21720-RPC-000 / COVER, POSITION SENSOR

1 $22.15 $15.68
4 21722-RPC-000 21722-RPC-000 / STOPPER, POSITION SENSOR

2 $2.38 $1.69
5 21724-RCT-000 21724-RCT-000 / RUBBER, POSITION SENSOR COVER

2 $4.77 $3.37
6 21725-RCT-000 21725-RCT-000 / COLLAR, POSITION SENSOR COVER

2 $2.47 $1.75
7 21812-RPC-000 21812-RPC-000 / GASKET, L. SIDE COVER

1 $8.02 $5.68
8 22713-PW4-000 22713-PW4-000 / GUIDE A, FEED PIPE

1 $4.90 $3.47
9 22713-RPC-000 22713-RPC-000 / GUIDE A, FEED PIPE

1 $3.77 $2.67
10 22715-PRP-000 22715-PRP-000 / PIPE B, FEED

1 $6.02 $4.26
11 22754-RZ2-000 22754-RZ2-000 / PIPE, LUBRICATION

1 $16.48 $11.67
12 24282-634-000 24282-634-000 / BOLT, SHAFT FORK SETTING

1 $2.83 $2.01
13 24532-PX4-000 24532-PX4-000 / LEVER, PARKING BRAKE

1 $17.32 $12.26
14 24535-RPC-000 24535-RPC-000 / SPRING, PARKING BRAKE

1 $2.77 $1.96
15 24537-PA9-003 24537-PA9-003 / STOPPER, PARKING BRAKE (1)

1 $14.18 $10.04
15 24538-PA9-003 24538-PA9-003 / STOPPER, PARKING BRAKE (2)

1 $14.18 $10.04
15 24539-PA9-003 24539-PA9-003 / STOPPER, PARKING BRAKE (3)

1 $14.18 $10.04
16 24552-PRP-000 24552-PRP-000 / SPRING, PARKING PAWL

1 $2.98 $2.11
17 24553-PN6-000 24553-PN6-000 / ROLLER, PARKING BRAKE

1 $6.28 $4.45
18 24555-RDK-000 24555-RDK-000 / PIN, ROLLER (6MM)

1 $4.87 $3.45
19 24561-RPC-000 24561-RPC-000 / PAWL, PARKING BRAKE

1 $18.90 $13.38
20 24562-PRP-000 24562-PRP-000 / SHAFT, PARKING

1 $9.57 $6.77
21 27430-RPC-003 27430-RPC-003 / BOLT, AIR CHECK

3 $15.33 $10.86
22 28900-RPC-013 28900-RPC-013 / SENSOR ASSY., POSITION

1 $75.60 $53.52
23 28950-RPC-000 28950-RPC-000 / HARNESS, POSITION SENSOR

1 $53.33 $37.76
24 90001-RLJ-000 90001-RLJ-000 / BOLT, FLANGE (6X18)

2 $2.50 $1.77
25 90024-612-000 90024-612-000 / BOLT, SEALING (8MM)

6 $3.13 $2.22
26 90024-RPC-000 90024-RPC-000 / BOLT, SEALING (10MM)

1 $2.50 $1.77
27 90433-639-000 90433-639-000 / WASHER, LOCK (6MM)

1 $2.62 $1.85
28 90471-580-000 90471-580-000 / GASKET (8MM)

6 $1.67 $1.18
29 90471-PW7-A00 90471-PW7-A00 / GASKET (10MM)

1 $2.78 $1.97
30 90602-PX4-000 90602-PX4-000 / CIRCLIP B, INNER (47MM)

1 $2.52 $1.78
31 90702-PL4-000 90702-PL4-000 / PIN, DOWEL (8X44)

1 $3.05 $2.16
32 91006-P1B-003 91006-P1B-003 / BEARING, BALL (9X20X6)

1 $15.97 $11.30
33 91102-RZ2-003 91102-RZ2-003 / BEARING, NEEDLE (30X52X19)

1 $29.95 $21.20
34 91201-PA9-004 91201-PA9-004 / OIL SEAL (9X18X7) (ARAI)

1 $4.45 $3.15
35 91301-PC9-003 91301-PC9-003 / O-RING (7.7X2.3) (ARAI)

3 $1.67 $1.18
36 91304-RPC-003 91304-RPC-003 / O-RING (39X1.9)

1 $2.52 $1.78
37 91305-PC9-003 91305-PC9-003 / O-RING (34X1.9) (ARAI)

1 $2.72 $1.92
38 91311-PA9-004 91311-PA9-004 / O-RING (7.7X1.9) (NOK)

1 $1.97 $1.39
39 91314-PW4-003 91314-PW4-003 / O-RING (11X1.9) (NOK)

1 $1.77 $1.25
40 91506-RTA-003 91506-RTA-003 / CLIP A, HARNESS BAND (129.4MM)(DARK VIOLET)

2 $3.28 $2.32
41 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

1 $0.35 $0.25
42 94201-16120 94201-16120 / PIN, SPLIT (1.6X12)

1 $0.47 $0.33
43 94520-38000 94520-38000 / CIRCLIP, INNER (38MM)

1 $1.43 $1.01
44 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.71
45 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

2 $0.98 $0.70
46 95701-06035-08 95701-06035-08 / BOLT, FLANGE (6X35)

13 $1.03 $0.73
47 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

4 $1.20 $0.85
