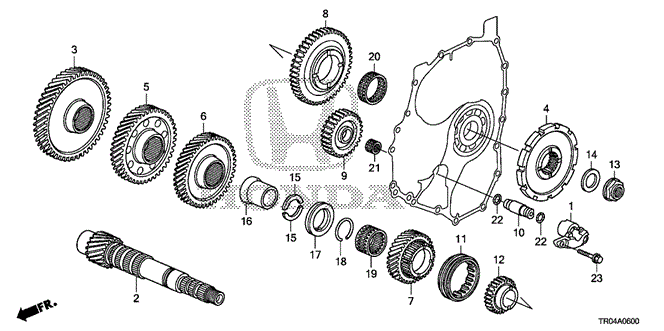

COUNTERSHAFT in TRANSMISSION - AUTOMATIC/AT COUNTERSHAFT for 2012 Honda CIVIC SEDAN

COUNTERSHAFT in TRANSMISSION - AUTOMATIC/AT COUNTERSHAFT for 2012 Honda CIVIC SEDAN #1
15
  • COTTER (29MM) - $1.42
19
  • BEARING, NEEDLE (33X39X26.5) - $7.68
15
  • COTTER (29MM) - $1.42
3
  • GEAR, COUNTERSHAFT LOW - $63.35
22
  • O-RING (8.1X4) (NOK) - $4.05
16
  • COLLAR (33.2X40X51.8) - $8.90
17
  • COLLAR (33X45X7.8) - $7.22
5
  • GEAR, COUNTERSHAFT SECOND - $49.45
6
  • GEAR, COUNTERSHAFT THIRD - $52.97
20
  • BEARING, NEEDLE (36X42X17) - $7.99
9
  • GEAR, REVERSE IDLE - $30.61
1
  • HOLDER, IDLE SHAFT - $22.34
22
  • O-RING (8.1X4) (NOK) - $4.05
12
  • HUB, SELECTOR - $30.17
7
  • GEAR, COUNTERSHAFT FIFTH - $51.53
8
  • GEAR, COUNTERSHAFT REVERSE - $42.42
18
  • RING, SNAP (33MM) - $0.94
23
  • BOLT, FLANGE (8X25) - $0.31
21
  • BEARING, NEEDLE (15X20X16) - $4.00
11
  • SELECTOR, REVERSE GEAR - $30.61
14
  • WASHER, SPRING (24MM) - $7.87
10
  • SHAFT, REVERSE IDLE GEAR - $11.82
2
  • COUNTERSHAFT - $237.25
13
  • NUT, FLANGE (24MM) (LEFT HAND THREAD) - $3.22
4
  • GEAR, PARKING - $60.95
No. Part # Part # / Description Qty Req. List Price Price
1 21215-RG5-000 21215-RG5-000 / HOLDER, IDLE SHAFT

1 $31.55 $22.34
2 23221-RZ2-000 23221-RZ2-000 / COUNTERSHAFT

1 $335.10 $237.25
3 23421-RPC-010 23421-RPC-010 / GEAR, COUNTERSHAFT LOW

1 $89.48 $63.35
4 23427-RZ2-000 23427-RZ2-000 / GEAR, PARKING

1 $86.08 $60.95
5 23441-RPC-000 23441-RPC-000 / GEAR, COUNTERSHAFT SECOND

1 $69.85 $49.45
6 23451-RPC-000 23451-RPC-000 / GEAR, COUNTERSHAFT THIRD

1 $74.82 $52.97
7 23491-RZ2-000 23491-RZ2-000 / GEAR, COUNTERSHAFT FIFTH

1 $72.78 $51.53
8 23531-RPC-000 23531-RPC-000 / GEAR, COUNTERSHAFT REVERSE

1 $59.92 $42.42
9 23541-RPC-000 23541-RPC-000 / GEAR, REVERSE IDLE

1 $43.23 $30.61
10 23542-P6H-000 23542-P6H-000 / SHAFT, REVERSE IDLE GEAR

1 $16.70 $11.82
11 23565-RPC-000 23565-RPC-000 / SELECTOR, REVERSE GEAR

1 $43.23 $30.61
12 23566-RPC-000 23566-RPC-000 / HUB, SELECTOR

1 $42.62 $30.17
13 90201-PRP-000 90201-PRP-000 / NUT, FLANGE (24MM) (LEFT HAND THREAD)

1 $4.55 $3.22
14 90402-P0Z-000 90402-P0Z-000 / WASHER, SPRING (24MM)

1 $11.12 $7.87
15 90431-RPC-000 90431-RPC-000 / COTTER (29MM)

2 $2.00 $1.42
16 90441-RZ2-000 90441-RZ2-000 / COLLAR (33.2X40X51.8)

1 $12.57 $8.90
17 90445-RPC-000 90445-RPC-000 / COLLAR (33X45X7.8)

1 $10.20 $7.22
18 90616-RPC-000 90616-RPC-000 / RING, SNAP (33MM)

1 $1.33 $0.94
19 91015-RPC-003 91015-RPC-003 / BEARING, NEEDLE (33X39X26.5)

1 $10.85 $7.68
20 91017-RPC-004 91017-RPC-004 / BEARING, NEEDLE (36X42X17)

1 $11.28 $7.99
21 91018-RPC-003 91018-RPC-003 / BEARING, NEEDLE (15X20X16)

1 $5.65 $4.00
22 91306-P0X-003 91306-P0X-003 / O-RING (8.1X4) (NOK)

2 $5.72 $4.05
23 95701-08025-08 95701-08025-08 / BOLT, FLANGE (8X25)

2 $0.43 $0.31
