TRANSMISSION - AUTOMATIC/CVT VALVE BODY for 2011 Honda CR-Z

Select CVT VALVE BODY Part

2011 Honda CR-Z

Change vehicle

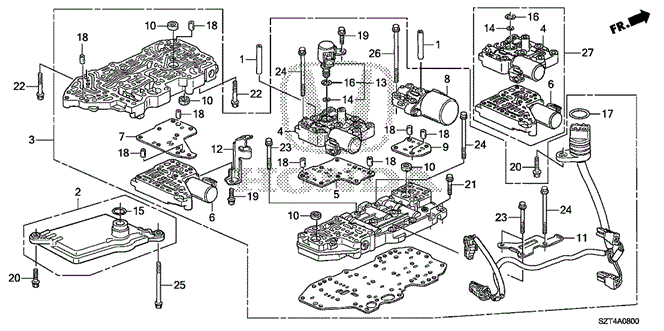

TRANSMISSION - AUTOMATIC/CVT VALVE BODY for 2011 Honda CR-Z #1
No. Part # Part # / Description List Price Price
1 22743-PW4-000 22743-PW4-000 / PIPE (8X40)

$3.00 $2.12
2 25420-RBL-003 25420-RBL-003 / STRAINER ASSY. (ATF)

$67.88 $48.06
3 27000-RBL-000 27000-RBL-000 / BODY ASSY., MAIN VALVE

$1,275.63 $903.15
4 27200-RBL-003 27200-RBL-003 / BODY ASSY., DRIVEN CONTROL VALVE

$221.32 $156.69
5 27212-RBL-000 27212-RBL-000 / PLATE, DRIVEN CONTROL SEPARATING

$10.25 $7.26
6 27500-RBL-003 27500-RBL-003 / BODY ASSY., DRIVE PULLEY CONTROL VALVE

$207.82 $147.13
7 27512-PZC-000 27512-PZC-000 / PLATE, DRIVE PULLEY CONTROL SEPARATING

$10.15 $7.19
8 27600-RBL-003 27600-RBL-003 / BODY ASSY., START CLUTCH CONTROL VALVE

$173.17 $122.60
9 27612-RBL-000 27612-RBL-000 / PLATE, START CLUTCH CONTROL SEPARATING

$6.17 $4.37
10 27750-P4V-000 27750-P4V-000 / FILTER, SECONDARY BODY

$6.68 $4.73
11 28365-PHT-000 28365-PHT-000 / CLAMP A, SOLENOID HARNESS

$4.03 $2.86
12 28366-PLY-000 28366-PLY-000 / CLAMP B, SOLENOID HARNESS

$3.93 $2.78
13 28400-PZC-003 28400-PZC-003 / SOLENOID ASSY.

$104.73 $74.15
14 91301-P6H-003 91301-P6H-003 / O-RING (7.6X1.9) (KEIHIN)

$2.05 $1.45
15 91301-P7X-003 91301-P7X-003 / O-RING (19.20X1.90) (NOK)

$2.12 $1.50
16 91303-P6H-003 91303-P6H-003 / O-RING (11.7X1.9) (KEIHIN)

$2.05 $1.45
17 91329-P4V-003 91329-P4V-003 / O-RING (27.5X2.4)

$2.88 $2.04
18 94301-08140 94301-08140 / PIN, DOWEL (8X14)

$1.17 $0.83
19 95701-06014-08 95701-06014-08 / BOLT, FLANGE (6X14)

$0.88 $0.63
20 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

$0.22 $0.15
21 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

$0.98 $0.70
22 95701-06035-07 95701-06035-07 / BOLT, FLANGE (6X35)

$1.03 $0.73
23 95701-06040-08 95701-06040-08 / BOLT, FLANGE (6X40)

$1.03 $0.73
24 95701-06065-08 95701-06065-08 / BOLT, FLANGE (6X65)

$1.30 $0.92
25 95701-06075-07 95701-06075-07 / BOLT, FLANGE (6X75)

$1.92 $1.36
26 95701-06090-08 95701-06090-08 / BOLT, FLANGE (6X90)

$1.62 $1.14
27 27010-RBL-000 27010-RBL-000 / BODY SET, CONTROL VALVE

$405.20 $286.88
