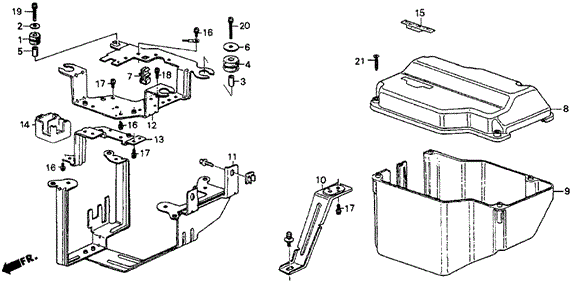

COVER (UPPER) in ELECTRICAL / EXHAUST / HEATER / FUEL/NO. 2 COVER (HF) for 1985 Honda CRX

COVER (UPPER) in ELECTRICAL / EXHAUST / HEATER / FUEL/NO. 2 COVER (HF) for 1985 Honda CRX #1
16
  • SCREW-WASHER (4X8) - $0.48
9
  • COVER (LOWER)
15
  • LABEL, CONTROL BOX (NO.2)
  • LABEL, CONTROL BOX (NO.2)
  • LABEL, CONTROL BOX (NO.2)
8
  • COVER (UPPER)
10
  • STAY (LOWER) - $6.05
1
  • RUBBER, MOUNTING - $2.58
16
  • SCREW-WASHER (4X8) - $0.48
4
  • RUBBER, MOUNTING
  • RUBBER B, MOUNTING
19
  • SCREW-WASHER (5X20) - $0.47
2
  • WASHER (15MM) - $2.80
17
  • SCREW-WASHER (5X8) - $0.45
21
  • SCREW, TAPPING (4X25)
11
  • STAY, CONTROL BOX
17
  • SCREW-WASHER (5X8) - $0.45
14
  • CASE, DIODE
17
  • SCREW-WASHER (5X8) - $0.45
20
  • SCREW-WASHER (6X25) - $0.63
3
  • COLLAR, CONTROL VALVE - $2.43
13
  • STAY, SOLENOID VALVE - $5.02
7
  • CLAMP B, WIRE HARNESS
5
  • COLLAR, DISTANCE
6
  • WASHER, MOUNTING - $1.78
16
  • SCREW-WASHER (4X8) - $0.48
12
  • BASE, CONTROL BOX
18
  • SCREW-WASHER (5X10) - $0.48
No. Part # Part # / Description Qty Req. List Price Price
1 36028-PE2-004 36028-PE2-004 / RUBBER, MOUNTING

1 $3.65 $2.58
2 36037-PE2-004 36037-PE2-004 / WASHER (15MM)

1 $3.95 $2.80
3 36052-657-300 36052-657-300 / COLLAR, CONTROL VALVE

3 $3.43 $2.43
4 36175-PH4-661 36175-PH4-661 / RUBBER, MOUNTING

3 - -
4 36175-PH4-661 36175-PH4-661 / RUBBER B, MOUNTING

3 - -
5 36054-PA6-004 36054-PA6-004 / COLLAR, DISTANCE

1 - -
6 36055-PE0-004 36055-PE0-004 / WASHER, MOUNTING

3 $2.51 $1.78
7 36059-PD1-004 36059-PD1-004 / CLAMP B, WIRE HARNESS

2 - -
8 36201-PE1-701 36201-PE1-701 / COVER (UPPER)

1 - -
9 36202-PE1-701 36202-PE1-701 / COVER (LOWER)

1 - -
10 36203-PE1-701 36203-PE1-701 / STAY (LOWER)

1 $8.55 $6.05
11 36207-PE1-701 36207-PE1-701 / STAY, CONTROL BOX

1 - -
12 36211-PE1-701 36211-PE1-701 / BASE, CONTROL BOX

1 - -
13 36212-PE1-701 36212-PE1-701 / STAY, SOLENOID VALVE

1 $7.08 $5.02
14 36215-PE1-701 36215-PE1-701 / CASE, DIODE

1 - -
15 36227-PE1-702 36227-PE1-702 / LABEL, CONTROL BOX (NO.2)

1 - -
15 36227-PE1-701 36227-PE1-701 / LABEL, CONTROL BOX (NO.2)

1 - -
15 36227-PE1-721 36227-PE1-721 / LABEL, CONTROL BOX (NO.2)

1 - -
16 93892-04008-08 93892-04008-08 / SCREW-WASHER (4X8)

3 $0.68 $0.48
17 93892-05008-08 93892-05008-08 / SCREW-WASHER (5X8)

12 $0.63 $0.45
18 93892-05010-08 93892-05010-08 / SCREW-WASHER (5X10)

1 $0.68 $0.48
19 93892-05020-08 93892-05020-08 / SCREW-WASHER (5X20)

1 $0.67 $0.47
20 93892-06025-08 93892-06025-08 / SCREW-WASHER (6X25)

3 $0.88 $0.63
21 93905-34620 93905-34620 / SCREW, TAPPING (4X25)

4 - -
