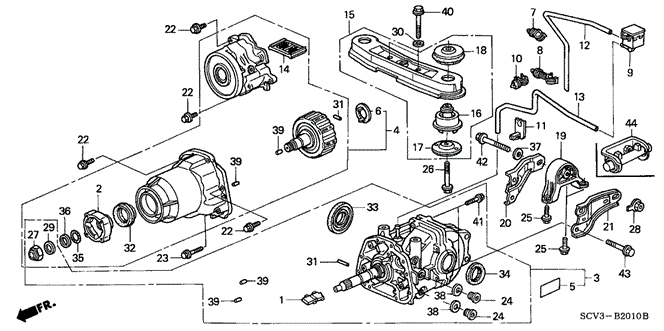

CASE KIT, T.C.D. in CHASSIS/REAR DIFFERENTIAL - MOUNT for 2003 Honda ELEMENT

CASE KIT, T.C.D. in CHASSIS/REAR DIFFERENTIAL - MOUNT for 2003 Honda ELEMENT #1
23
  • BOLT, FLANGE (6X50) - $1.81
13
  • TUBE A, BREATHER - $1.58
28
  • NUT, YOKE (10MM) - $2.78
33
  • OIL SEAL (35X78X8.5) (NOK) - $6.86
42
  • BOLT, FLANGE (10X90) - $1.70
35
  • O-RING (25X2.6) - $3.17
36
  • RING, BACK-UP (25MM) - $3.15
31
  • PIN, OIL PUMP - $1.46
25
  • BOLT, FLANGE (8X16) - $0.32
4
  • CASE KIT, T.C.D. - $1,242.30
10
  • CLAMP, BREATHER TUBE - $1.84
22
  • BOLT, FLANGE (6X28) - $1.43
43
  • BOLT, FLANGE (12X73) - $4.99
  • BOLT, FLANGE (12X65) - $1.70
38
  • WASHER, DRAIN PLUG (20MM) - $0.52
16
  • RUBBER A, RR. DIFFERENTIAL INSULATOR - $29.49
27
  • NUT, FLANGE (24MM) - $6.14
32
  • OIL SEAL (40X56X9) (NOK) - $7.13
14
  • STRAINER (ATF) - $14.18
40
  • BOLT, FLANGE (12X40) - $1.23
2
  • FLANGE, COMPANION - $27.01
22
  • BOLT, FLANGE (6X28) - $1.43
34
  • OIL SEAL (35X50X8.5) (NOK) - $7.13
15
  • MOUNT ASSY. A, RR. DIFFERENTIAL - $97.93
18
  • STRAP A, RR. DIFFERENTIAL MOUNTING - $9.04
1
  • MAGNET, RR. DIFFERENTIAL - $2.97
19
  • RUBBER B, RR. DIFFERENTIAL MOUNTING - $39.21
  • RUBBER B, RR. DIFFERENTIAL MOUNTING - $39.21
26
  • BOLT, FLANGE (10X97) - $1.10
39
  • PIN, DOWEL (6X10) - $0.85
39
  • PIN, DOWEL (6X10) - $0.85
20
  • BRACKET B, R. RR. DIFFERENTIALMOUNTING - $11.52
21
  • BRACKET B, L. RR. DIFFERENTIALMOUNTING - $5.83
41
  • BOLT, FLANGE (8X55) - $0.97
38
  • WASHER, DRAIN PLUG (20MM) - $0.52
30
  • WASHER (12MM) - $2.34
22
  • BOLT, FLANGE (6X28) - $1.43
24
  • BOLT, DRAIN PLUG (20MM) - $6.90
11
  • CLAMP, BREATHER - $2.15
39
  • PIN, DOWEL (6X10) - $0.85
22
  • BOLT, FLANGE (6X28) - $1.43
31
  • PIN, OIL PUMP - $1.46
5
  • LABEL, RR. DIFFERENTIAL INFORMATION (A) - $1.71
3
  • CARRIER SUB-ASSY., RR. DIFFERENTIAL - $431.27
37
  • WASHER, PLAIN (10MM) - $0.72
7
  • CLAMP, BREATHER TUBE (1.0) - $1.81
8
  • CLAMP, BREATHER TUBE (2.0) - $2.15
6
  • COLLAR, RR. PUMP - $6.93
9
  • BOX, BREATHER TUBE - $8.40
24
  • BOLT, DRAIN PLUG (20MM) - $6.90
29
  • WASHER, SPRING (24MM) - $3.82
39
  • PIN, DOWEL (6X10) - $0.85
12
  • TUBE B, BREATHER - $2.05
17
  • PLATE, DIFFERENTIAL MOUNT - $9.88
25
  • BOLT, FLANGE (8X16) - $0.32
No. Part # Part # / Description Qty Req. List Price Price
1 40120-P6R-003 40120-P6R-003 / MAGNET, RR. DIFFERENTIAL

1 $4.20 $2.97
2 40441-P6R-010 40441-P6R-010 / FLANGE, COMPANION

1 $38.15 $27.01
3 41010-P6R-345 41010-P6R-345 / CARRIER SUB-ASSY., RR. DIFFERENTIAL

1 $609.13 $431.27
4 41011-PNZ-307 41011-PNZ-307 / CASE KIT, T.C.D.

1 $1,754.67 $1,242.30
5 41400-PMY-000 41400-PMY-000 / LABEL, RR. DIFFERENTIAL INFORMATION (A)

1 $2.42 $1.71
6 41431-P6R-000 41431-P6R-000 / COLLAR, RR. PUMP

1 $9.78 $6.93
7 41932-PZP-003 41932-PZP-003 / CLAMP, BREATHER TUBE (1.0)

1 $2.55 $1.81
8 41933-PZP-003 41933-PZP-003 / CLAMP, BREATHER TUBE (2.0)

1 $3.03 $2.15
9 41935-PZP-003 41935-PZP-003 / BOX, BREATHER TUBE

1 $11.87 $8.40
10 41936-PDZ-003 41936-PDZ-003 / CLAMP, BREATHER TUBE

1 $2.60 $1.84
11 41936-PZP-003 41936-PZP-003 / CLAMP, BREATHER

1 $3.03 $2.15
12 41937-PZP-000 41937-PZP-000 / TUBE B, BREATHER

1 $2.90 $2.05
13 41938-PZP-000 41938-PZP-000 / TUBE A, BREATHER

1 $2.23 $1.58
14 48940-P6R-000 48940-P6R-000 / STRAINER (ATF)

1 $20.03 $14.18
15 50710-SCW-A02 50710-SCW-A02 / MOUNT ASSY. A, RR. DIFFERENTIAL

1 $138.32 $97.93
16 50711-SCW-A01 50711-SCW-A01 / RUBBER A, RR. DIFFERENTIAL INSULATOR

2 $41.65 $29.49
17 50772-SCW-A01 50772-SCW-A01 / PLATE, DIFFERENTIAL MOUNT

2 $13.95 $9.88
18 50713-SCW-A01 50713-SCW-A01 / STRAP A, RR. DIFFERENTIAL MOUNTING

2 $12.77 $9.04
19 50721-S5C-013 50721-S5C-013 / RUBBER B, RR. DIFFERENTIAL MOUNTING

1 $55.38 $39.21
19 50721-S5C-013 50721-S5C-013 / RUBBER B, RR. DIFFERENTIAL MOUNTING

1 $55.38 $39.21
20 50725-SCW-A01 50725-SCW-A01 / BRACKET B, R. RR. DIFFERENTIALMOUNTING

1 $16.27 $11.52
21 50726-SCW-A02 50726-SCW-A02 / BRACKET B, L. RR. DIFFERENTIALMOUNTING

1 $8.23 $5.83
22 90001-PWT-680 90001-PWT-680 / BOLT, FLANGE (6X28)

7 $2.02 $1.43
23 90001-PWT-730 90001-PWT-730 / BOLT, FLANGE (6X50)

4 $2.55 $1.81
24 90081-PWT-000 90081-PWT-000 / BOLT, DRAIN PLUG (20MM)

2 $9.75 $6.90
25 90166-S87-A00 90166-S87-A00 / BOLT, FLANGE (8X16)

3 $0.45 $0.32
26 90167-SCV-A01 90167-SCV-A01 / BOLT, FLANGE (10X97)

2 $1.55 $1.10
27 90203-PX4-010 90203-PX4-010 / NUT, FLANGE (24MM)

1 $8.67 $6.14
28 90371-S9A-000 90371-S9A-000 / NUT, YOKE (10MM)

1 $3.93 $2.78
29 90403-PL9-000 90403-PL9-000 / WASHER, SPRING (24MM)

1 $5.40 $3.82
30 90553-SL4-000 90553-SL4-000 / WASHER (12MM)

2 $3.30 $2.34
31 90702-P6R-008 90702-P6R-008 / PIN, OIL PUMP

1 $2.07 $1.46
32 91201-PWT-003 91201-PWT-003 / OIL SEAL (40X56X9) (NOK)

1 $10.07 $7.13
33 91202-PWT-003 91202-PWT-003 / OIL SEAL (35X78X8.5) (NOK)

1 $9.68 $6.86
34 91203-PWT-003 91203-PWT-003 / OIL SEAL (35X50X8.5) (NOK)

1 $10.07 $7.13
35 91303-P6R-003 91303-P6R-003 / O-RING (25X2.6)

1 $4.48 $3.17
36 91304-P6R-003 91304-P6R-003 / RING, BACK-UP (25MM)

1 $4.45 $3.15
37 94101-10800 94101-10800 / WASHER, PLAIN (10MM)

1 $1.02 $0.72
38 94109-20000 94109-20000 / WASHER, DRAIN PLUG (20MM)

2 $0.73 $0.52
39 94301-06100 94301-06100 / PIN, DOWEL (6X10)

2 $1.20 $0.85
40 95701-12040-08 95701-12040-08 / BOLT, FLANGE (12X40)

2 $1.73 $1.23
41 95801-08055-08 95801-08055-08 / BOLT, FLANGE (8X55)

6 $1.37 $0.97
42 95801-10090-08 95801-10090-08 / BOLT, FLANGE (10X90)

1 $2.40 $1.70
43 90399-S5A-000 90399-S5A-000 / BOLT, FLANGE (12X73)

2 $7.05 $4.99
43 95801-12065-08 95801-12065-08 / BOLT, FLANGE (12X65)

2 $2.40 $1.70
