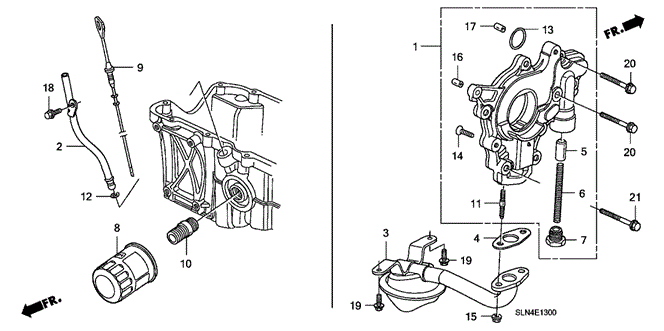

PUMP ASSY., OIL in ENGINE/OIL PUMP - OIL STRAINER for 2008 Honda FIT

PUMP ASSY., OIL in ENGINE/OIL PUMP - OIL STRAINER for 2008 Honda FIT #1
19
  • BOLT, FLANGE (6X14) - $0.63
16
  • PIN, DOWEL (6X10) - $0.85
20
  • BOLT, FLANGE (6X25) - $0.70
15
  • NUT, FLANGE (6MM) - $0.17
17
  • PIN, DOWEL (8X14) - $0.83
14
  • SCREW, FLAT (6X16) - $0.42
10
  • HOLDER, OIL FILTER - $3.46
3
  • STRAINER, OIL - $23.80
13
  • O-RING (24.4X2.4) (NOK) - $1.68
19
  • BOLT, FLANGE (6X14) - $0.63
12
  • O-RING (8.8X1.9) - $1.66
  • O-RING (8.8X1.9) - $1.66
2
  • PIPE, OIL LEVEL - $9.24
6
  • SPRING, RELIEF VALVE - $2.53
11
  • BOLT, STUD (6X28) - $1.82
18
  • BOLT, FLANGE (6X12) - $0.71
20
  • BOLT, FLANGE (6X25) - $0.70
7
  • BOLT, SEALING (18MM) - $3.41
4
  • GASKET, OIL STRAINER - $1.91
9
  • DIPSTICK, OIL - $7.29
1
  • PUMP ASSY., OIL - $96.98
8
  • FILTER, OIL (FILTECH TOYO ROKI)
  • FILTER, OIL (MAHLE TENNEX)
21
  • BOLT, FLANGE (6X35) - $0.73
5
  • VALVE, RELIEF - $8.81
No. Part # Part # / Description Qty Req. List Price Price
1 15100-PWA-003 15100-PWA-003 / PUMP ASSY., OIL

1 $136.98 $96.98
2 15200-PWA-000 15200-PWA-000 / PIPE, OIL LEVEL

1 $13.05 $9.24
3 15220-PWC-000 15220-PWC-000 / STRAINER, OIL

1 $33.62 $23.80
4 15221-PZ1-000 15221-PZ1-000 / GASKET, OIL STRAINER

1 $2.70 $1.91
5 15231-413-020 15231-413-020 / VALVE, RELIEF

1 $12.45 $8.81
6 15232-PHM-003 15232-PHM-003 / SPRING, RELIEF VALVE

1 $3.57 $2.53
7 15233-PFB-003 15233-PFB-003 / BOLT, SEALING (18MM)

1 $4.82 $3.41
8 15400-PLM-A01 15400-PLM-A01 / FILTER, OIL (FILTECH TOYO ROKI)

1 - -
8 15400-PLM-A01 15400-PLM-A01 / FILTER, OIL (MAHLE TENNEX)

1 - -
9 15650-PWA-000 15650-PWA-000 / DIPSTICK, OIL

1 $10.30 $7.29
10 90015-PH1-013 90015-PH1-013 / HOLDER, OIL FILTER

1 $4.88 $3.46
11 90041-PA5-000 90041-PA5-000 / BOLT, STUD (6X28)

2 $2.57 $1.82
12 91308-PH9-000 91308-PH9-000 / O-RING (8.8X1.9)

1 $2.35 $1.66
12 91302-GE0-000 91302-GE0-000 / O-RING (8.8X1.9)

1 $2.35 $1.66
13 91326-PF4-004 91326-PF4-004 / O-RING (24.4X2.4) (NOK)

1 $2.37 $1.68
14 93600-06016-0A 93600-06016-0A / SCREW, FLAT (6X16)

2 $0.60 $0.42
15 94050-06080 94050-06080 / NUT, FLANGE (6MM)

2 $0.23 $0.17
16 94301-06100 94301-06100 / PIN, DOWEL (6X10)

1 $1.20 $0.85
17 94301-08140 94301-08140 / PIN, DOWEL (8X14)

1 $1.17 $0.83
18 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.71
19 95701-06014-08 95701-06014-08 / BOLT, FLANGE (6X14)

2 $0.88 $0.63
20 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

3 $0.98 $0.70
21 95701-06035-08 95701-06035-08 / BOLT, FLANGE (6X35)

4 $1.03 $0.73
