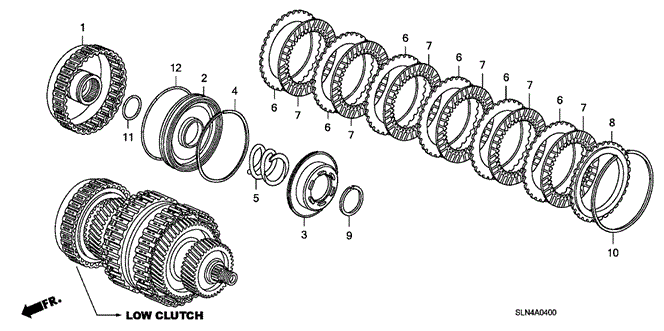

GUIDE, LOW CLUTCH in TRANSMISSION - AUTOMATIC/AT CLUTCH (LOW) for 2008 Honda FIT

GUIDE, LOW CLUTCH in TRANSMISSION - AUTOMATIC/AT CLUTCH (LOW) for 2008 Honda FIT #1
7
  • DISK, CLUTCH - $13.29
4
  • SPRING, CLUTCH WAVE - $6.53
7
  • DISK, CLUTCH - $13.29
12
  • O-RING (100X2.2) (NOK) - $4.24
7
  • DISK, CLUTCH - $13.29
6
  • PLATE, CLUTCH WAVE (1.6MM) - $6.53
10
  • RING, SNAP (114X1.8) - $7.39
2
  • PISTON, CLUTCH - $31.46
1
  • GUIDE, LOW CLUTCH - $106.98
7
  • DISK, CLUTCH - $13.29
6
  • PLATE, CLUTCH WAVE (1.6MM) - $6.53
6
  • PLATE, CLUTCH WAVE (1.6MM) - $6.53
8
  • PLATE, CLUTCH END (9) (2.9MM) - $10.82
  • PLATE, CLUTCH END (8) (2.8MM) - $10.82
  • PLATE, CLUTCH END (4) (2.4MM) - $10.82
  • PLATE, CLUTCH END (1) (2.1MM) - $10.82
  • PLATE, CLUTCH END (7) (2.7MM) - $10.82
  • PLATE, CLUTCH END (6) (2.6MM) - $10.82
  • PLATE, CLUTCH END (2) (2.2MM) - $10.82
  • PLATE, CLUTCH END (5) (2.5MM) - $10.82
  • PLATE, CLUTCH END (3) (2.3MM) - $10.82
6
  • PLATE, CLUTCH WAVE (1.6MM) - $6.53
7
  • DISK, CLUTCH - $13.29
6
  • PLATE, CLUTCH WAVE (1.6MM) - $6.53
5
  • SPRING, CLUTCH RETURN - $9.66
11
  • O-RING (31.4X2.2) - $1.78
7
  • DISK, CLUTCH - $13.29
6
  • PLATE, CLUTCH WAVE (1.6MM) - $6.53
9
  • CIRCLIP (OUTER) (36MM) - $1.42
3
  • RETAINER, RETURN SPRING - $17.82
No. Part # Part # / Description Qty Req. List Price Price
1 22510-RPC-003 22510-RPC-003 / GUIDE, LOW CLUTCH

1 $151.10 $106.98
2 22521-RPC-003 22521-RPC-003 / PISTON, CLUTCH

1 $44.43 $31.46
3 22533-RPC-003 22533-RPC-003 / RETAINER, RETURN SPRING

1 $25.17 $17.82
4 22536-RPC-003 22536-RPC-003 / SPRING, CLUTCH WAVE

1 $9.22 $6.53
5 22541-RPC-003 22541-RPC-003 / SPRING, CLUTCH RETURN

1 $13.65 $9.66
6 22543-RPC-003 22543-RPC-003 / PLATE, CLUTCH WAVE (1.6MM)

6 $9.22 $6.53
7 22544-RPC-003 22544-RPC-003 / DISK, CLUTCH

6 $18.77 $13.29
8 22559-RPC-003 22559-RPC-003 / PLATE, CLUTCH END (9) (2.9MM)

1 $15.28 $10.82
8 22558-RPC-003 22558-RPC-003 / PLATE, CLUTCH END (8) (2.8MM)

1 $15.28 $10.82
8 22554-RPC-003 22554-RPC-003 / PLATE, CLUTCH END (4) (2.4MM)

1 $15.28 $10.82
8 22551-RPC-003 22551-RPC-003 / PLATE, CLUTCH END (1) (2.1MM)

1 $15.28 $10.82
8 22557-RPC-003 22557-RPC-003 / PLATE, CLUTCH END (7) (2.7MM)

1 $15.28 $10.82
8 22556-RPC-003 22556-RPC-003 / PLATE, CLUTCH END (6) (2.6MM)

1 $15.28 $10.82
8 22552-RPC-003 22552-RPC-003 / PLATE, CLUTCH END (2) (2.2MM)

1 $15.28 $10.82
8 22555-RPC-003 22555-RPC-003 / PLATE, CLUTCH END (5) (2.5MM)

1 $15.28 $10.82
8 22553-RPC-003 22553-RPC-003 / PLATE, CLUTCH END (3) (2.3MM)

1 $15.28 $10.82
9 90602-RPC-003 90602-RPC-003 / CIRCLIP (OUTER) (36MM)

1 $2.00 $1.42
10 90605-PA9-000 90605-PA9-000 / RING, SNAP (114X1.8)

1 $10.43 $7.39
11 91302-RPC-003 91302-RPC-003 / O-RING (31.4X2.2)

1 $2.52 $1.78
12 91303-PA9-004 91303-PA9-004 / O-RING (100X2.2) (NOK)

1 $5.98 $4.24
